| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

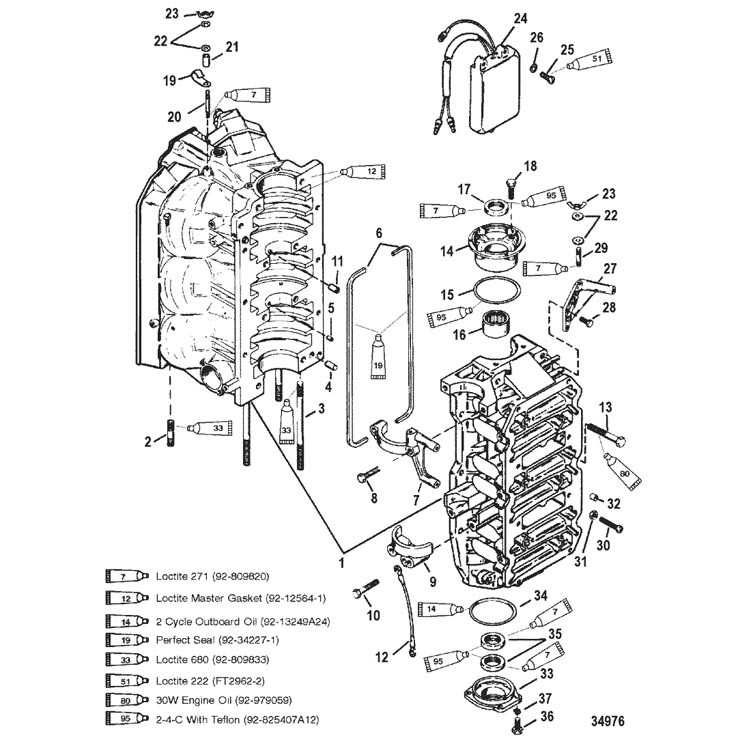

| 1 |
884-9763T23 |
|
|
|
|
CYLINDER BLOCK |
1 |
|
No Longer Available |
| 1 |
884-9763T61 |
|
|
|
|
CYLINDER BLOCK |
1 |
|
|
| 2 |
16-8M0034443 |
|
|
|
|
STUD, (.375-16/.375-24 x 2.040) |
6 |
847530 |
|
| 3 |
16-8M0034437 |
|
|
|
|
STUD, (.375-16/.375-24 x 5.750) |
4 |
847532 |
|
| 3 |
16-670654 |
|
|
|
|
STUD, (.375 x 5.620) |
2 |
670653 |
|
| 3 |
16-8M0034454 |
|
|
|
|
STUD, (.375 x 6.870) |
2 |
784384 |
|
| 4 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 5 |
17-8M0036405 |
|
|
|
|
PIN, Bearing Race |
2 |
67296 |
|
| 6 |
27-11338 |
|
|
|
|
GASKET |
2 |
|
|
| 7 |
8M0088723 |
|
|
|
|
COVER, Upper |
1 |
42249 |
|
| 8 |
10-828213 |
|
|
|
|
SCREW, (.312-18 x 1.500) Hex Flange |
2 |
|
|
| 9 |
76867 |
|
|
|
|
COVER, Lower |
1 |
|
|
| 10 |
10-828214 |
|
|
|
|
SCREW, (.312-18 x 2.00) Hex Flange |
2 |
|
|
| 11 |
23-99448 |
|
|
|
|
BUSHING |
1 |
|
|
| 12 |
84-88807A20 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
|
| 13 |
10-66717 |
|
|
|
|
SCREW, (.375-16 x 3.250) |
8 |
|
|
| 13 |
10-74824 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
6 |
|
|
| 14 |
1159-858521T1 |
|
|
|
|
END CAP ASSEMBLY, Upper |
1 |
9642A1 |
|
| 15 |
25-54029 |
|
|
|
|
O-RING, (2.800 x .103) |
1 |
|
|
| 16 |
31-16756A4 |
|
|
|
|
BEARING KIT |
1 |
|
|
| 17 |
26-41953 |
|
|
|
|
SEAL |
1 |
|
|
| 18 |
10-30225 |
|
|
|
|
SCREW AND LOCKWASHER, (.312-18 x 1.00) |
4 |
69034 |
|
| 19 |
54-814634 |
|
|
|
|
CLAMP |
1 |
|
|
| 20 |
16-15094 |
|
|
|
|
STUD, (.190-32 x 1.870) |
1 |
|
|
| 21 |
23-67269 |
|
|
|
|
SPACER |
1 |
|
|
| 22 |
12-49221 |
|
|
|
|
WASHER, (.187 x .500 x .062) Neoprene |
3 |
|
|
| 23 |
11-816874 |
|
|
|
|
WING NUT, (#10-32) |
3 |
|
|
| 24 |
87076A10 |
|
|
|
|
IDLE SPEED CONTROL |
1 |
|
|
| 25 |
10-690201 |
|
|
|
|
SCREW, (#10-32 x .875) |
3 |
69020 |
|
| 26 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
3 |
|
|
| 27 |
422482 |
|
|
|
|
BRACKET |
1 |
42248 |
|
| 28 |
10-49668 |
|
|
|
|
SCREW, (.250-20 x .750) |
2 |
|
|
| 29 |
16-8M0034435 |
|
|
|
|
STUD, (#10-32 x 1.00) |
2 |
15093 |
|
| 30 |
10-64022 |
|
|
|
|
SCREW, (.250-20 x 2.125) |
1 |
|
|
| 31 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 32 |
26852 |
|
|
|
|
CAP, Nylon |
1 |
|
|
| 33 |
1156-7809T1 |
|
|
|
|
END CAP ASSEMBLY |
1 |
7809A1 |
|
| 34 |
25-62700 |
|
|
|
|
O-RING, (3.237 x .103) |
1 |
|
|
| 35 |
26-41953 |
|
|
|
|
SEAL |
2 |
|
|
| 36 |
10-28636 |
|
|
|
|
SCREW, (.250-20 x .750) |
4 |
|
|
| 37 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
4 |
|
|
| - |
27-823142A98 |
|
|
|
|
GASKET SET, Engine |
1 |
|
|
| - |
809839T94 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
809839A94 |
|
| - |
808603T94 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
808603A94 |
No Longer Available |
