225 EFI Pro Max and Super Mag - Serial 0G610104 Thru 0G856999 - Top Cowl

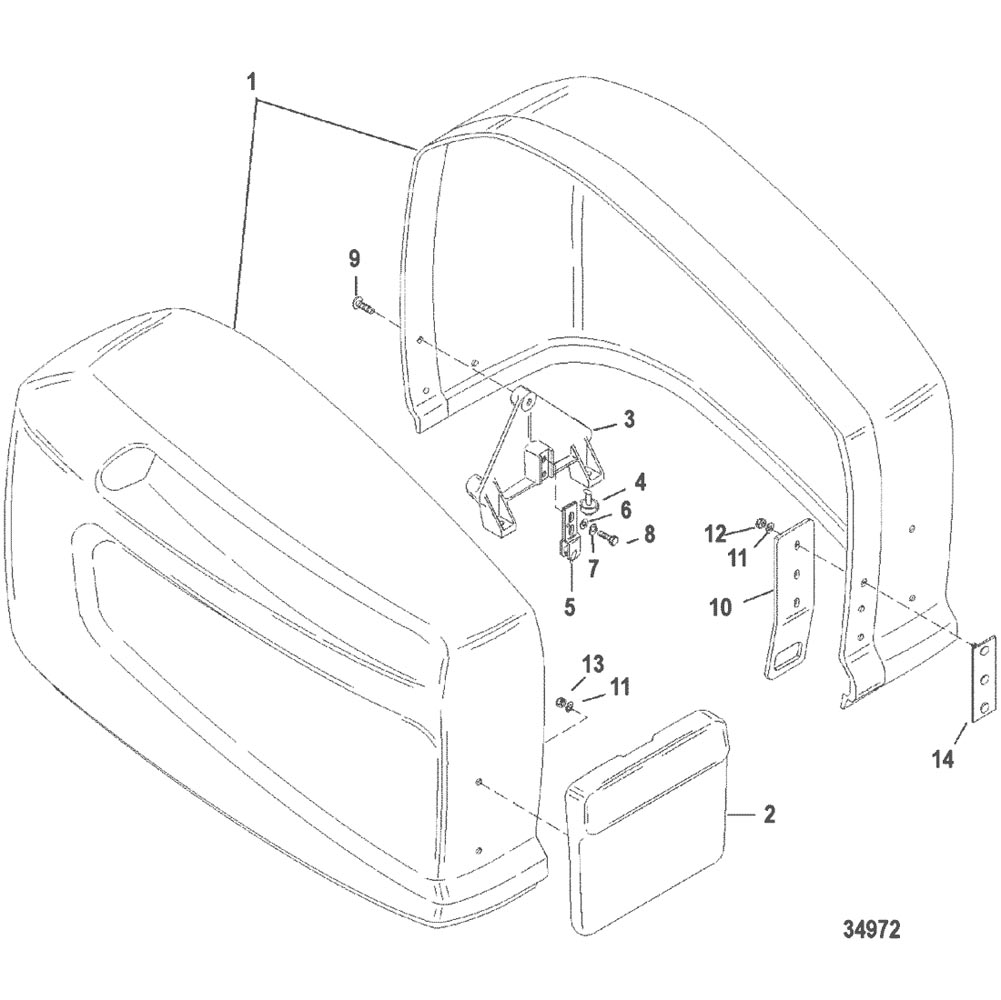

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft-Counter/Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 104-849203T3 | TOP COWL ASSEMBLY | 1 | No Longer Available | |||||
| 1 | 104-849203A4 | TOP COWL ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 105-849209A3 | SHIELD | 1 | ||||||
| 2 | 105-849209A4 | SHIELD | 1 | ||||||
| 3 | 848808 | BRACKET, Latch | 1 | ||||||
| 4 | 849374 | BUMPER | 2 | ||||||
| 5 | 893763 | BRACKET ASSEMBLY, Latch Roller | 1 | 18173 | |||||
| 6 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 7 | 13-53166 | LOCKWASHER, (.312) | 2 | ||||||
| 8 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 9 | 10-849011 | SCREW, (.250-20 x .750) | 4 | ||||||
| 10 | 848811 | LATCH | 1 | No Longer Available | |||||
| 11 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 7 | ||||||
| 12 | 11-8267098 | NUT, (.250-20) | 3 | 56374 | |||||
| 13 | 11-814101 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| 14 | 849179 | PLATE | 1 | ||||||
| - | 37-849537A9 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849537A10 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849537A8 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849537A11 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849543A7 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849543A8 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849543A9 | DECAL SET | 1 | No Longer Available |
