225 EFI Pro Max and Super Mag - Serial 0G610104 Thru 0G856999 - Wiring Harness/Starter Solenoid

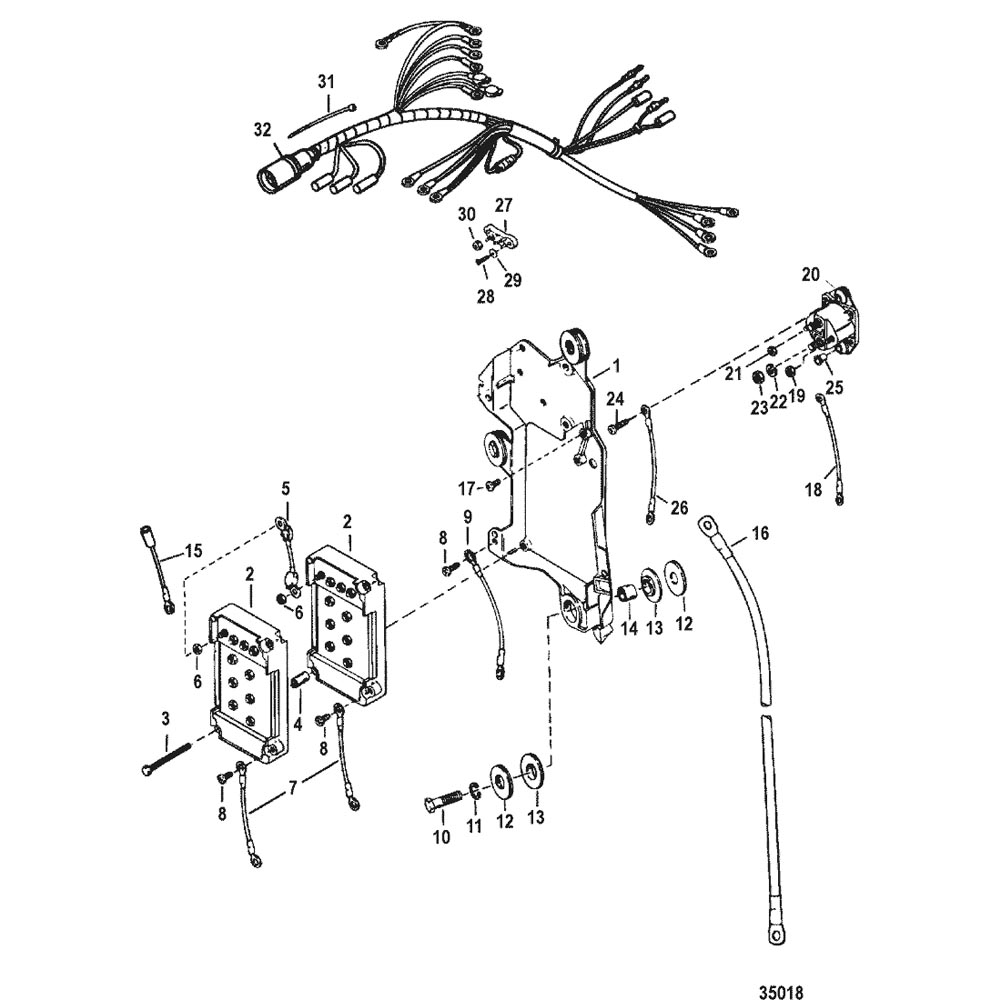

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 434292         IGNITION PLATE 1
2 332-7778A12   676-9-25100     SWITCHBOX ASSEMBLY 2
3 10-13669         SCREW, (#12-24 x 2.00) 2 No Longer Available
4 23-94453         BUSHING 2 No Longer Available
5 84-62310A2         CABLE ASSEMBLY 1
6 11-45076         NUT, (#10-32) Brass 20
7 84-60871A10         WIRE ASSEMBLY 2
8 10-878607         SCREW, (#10-16 x .380) 3 817626
9 84-65999A3         CABLE ASSEMBLY, Black 1
10 10-60411         SCREW, (.312-18 x 1.250) 3
11 13-26993         LOCKWASHER, (.312) 3
12 12-36042         WASHER 6
13 12-67264         WASHER, (Rubber) 6
14 23-67268         BUSHING 3
15 84-91865A1         CABLE ASSEMBLY 1 No Longer Available
15 84-88528A2         CABLE ASSEMBLY 1 No Longer Available
16 84-88439A34         CABLE ASSEMBLY, Positive - Battery 1 88439A23
16 84-88439A24         CABLE ASSEMBLY, Negative - Battery 1
17 10-87926         SCREW, (#10-32 x .500) 1
18 84-93388A14         CABLE ASSEMBLY 1 93388A7
19 11-45076         NUT, (#10-32) Brass 4
20 89-817109A2         SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) 1
21 11-45076         NUT, (#10-32) Brass 2
22 13-53166         LOCKWASHER, (.312) 2
23 11-68292         NUT, (.312-18) 2
24 10-455611         SCREW, (.250-20 x 1.12) 2 45561
25 23-818968         BUSHING 2
26 84-65999A2         CABLE ASSEMBLY, Black 1
27 86-194372         TERMINAL BLOCK 1 No Longer Available
28 10-38055         SCREW, (.190-32 x .620) 2
29 12-89302         WASHER, (.203 x .406 x .040) 2
30 11-45076         NUT, (#10-32) Brass 2
31 54-816311T         TIE STRAP, (8.00 Inches) AR 816311
32 84-826730A4         HARNESS ASSEMBLY, Engine Wiring 1
