| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

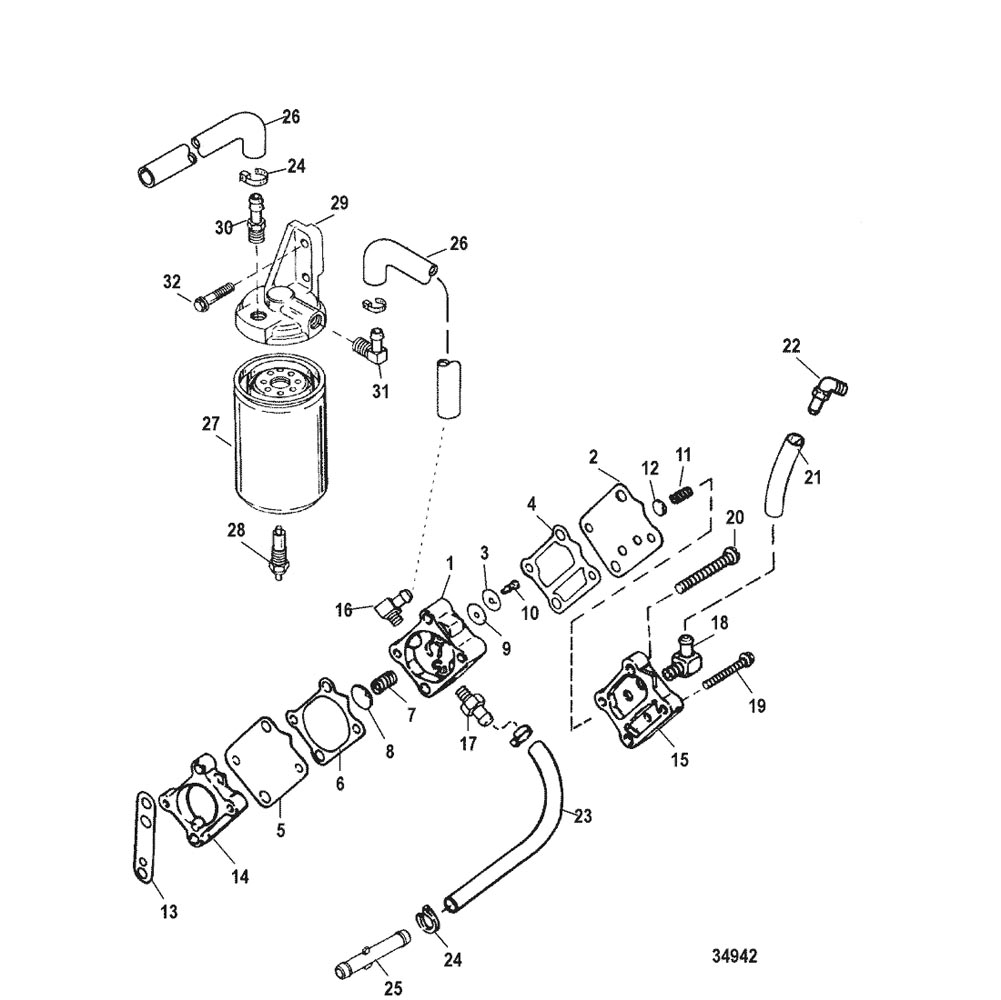

| 1 |
14360T75 |
|
|
|
|
PUMP ASSEMBLY, Fuel |
1 |
14360A53 |
|
| 2 |
21-857005A1 |
|
|
|
|
DIAPHAGM KIT |
1 |
42990A10 |
|
| 3 |
NSS |
|
|
|
|
Check Valve-Rubber |
2 |
|
|
| 4 |
NSS |
|
|
|
|
Gasket-Boost |
1 |
|
|
| 5 |
NSS |
|
|
|
|
Diaphragm |
2 |
|
|
| 6 |
NSS |
|
|
|
|
Gasket-Pulse |
1 |
|
|
| 7 |
NSS |
|
|
|
|
Spring |
1 |
|
|
| 8 |
NSS |
|
|
|
|
Cap |
1 |
|
|
| 9 |
NSS |
|
|
|
|
Check Valve |
2 |
|
|
| 10 |
NSS |
|
|
|
|
Retainer |
2 |
|
|
| 11 |
NSS |
|
|
|
|
Spring |
1 |
|
|
| 12 |
NSS |
|
|
|
|
Cap |
1 |
|
|
| 13 |
27-987691 |
|
|
|
|
GASKET, Base |
1 |
|
|
| 14 |
144303 |
|
|
|
|
BASE |
1 |
|
|
| 15 |
987752 |
|
|
|
|
PLATE |
1 |
|
|
| 16 |
22-996642 |
|
|
|
|
ELBOW |
1 |
996641 |
|
| 17 |
22-291112 |
|
|
|
|
CONNECTOR |
1 |
29111 |
|
| 18 |
22-433351 |
|
|
|
|
CONNECTOR, 90 Degree (.125-27) Nylon |
1 |
43335 |
|
| 19 |
10-82104540 |
|
|
|
|
SCREW, (M5 x 40) |
2 |
|
|
| 20 |
10-16452 |
|
|
|
|
SCREW, (#12-24 x 2.00) |
2 |
|
|
| 21 |
32-9912878 |
|
|
|
|
HOSE, (.187) (26.00 Inches Bulk) (7-1/2 IN.) |
1 |
|
|
| 22 |
22-997511 |
|
|
|
|
FITTING, (.0625-27) Brass |
1 |
99751 |
|
| 23 |
32-8M0108349 |
|
|
|
|
TUBING, (28.00 Inches Bulk) (13-1/2 IN.) |
1 |
83075780 |
|
| 24 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
816311 |
|
| 25 |
22-822769 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 26 |
32-1350385 |
|
|
|
|
TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.) |
2 |
|
|
| 27 |
35-18458Q4 |
|
|
|
|
FILTER KIT |
1 |
18458A4 |
|
| 28 |
8285861 |
|
|
|
|
PROBE |
1 |
828586 |
|
| 29 |
13170A3 |
|
|
|
|
BASE |
1 |
|
|
| 30 |
22-89771Q2 |
|
|
|
|
CONNECTOR, (.250-18) (STRAIGHT) |
1 |
897712 |
|
| 31 |
22-136071 |
|
|
|
|
ELBOW |
1 |
|
|
| 32 |
10-455611 |
|
|
|
|
SCREW, (.250-20 x 1.12) |
2 |
45561 |
|
| - |
27-813859A95 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809430T01 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
809430T95 |
|
