4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - FUEL PUMP AND FUEL FILTER

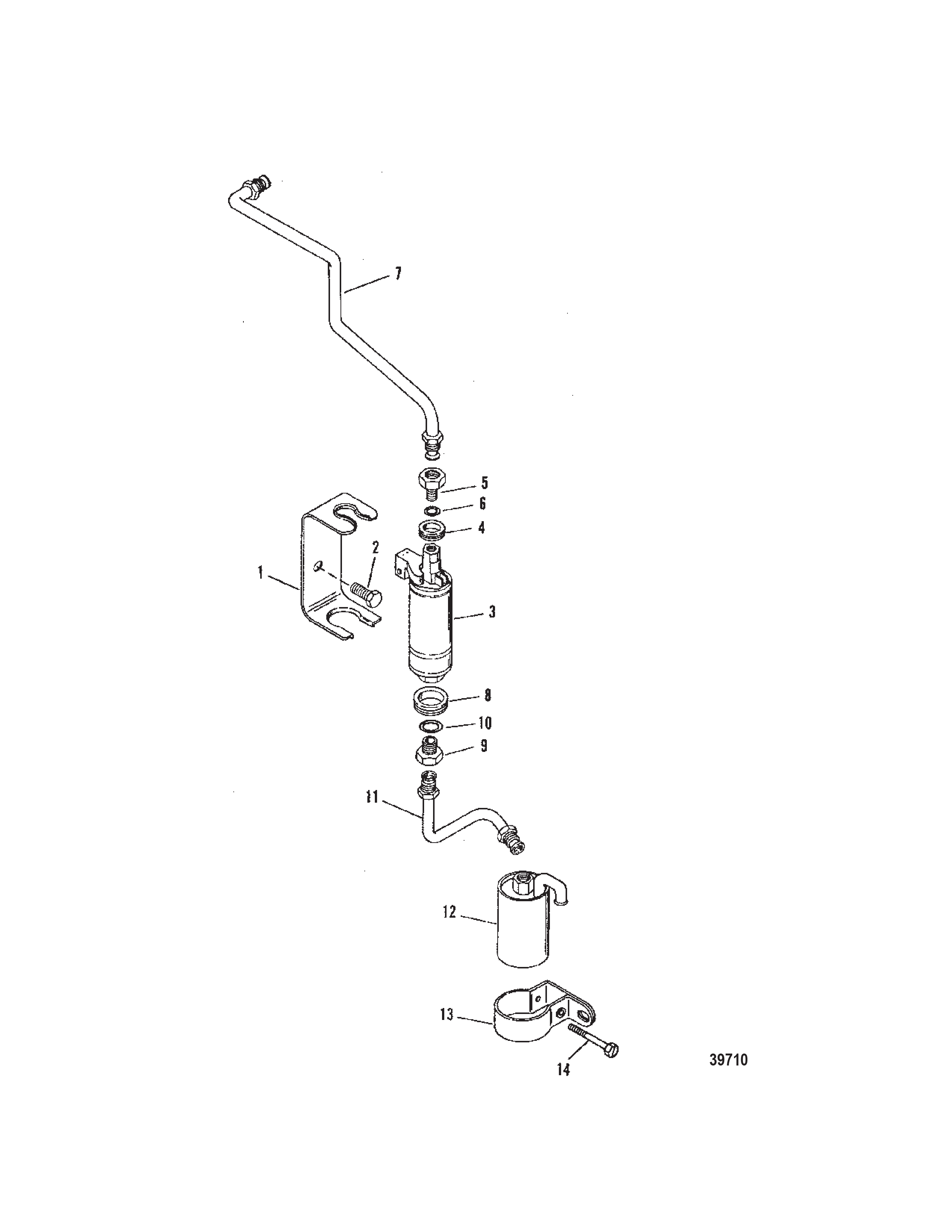

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 805030T | BRACKET Fuel Pump | 1 | ||
| 2 | 0010 | 98259 | SCREW (.375-16 x .500) | 1 | ||
| 3 | 0000 | 805656A2 | PUMP ASSEMBLY Fuel | 1 | ||
| - | 0000 | 805616A1 | FILTER KIT RFI | 1 | ||
| 4 | 0025 | OEM: 525-25-817491 | GROMMET (.56 Inside Diameter) | 1 | ||
| 5 | 0022 | OEM: 525-22-805027A1 | FITTING ASSEMBLY | 1 | ||
| 6 | 0025 | OEM: 525-25-805063 | O-RING (.301 x .070) | 1 | ||
| 7 | 0032 | OEM: 525-32-805029T | LINE Fuel (2 BARREL) | 1 | ||
| 7 | 0032 | 805028T | LINE Fuel (4 BARREL) | 1 | ||
| 8 | 0025 | OEM: 525-25-13467 | GROMMET (.88 Inside Diameter) | 1 | ||
| 9 | 0022 | OEM: 525-22-805026A1 | FITTING | 1 | ||
| 10 | 0025 | OEM: 525-25-805062 | O-RING (.530 x .082) | 1 | ||
| 11 | 0032 | 805032T | LINE Fuel | 1 | ||
| 12 | 0035 | 805031T | FILTER Fuel | 1 | ||
| 13 | 0000 | 65970T | BRACKET | 1 | ||
| 14 | 0010 | 41408 | SCREW (#10-32 x 1.50) | 1 |
