4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - WIRING HARNESS AND ELECTRICAL COMPONENTS

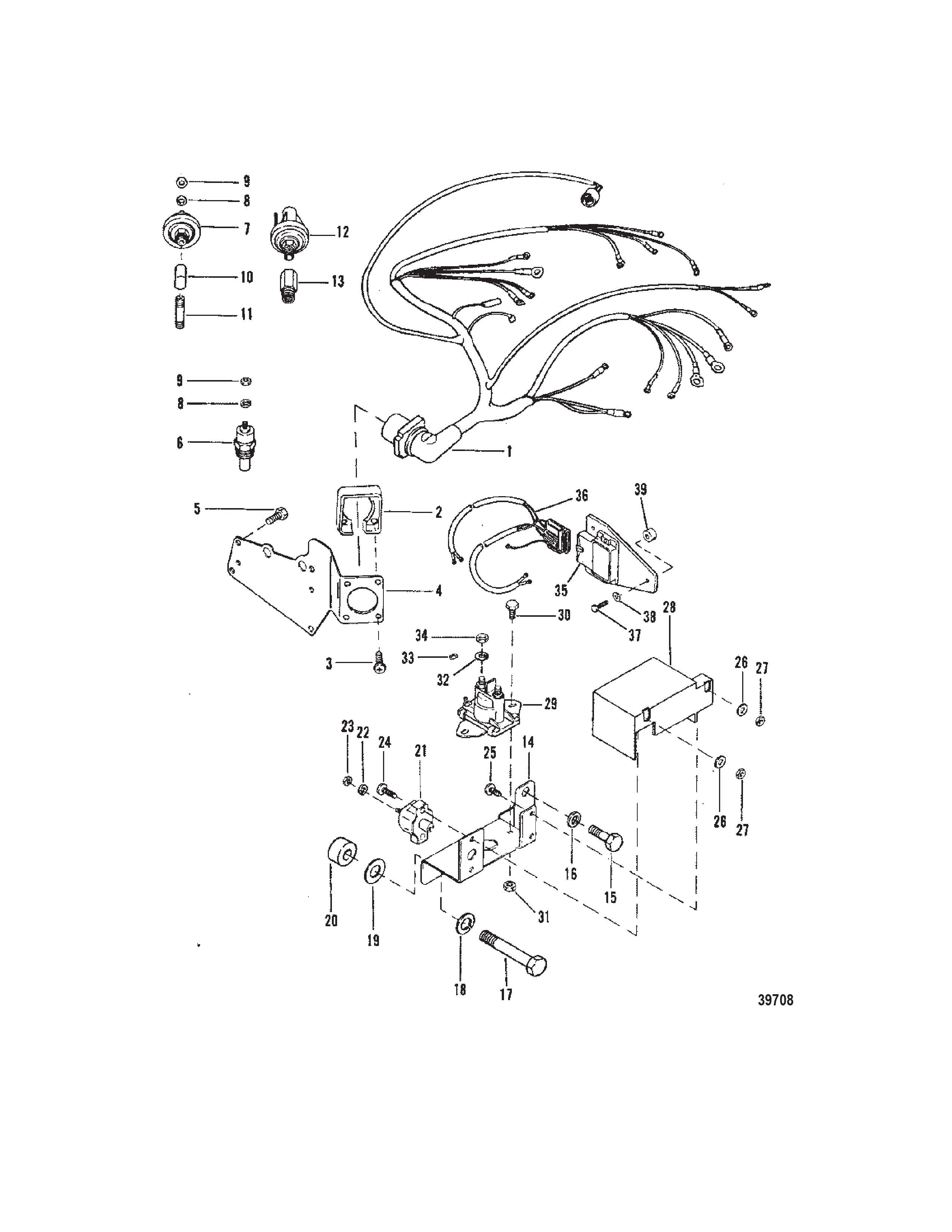

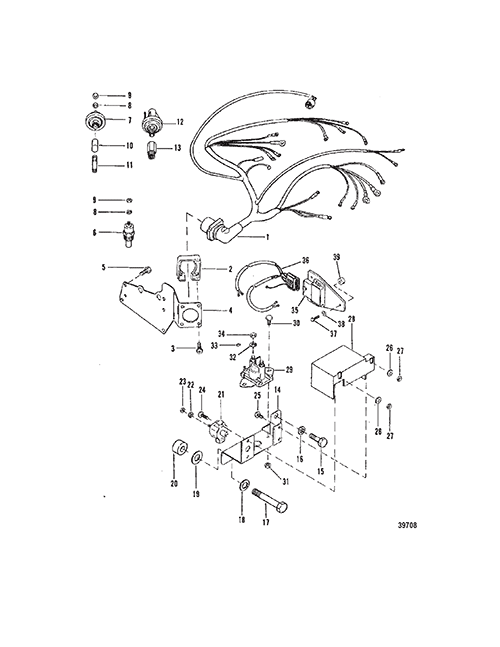

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0084 OEM: 525-84-99510A13 HARNESS ASSEMBLY   1
2 0000 OEM: 525-26079A2 PLATE KIT Wire Harness Mount   1
3 0010 OEM: 525-10-15001 SCREW (#8-16 x .875)   4
4 0000 98493A2 BRACKET   1
5 0010 OEM: 525-10-65746 SCREW (.250-20 x .750)   3
6 0000 97257A1 SENDER ASSEMBLY Water Temperature   1
6 0000 49734A1 SENDER ASSEMBLY Water Temperature (DUAL)   OPT
7 0000 90806 SENDER Oil Pressure   1
7 0000 37293 SENDER ASSEMBLY Oil Pressure (DUAL)   OPT
8 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
9 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
10 0022 46932 ELBOW   1
11 0022 42554 NIPPLE   1
12 0087 805024 SWITCH Oil Pressure   1
13 0022 18021 FITTING   1
14 0000 41170T BRACKET   1
15 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
16 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   1
17 0010 OEM: 525-10-37612, GLM: 700-21755 SCREW (.375-16 x 1.250)   1
18 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   1
19 0012 OEM: 525-12-20572 WASHER (.390 x .750 x .093)   1
20 0023 OEM: 525-23-57369 SPACER   1
21 0088 11178 BREAKER Circuit - 50 Ampere   1
22 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
23 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
24 0010 45862 SCREW (#10-32 x .875)   2
25 0010 71405 SCREW (#10-32 x .440)   1
26 0012 OEM: 525-12-56681 WASHER (.203 x .500 x .032)   2
27 0011 OEM: 525-11-61356 NUT (#10-32) Reduced Hex   3
28 0085 OEM: 525-85-96819T INSULATOR   1
29 0089 96054 SOLENOID ASSEMBLY Starter   1
30 0010 47910 SCREW (1/4-28 x 5/8) (5/8")   2
31 0011 20088 NUT   2
32 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel   2
33 0011 OEM: 525-11-26419 NUT (#8-32) Brass   2
34 0011 OEM: 525-11-94330 NUT (.250-20) Brass   2
35 0000 15247A1 IGNITION AMPLIFIER   1
36 0084 15275A1 HARNESS ASSEMBLY   1
37 0010 OEM: 525-10-76630 SCREW (.250-20 x 1.00)   3
38 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel   3
39 0023 92152 SPACER (.27 x .75 x .38)   3
