4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - OIL PAN AND OIL PUMP

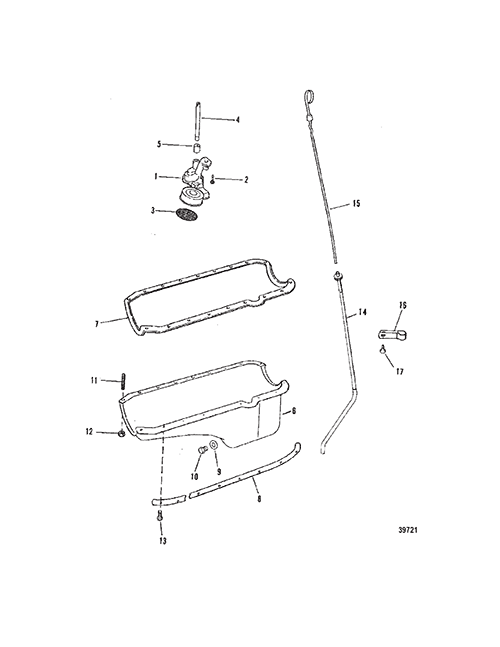

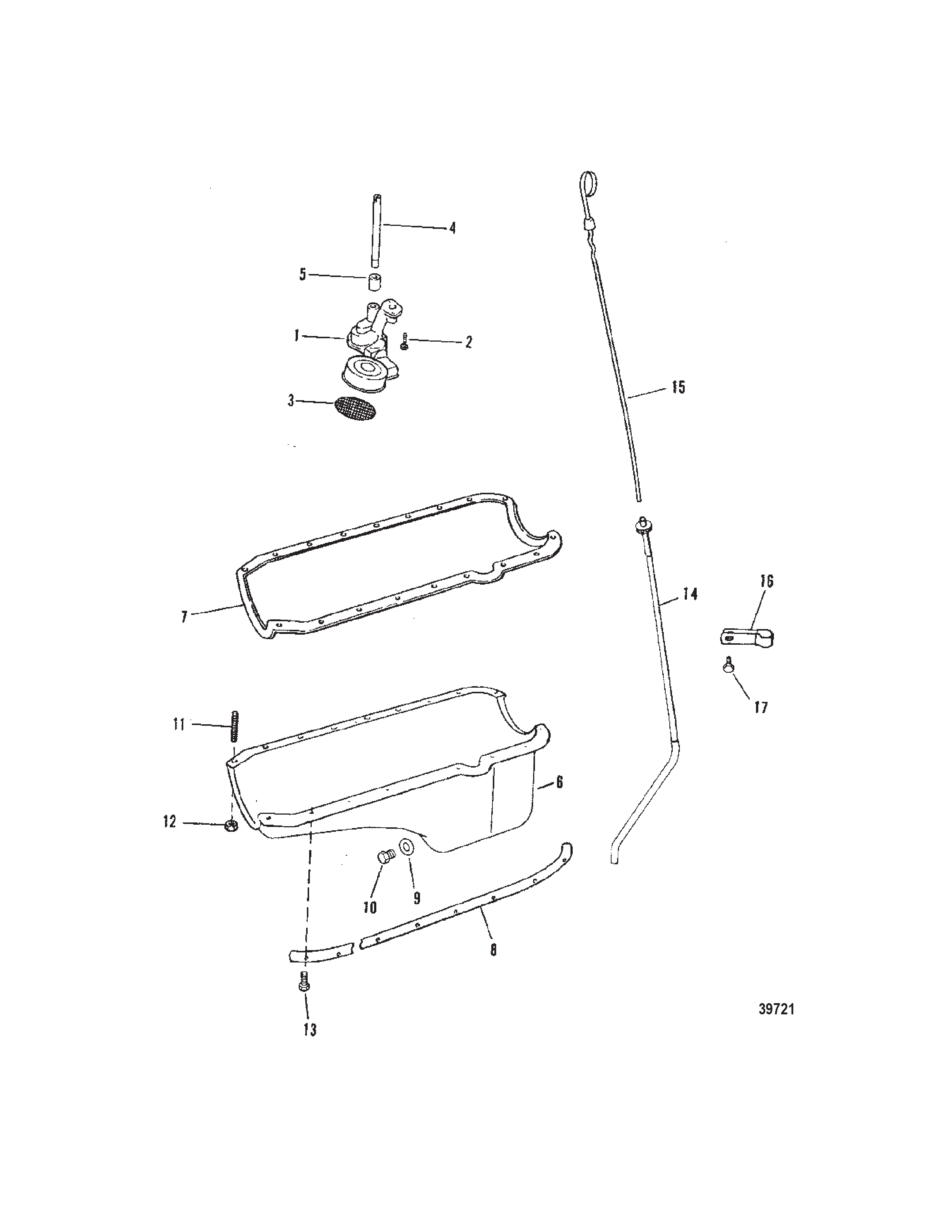

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 17617 | PUMP Oil | 1 | ||
| 2 | 0010 | OEM: 525-10-17346 | SCREW | 1 | ||
| 3 | 0000 | 35354 | SCREEN ASSEMBLY | 1 | ||
| 4 | 0000 | OEM: 525-36184 | SHAFT | 1 | ||
| 5 | 0023 | OEM: 525-23-36183 | RETAINER | 1 | ||
| 6 | 0000 | 14244 | PAN Oil | 1 | ||
| 7 | 0027 | 14247 | GASKET SET | 1 | [1] | |
| 8 | 0000 | 14245 | REINFORCEMENT (RIGHT) | 1 | ||
| 8 | 0000 | 14246 | REINFORCEMENT (LEFT) | 1 | ||
| 9 | 0027 | 49955 | GASKET Drain | 1 | [1] | |
| 10 | 0010 | OEM: 525-10-49956 | SCREW Drain | 1 | ||
| 11 | 0016 | OEM: 525-16-11989 | STUD (.312-18 x 1.6718) | 4 | ||
| 12 | 0011 | OEM: 525-11-11971 | NUT (.312-18) | 4 | ||
| 13 | 0010 | OEM: 525-10-72607 | SCREW (.250-20 x .375) | 12 | ||
| 14 | 0000 | OEM: 525-12117A5 | TUBE | 1 | ||
| 15 | 0000 | 41092T1 | GAUGE Oil Level (DIPSTICK) | 1 | ||
| 16 | 0054 | 15754 | CLIP | 1 | ||
| 17 | 0010 | OEM: 525-10-98253 | SCREW (.250-20 x .500) | 1 |
PART NOTES:
[1] - 11977A92 GASKET SET, ENGINE OVERHAUL
