4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - REMOTE OIL FILTER

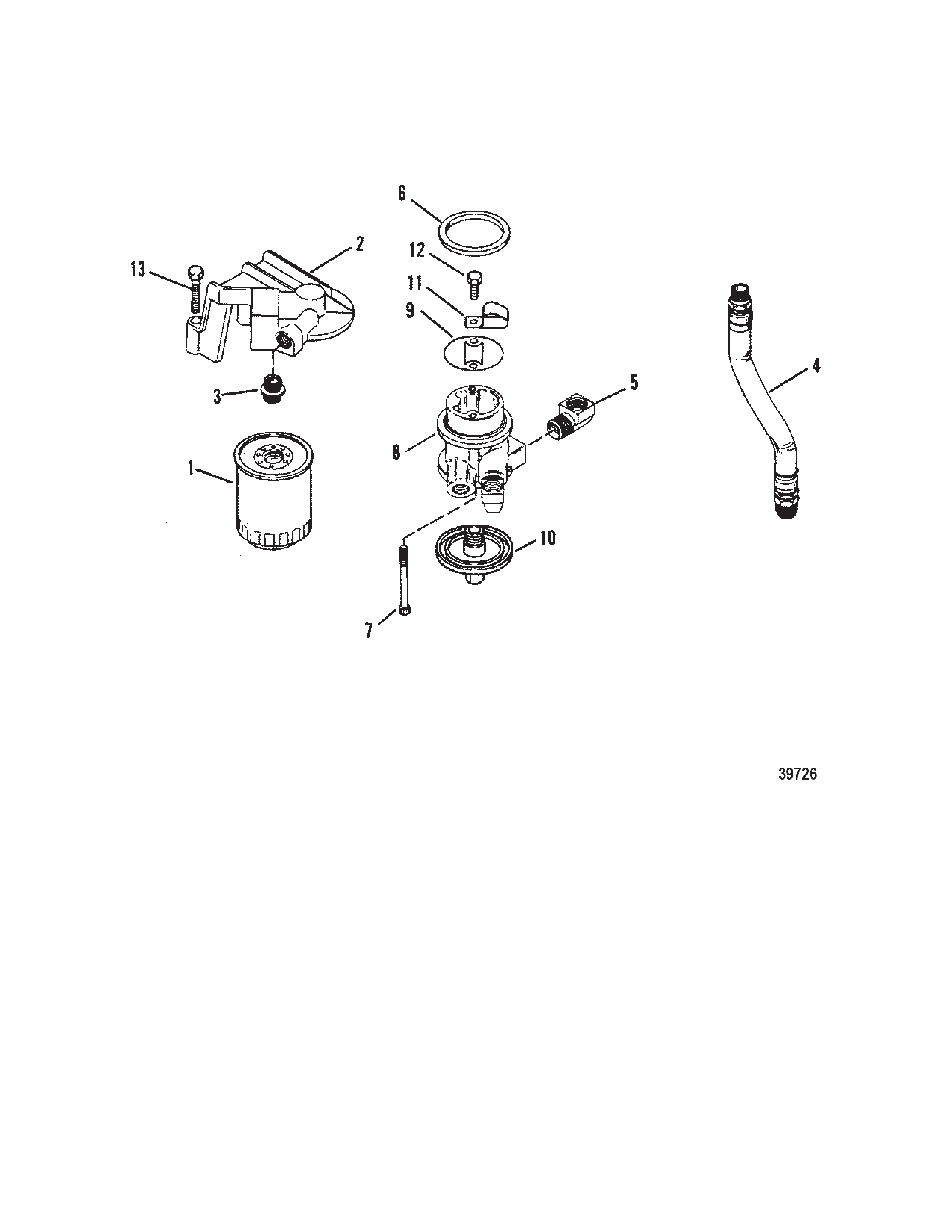

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 14957 | FILTER Oil | 1 | [1] | |
| 2 | 0000 | OEM: 525-814420A5 | BRACKET | 1 | ||
| 3 | 0022 | OEM: 525-22-814822 | FITTING | 1 | ||
| 4 | 0032 | OEM: 525-32-9235759 | HOSE (34") | 2 | ||
| 4 | 0032 | OEM: 525-32-9235761 | HOSE (36.00 Inches) | 2 | ||
| 5 | 0022 | 16781 | ELBOW (90 DEGREES) | 2 | ||
| 6 | 0027 | OEM: 525-27-16779 | GASKET | 2 | ||
| 7 | 0010 | 15853 | SCREW (.312-18 x 18 x 3.00) | 2 | ||
| 8 | 0000 | 16521T | ADAPTER | 1 | ||
| 9 | 0027 | OEM: 525-27-814896 | GASKET | 1 | ||
| 10 | 0000 | 15820T | COVER | 1 | ||
| 11 | 0054 | OEM: 525-54-16962 | CLAMP | 1 | ||
| 12 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 13 | 0010 | 44387 | SCREW (.376-16 x 6.750) | 2 |
PART NOTES:
[1] - Alternate part numbers:
14957Service Part
802885QQS
802885TMPP
