4.3LH (GEN +) (4 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Engine Mounting

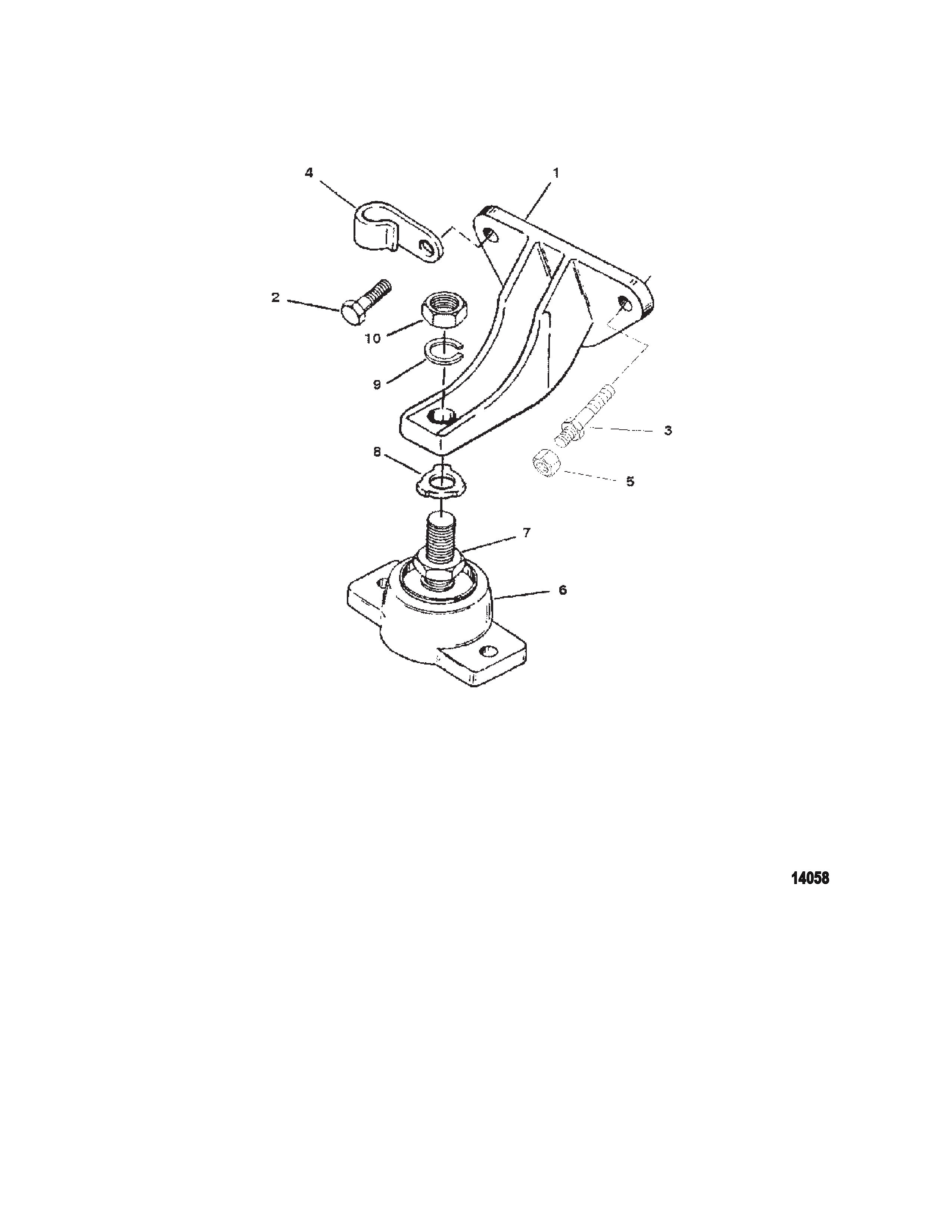

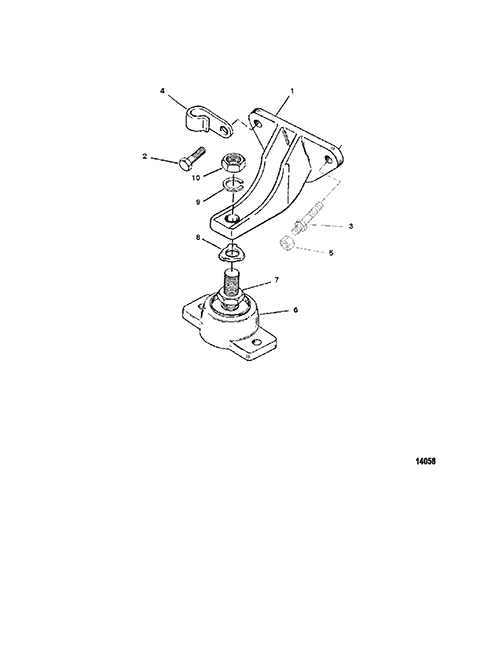

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Brackets (Mando)
- Carburetor (Mercarb - Two Barrel)
- Carburetor (Weber)
- Carburetor And Throttle Linkage (2 Barrel)
- Carburetor And Throttle Linkage (Four Barrel)
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Decals
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhast Manifold And Exhaust Elbow (Two Piece)
- Exhaust Manifold (One Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Serpentine Belts (S-N 0L010044 thru 0L618999)
- Serpentine Belts S-N 0L619000 And Above
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 and SAV1)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-79550A1 | BRACKET | 2 | ||
| 2 | 0010 | OEM: 525-10-68101 | SCREW (.375-16 x 1.375) | (With Out Remote Oil) | 4 | |
| 2 | 0010 | OEM: 525-10-40001195 | SCREW (M10 x 30) | (With Out Remote Oil) | 4 | |
| 3 | 0016 | 805357 | STUD (.375-16 x 2.130) | (With Out Remote Oil) | 2 | |
| 3 | 0016 | OEM: 525-16-861580 | STUD (Metic-Double Ended) | (With Out Remote Oil) | 2 | |
| 4 | 0054 | OEM: 525-54-92850 | CLAMP | (With Out Remote Oil) | 1 | |
| 2 | 0010 | OEM: 525-10-68101 | SCREW (.375-16 x 1.375) | (With Remote Oil) | 3 | |
| 2 | 0010 | OEM: 525-10-40001195 | SCREW (M10 x 30) | (With Remote Oil) | 4 | |
| 3 | 0016 | 805357 | STUD (.375-16 x 2.130) | (With Remote Oil) | 3 | |
| 3 | 0016 | OEM: 525-16-861580 | STUD (Metric-Double Ended) | (With Remote Oil) | 2 | |
| 4 | 0054 | OEM: 525-54-816398 | CLIP | (With Remote Oil) | 1 | |
| 5 | 0011 | OEM: 525-11-860069 | NUT (.375-16) | 1 | ||
| 5 | 0011 | OEM: 525-11-4013610 | NUT (M10) Stainless Steel | 1 | ||
| 6 | 0000 | OEM: 530-66284A2 | BASE ASSEMBLY | 2 | ||
| 7 | 0011 | OEM: 525-11-20739 | NUT (.750-16) | 2 | ||
| 8 | 0014 | OEM: 525-14-12657 | TAB WASHER | 2 | ||
| 9 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) | 2 | ||
| 10 | 0011 | OEM: 525-11-20739 | NUT (.750-16) | 2 |
