350 Mag MPI Alpha-Bravo EC - Serial 1A300000 Thru 1A611927 - Alpha-Bravo Steering Components

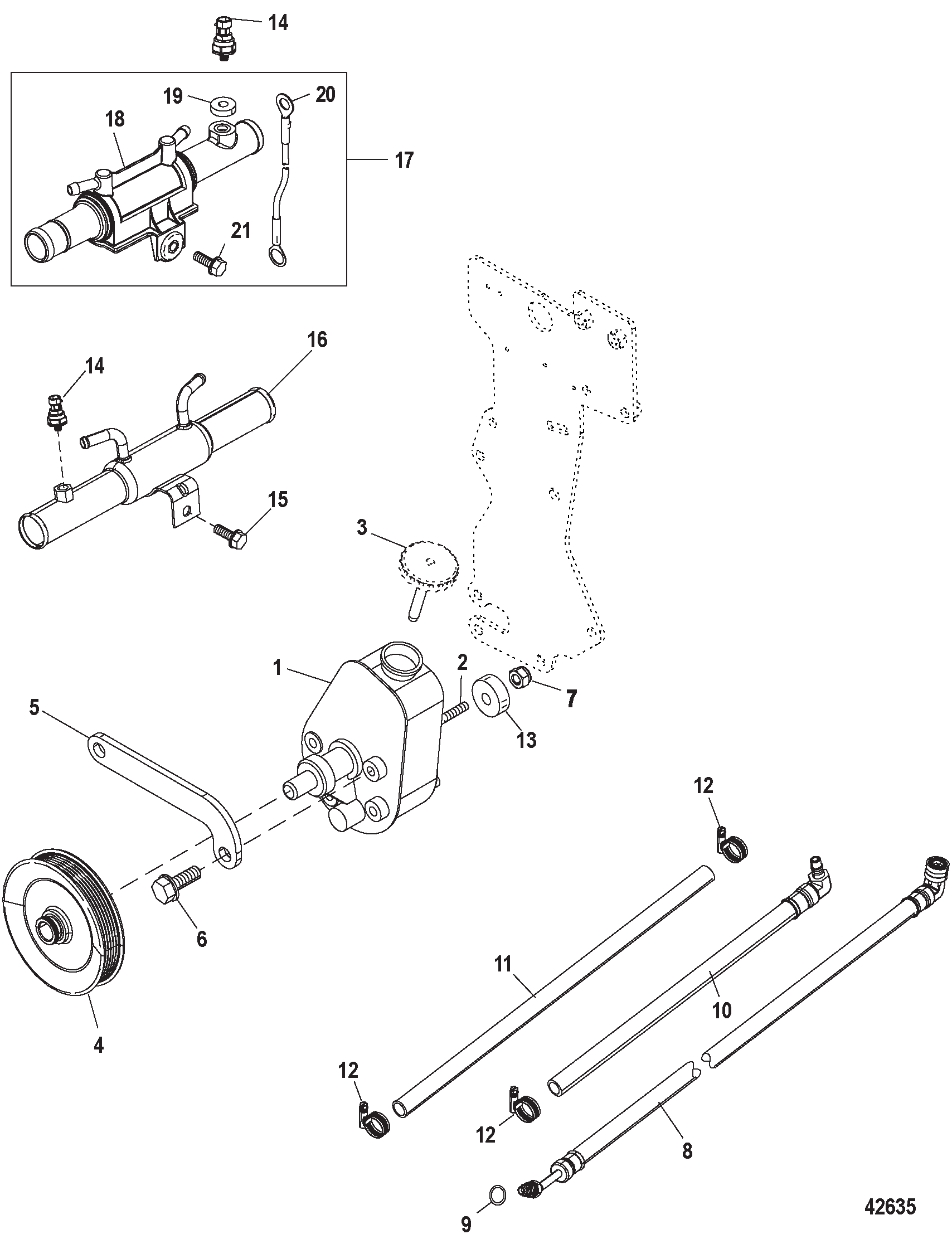

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Alternator and Brackets
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (HP) 1A347685 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A347684 and Down, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (For HP Filter) 1A347685 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342860 and Up, Gen I
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling Sys., Sea Water Pump Hoses - 1A343748 and Down
- Closed Cooling Sys., Sea Water Pump Hoses - 1A343749 and Up
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo (1A343748 and Below)
- Cool Fuel System -Bravo (1A343749 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components - Bravo (1A343748 and Below)
- Fuel Module Components - Bravo (1A343749 and Above)
- Fuel Supply Module, Alpha
- Gasket Set Components (27-75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-16792A39, Sierra: 676-18-7508 | PUMP ASSEMBLY Power Steering | 1 | ||
| 2 | 0016 | OEM: 525-16-41877 | STUD (M10) | 2 | ||
| 3 | 0036 | OEM: 525-36-95805 | CAP | 1 | ||
| 4 | 0000 | OEM: 525-861578, Sierra: 676-18-8297 | PULLEY | 1 | ||
| 5 | 0000 | OEM: 525-862082T | BRACE Power Steering | 1 | ||
| 6 | 0010 | OEM: 525-10-40001188 | SCREW (M10 x 20) | 2 | ||
| 7 | 0011 | OEM: 525-11-90517 | NUT (M10) | 2 | ||
| 8 | 0032 | OEM: 525-32-866685 | HOSE Female Quick Connect (Fittings on Both Ends) | 1 | ||
| 8 | 0032 | OEM: 525-32-866688 | HOSE Female Quick Connect (Fittings on Both Ends) | (Jackshaft Models) | 1 | |
| 9 | 0025 | OEM: 525-25-89879 | O-RING (.301 x .064) | 1 | ||
| 10 | 0032 | OEM: 525-32-865390015 | HOSE Male Quick Connect (Fitting on One End) | 1 | ||
| 10 | 0032 | OEM: 525-32-865390085 | HOSE Male Quick Connect (Fitting on One End) | (Jackshaft Models) | 1 | |
| 11 | 0032 | 5251914 | HOSE (53.00 Inches Bulk) Pump to Oil Cooler (37 Inch) | 1 | ||
| 12 | 0054 | OEM: 525-54-815504105 | CLAMP Worm Gear (11-18 mm) Hose | 3 | ||
| 13 | 0023 | OEM: 525-23-905201 | SPACER (.750 x .250) | 1 | ||
| 14 | 0000 | 881879010 | SENSOR | 1 | ||
| 15 | 0010 | OEM: 525-10-816585 | SCREW (.312-18 x .875) | 1 | ||
| 16 | 0000 | OEM: 525-863820T1 | COOLER Power Steering | Metal | 1 | |
| 17 | 0000 | 863820T03 | COOLER ASSEMBLY Power Steering | Composite | 1 | |
| 18 | 0000 | 863820T02 | COOLER Power Steering | Composite | 1 | |
| 19 | 0023 | 8M2017227 | SPACER | 1 | ||
| 20 | 0084 | 8M2100159 | HARNESS Ground | 1 | ||
| 21 | 0010 | OEM: 525-10-8M2016106 | SCREW (.312 x 1.25) | 1 | ||
| NS | 0019 | 8079921 | COVER Hose Clamp End | (.25 Inside Diameter) | AR | |
| NS | 0019 | 8079923 | COVER Hose Clamp End | (.375 Inside Diameter) | 1 | |
| NS | 0000 | OEM: 525-77054 | TIE STRAP (14.50 Inches) | 1 |
