350 Mag MPI Alpha-Bravo EC - Serial 1A300000 Thru 1A611927 - Distributor and Ignition Components

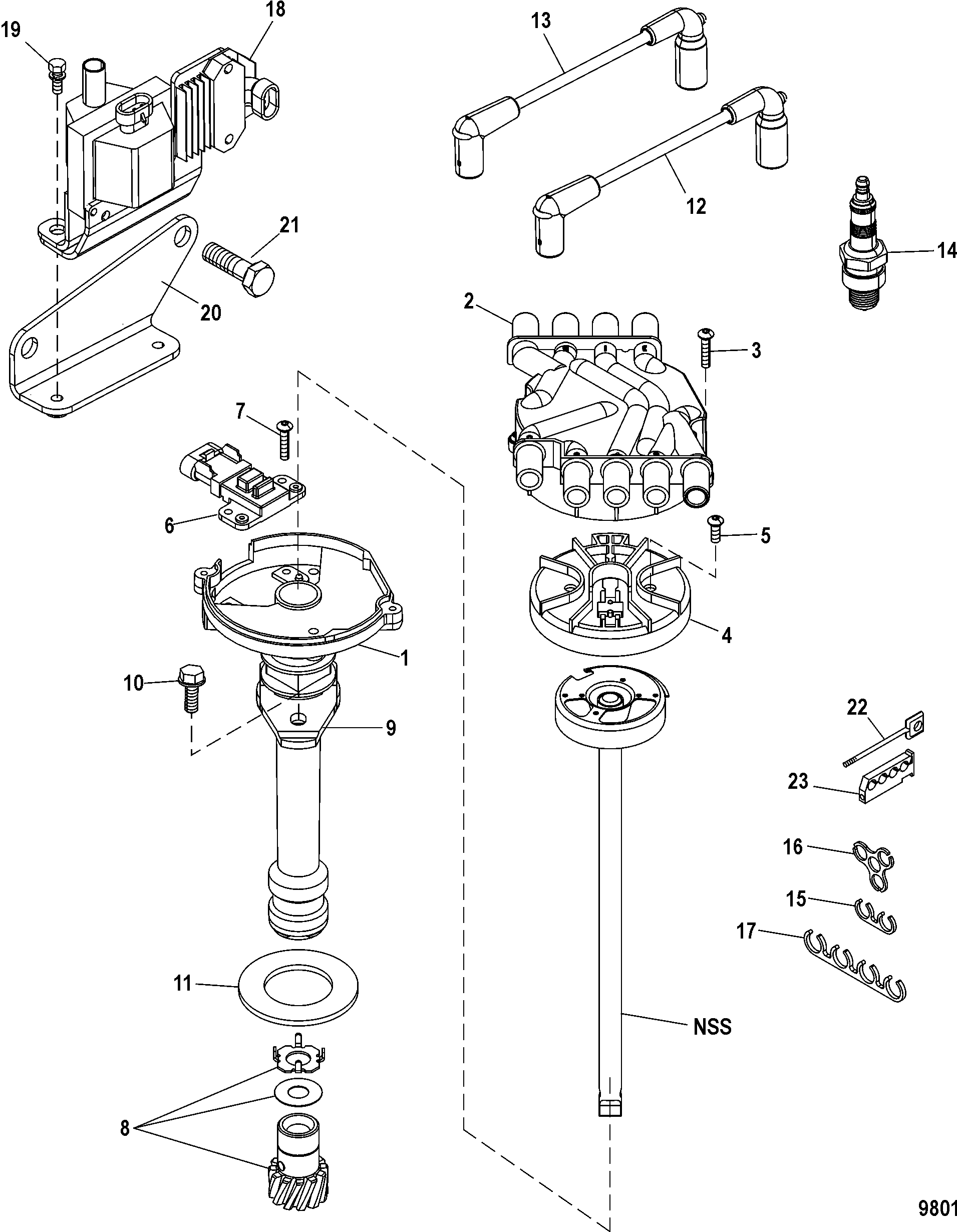

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Alternator and Brackets
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (HP) 1A347685 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A347684 and Down, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (For HP Filter) 1A347685 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342860 and Up, Gen I
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling Sys., Sea Water Pump Hoses - 1A343748 and Down
- Closed Cooling Sys., Sea Water Pump Hoses - 1A343749 and Up
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo (1A343748 and Below)
- Cool Fuel System -Bravo (1A343749 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components - Bravo (1A343748 and Below)
- Fuel Module Components - Bravo (1A343749 and Above)
- Fuel Supply Module, Alpha
- Gasket Set Components (27-75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879150A87 | DISTRIBUTOR ASSEMBLY | 1 | 884794A02 | |||||
| 2 | 8M6001106 | CAP, Distributor | 1 | 898253T22 | |||||
| 3 | 10-884786 | SCREW | 2 | ||||||
| 4 | 8M6001222 | ROTOR | 1 | 898253013 | |||||
| 5 | 10-884788 | SCREW | 2 | ||||||
| 6 | 898141 | SENSOR, Hall Effect, Camshaft Position | 1 | ||||||
| 8 | 43-884789 | GEAR ASSEMBLY | 1 | ||||||
| 9 | 54-88731 | CLAMP | 1 | ||||||
| 10 | 10-40011149 | SCREW, (M8 x 25) Stainless Steel | 1 | ||||||
| 11 | 27-344863 | GASKET | 1 | ||||||
| 12 | 84-863656A1 | CABLE KIT, Ignition, Plug & Coil Wires | 1 | ||||||
| 13 | 84-863657A1 | CABLE ASSEMBLY, Coil Wire | 1 | ||||||
| 14 | 33-8M2018369 | SPARK PLUG (AC 41-993) | 8 | 884019001 | |||||
| 15 | 54676 | RETAINER, Two Wire | 2 | ||||||
| 16 | 32783 | RETAINER, Three Wire | 2 | ||||||
| 17 | 32784 | RETAINER, Four Wire | 2 | ||||||
| 18 | 392-8M0054588 | COIL, Ignition | 1 | 863704T | |||||
| 19 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 2 | ||||||
| 20 | 863663T | BRACKET, Coil | 1 | ||||||
| 20 | 865057T | BRACKET, Coil | 1 | ||||||
| 21 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 22 | 16-90096A1 | STUD ASSEMBLY, (#10-32 x Special) | 2 | ||||||
| 23 | 54-72821 | RETAINER | 2 |
