Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

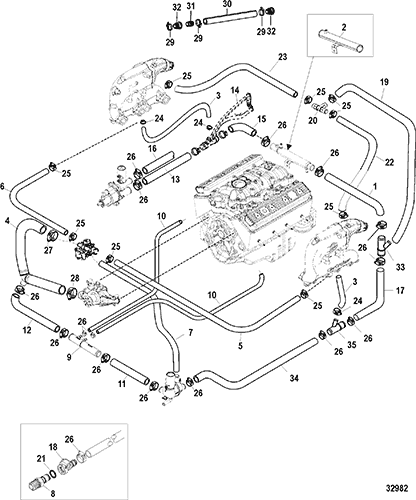

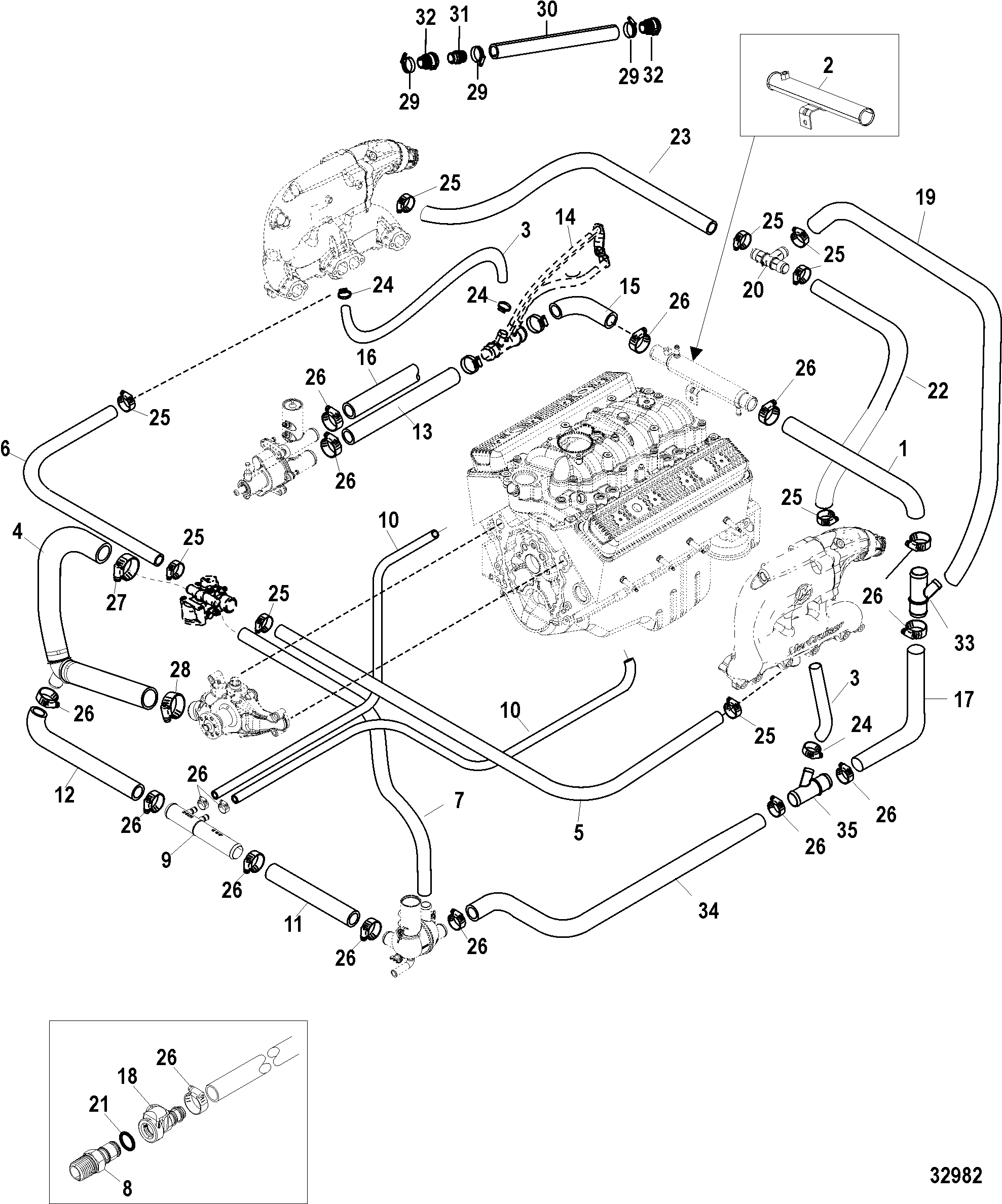

1 |
32-8M2004196 |
|
|
|
|
HOSE, Power Steering Cooler to Y-Fitting |
1 |
|
|
1 |
32-8M2014425 |
|
|
|
|
HOSE, Tube to Y-Fitting |
1 |
|
Axius |
2 |
863841T |
|
|
|
|
TUBE, Water |
1 |
|
|
3 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Exhaust Manifold to Fitting |
1 |
|
3 Point and Air Actuated Drain (Port-9 Inches, Starboard 3.5 Inches) |
3 |
32-4285069 |
|
|
|
|
HOSE, (44.00 Inches Bulk), Port Exhaust Manifold to Fitting |
1 |
|
Cut to 17 Inches, Axius |
4 |
32-863456A1 |
|
|
|
|
HOSE ASSEMBLY, Thermostat Housing to Circulating Pump |
1 |
|
|
5 |
32-863458 |
|
|
|
|
HOSE, Thermostat Housing to Port Manifold |
1 |
|
|
6 |
32-863459 |
|
|
|
|
HOSE, Thermostat Housing to Starboard Manifold |
1 |
|
|
7 |
32-8M2003797 |
|
|
|
|
HOSE, Distribution Housing to Thermostat Housing |
1 |
|
|
8 |
22-862603 |
|
|
|
|
FITTING, Male Quick Connector, Threaded - Engine Block |
2 |
|
|
9 |
22-864989A01 |
|
|
|
|
FITTING ASSEMBLY, Lower Distribution |
1 |
|
|
10 |
32-8M0062590 |
|
|
|
|
HOSE, Cylinder Block Drain to Distribution Fitting |
2 |
32-8623175 |
Port 23 Inches, Starboard 17 Inches |
11 |
32-863490 |
|
|
|
|
HOSE, Water Drain Accumulator to Distribution Fitting |
1 |
|
|
11 |
32-8M2010477 |
|
|
|
|
HOSE, Distribution Housing to Circulation Pump |
1 |
|
|
12 |
32-865394 |
|
|
|
|
HOSE |
1 |
|
|
13 |
32-8M2021656 |
|
|
|
|
HOSE, Sea Pump to Water Orifice |
1 |
32-865337 |
3 Point and 7 Point Drain |
13 |
32-865234 |
|
|
|
|
HOSE, Sea Pump to Water Orifice |
1 |
|
Air Actuated Drain |
14 |
NA |
|
|
|
|
NOT AVAILABLE, Orifice Meter Assembly, Air Actuated and 3 Point Drain |
1 |
|
(See 'Cool Fuel System -Bravo' page for service part number |
14 |
NA |
|
|
|
|
NOT AVAILABLE, Orifice Meter Assembly, 7 Point Drain |
1 |
|
(See 'Cool Fuel System -Bravo' page for service part number |
15 |
32-865235 |
|
|
|
|
HOSE, Water Orifice to Power Steering Cooler |
1 |
|
|
16 |
32-865672079 |
|
|
|
|
HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump |
1 |
|
|
17 |
32-8M2008992 |
|
|
|
|
HOSE, Y-Fitting to Water Distribution Housing |
1 |
|
7 Point Drain |
17 |
32-8M2004199 |
|
|
|
|
HOSE, Y-Fitting to Drain Fitting |
1 |
|
Air Actuated and 3 Point Drain |
17 |
32-8M2013927 |
|
|
|
|
HOSE, Y-Fitting to Drain Fitting |
1 |
|
Air Actuated, Axius |
17 |
32-8M2013926 |
|
|
|
|
HOSE, Y-Fitting to Distribution Housing |
1 |
|
7 Point Drain, Axius |
18 |
22-862225 |
|
|
|
|
FITTING, Pushlock - Block Drian Hose |
4 |
|
|
19 |
32-8M2012165 |
|
|
|
|
HOSE, Y-Fitting to Tee Fitting |
1 |
|
|
19 |
32-8M2013922 |
|
|
|
|
HOSE, Y-Fitting to Tee Fitting |
1 |
|
Axius |
20 |
22-8M2014001 |
|
|
|
|
FITTING, Tee, Green |
1 |
|
|
21 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
|
22 |
32-8M2012166 |
|
|
|
|
HOSE, Tee Fitting to Port Elbow |
1 |
|
|
22 |
32-8M2013923 |
|
|
|
|
HOSE, Tee Fitting to Exhaust Port |
1 |
|
Axius |
23 |
32-8M2012167 |
|
|
|
|
HOSE, Tee Fitting to Starboard Elbow |
1 |
|
|
23 |
32-8M2013924 |
|
|
|
|
HOSE, Tee Fitting to Exhaust Starboard |
1 |
|
Axius |
24 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
25 |
54-815504216 |
|
|
|
|
CLAMP, Worm Gear (1.56 Diameter) |
AR |
|
|
26 |
54-815504228 |
|
|
|
|
CLAMP, Worm Gear |
AR |
|
|
27 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
1 |
54-8M2001490 |
|
28 |
54-815504232 |
|
|
|
|
CLAMP, Worm Gear |
AR |
54-8M2001490 |
|
29 |
54-815504222 |
|
|
|
|
CLAMP, Worm Gear (1.98 DIameter) |
3 |
|
|
30 |
32-865672013 |
|
|
|
|
HOSE, (4.00 Inches) |
1 |
|
|
31 |
22-865362 |
|
|
|
|
QUICK CONNECT, Transom Hose |
1 |
|
|
32 |
22-865324 |
|
|
|
|
QUICK CONNECT, Transom Hose |
2 |
|
|
33 |
22-8M2003728 |
|
|
|
|
Y-FITTING |
1 |
|
|
34 |
32-866331 |
|
|
|
|
HOSE, Drain Fitting to Distribution Housing |
1 |
|
Air Actuated and 3 Point Drain |
34 |
32-8M2007277 |
|
|
|
|
HOSE, Drain Fitting to Distribution Housing |
1 |
|
Axius |
35 |
22-862993 |
|
|
|
|
FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Air Actuated and 3 Point Drain |
1 |
|
|
