350 Mag MPI Alpha-Bravo EC - Serial 1A300000 Thru 1A611927 - AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I

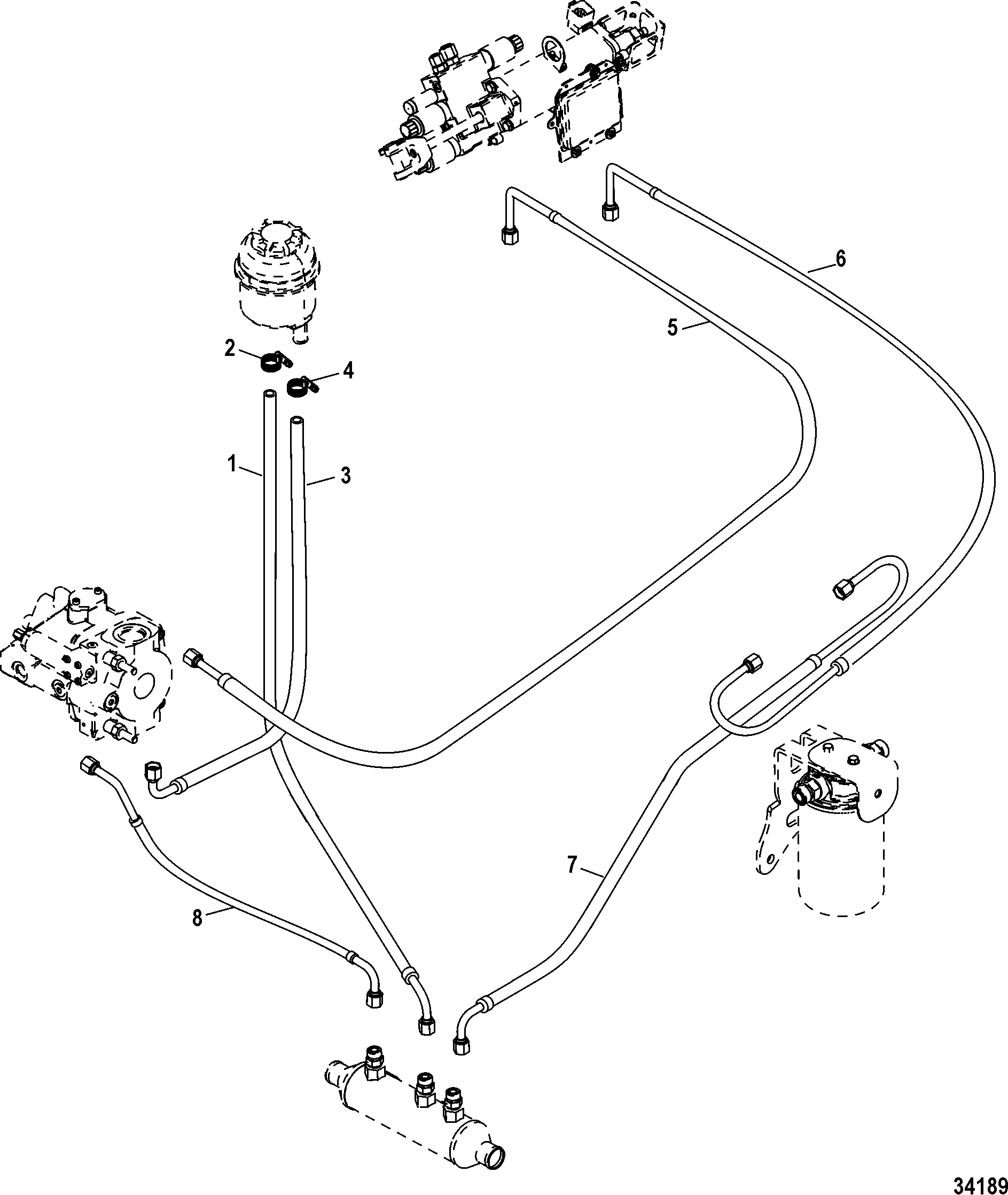

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-8M2008378



HOSE, Reservoir to Cooler 1

2 54-815504104



CLAMP, (8 - 16 mm) 1 54-8M2001484
3 32-8M2010005



HOSE, Reservior to Pump 1

4 54-815504210



CLAMP, Worm Gear (16-27 mm) 1 54-8M2001486
5 32-879194T05



HOSE ASSEMBLY, Pump to Actuator 1

6 32-8M2006305



HOSE, Actuator to Filter 1

7 32-8M2006298



HOSE, Filter to Cooler 1

8 32-8M2006306



HOSE, Pump to Cooler 1

- 879172A19



DUST CAP KIT 1
