5.7L (2 BBL) GM 350 V-8 1998-2001 - Serial 0L010037 Thru 0M599999 - Exhaust Manifold And Exhaust Elbow

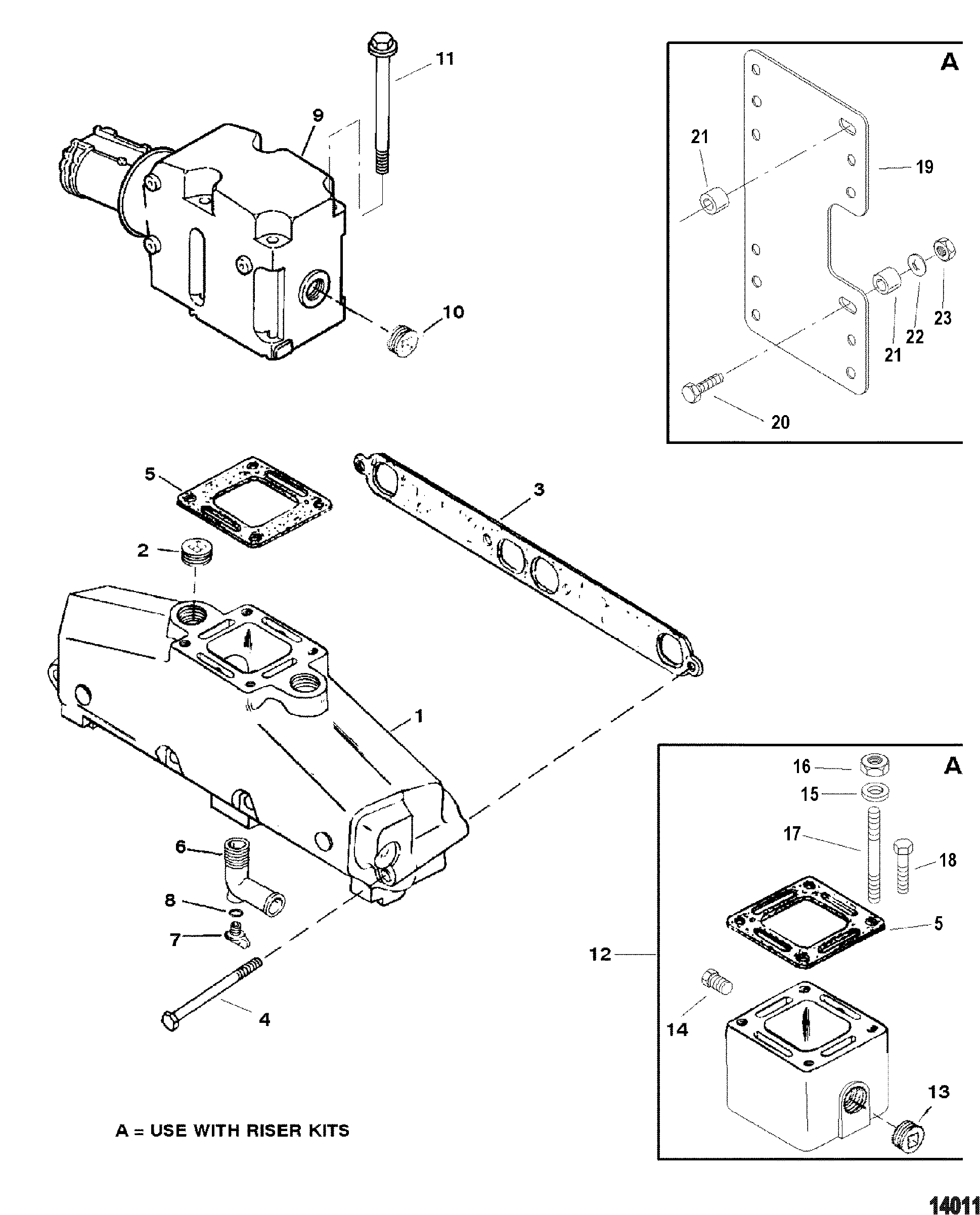

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15         MANIFOLD ASSEMBLY, Exhaust 2 860246A10 (Port / Starboard)
2 22-428611         FITTING, Pipe - Brass (.750-14) 8

NS 22-37372         PLUG, Pipe (.500) 2

3 27-33395   676-9-61401 700-31100   GASKET 2
2
4 10-53728     700-21745   SCREW, (.375-16 x 4.75) 8

5 27-863726   676-9-61414     GASKET 2
Use with Riser Kits
5 27-863724   676-9-61413     GASKET, Restrictor 2
Standard Cooling
6 22-862210A01   676-9-41206 700-13991   ELBOW KIT, Drain 2 22-806926A1
7 22-806608A02     700-13992   PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
8 25-32509         O-RING, (.489 x .070) 2
2
9 807988A03         ELBOW ASSEMBLY, Exhaust 2 807988A2
10 22-428611         FITTING, Pipe - Brass (.750-14) 2

11 10-43749     700-22381   SCREW, (.375-16 x 5.750) 8

11 10-43749     700-22381   SCREW, (.375-16 x 5.750) 4
(Swiss Emissions (BSO1 And SAV1)
11 10-843504         SCREW, (.380-16 x 1.500) Stainless Steel 4

12 93320A13         RISER KIT, Exhaust (3 Inches) 1 93320A5 (Each Kit Contains 2 Risers)
12 93322A12     700-50610   RISER KIT, Exhaust (6 Inches) 1 93322A7 (Each Kit Contains 2 Risers)
13 22-428611         FITTING, Pipe - Brass (.750-14) 2

14 22-328022         PLUG, Pipe (.125-27) Brass 2

15 12-46132         WASHER 4/8
(Use With Three Inch Risers)
16 11-805979         NUT, (.375-24) 4/8
(Use With Three Inch Riser)
17 8M0022137     700-22474   STUD, (.375 x 9.56) 4/8 16-11375 (Use With Three Inch Riser)
18 10-14315         SCREW, (.375-16 x 4.25) 4   This Part is No Longer Available (Swiss Emissions (BSO1 And SAV1) Use With Three Inch Riser)
18 10-865982005         SCREW, (.375-16 x 1.00) 8 10-12244 (Use With Six Inch Riser)
19 818598T         BRACKET 1
(Use With Six Inche Riser)
20 10-76596         SCREW, (.250-20 x 1.250) 3
(Use With Six Inch Riser)
21 23-806981         SPACER 6
(Use With Six Inch Riser)
22 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 3
(Use With Six Inch Riser)
23 11-64015         NUT, (.250-20) 3
(Use With Six Inch Riser)
- 27-861246A05     700-39016   GASKET SET 1 27-861246A98
