5.7L (2 BBL) GM 350 V-8 1998-2001 - Serial 0L010037 Thru 0M599999 - Fuel Pump And Fuel Filter

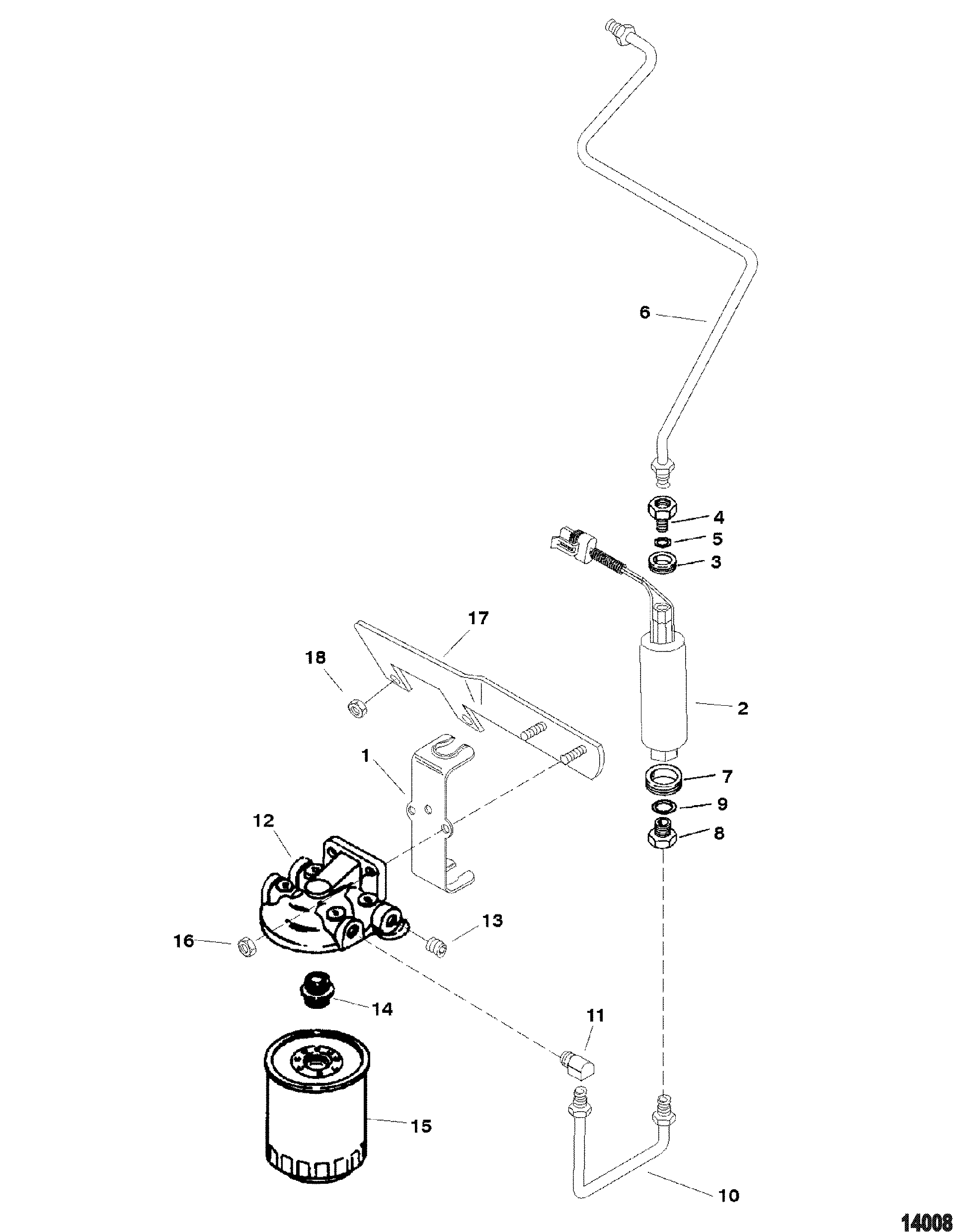

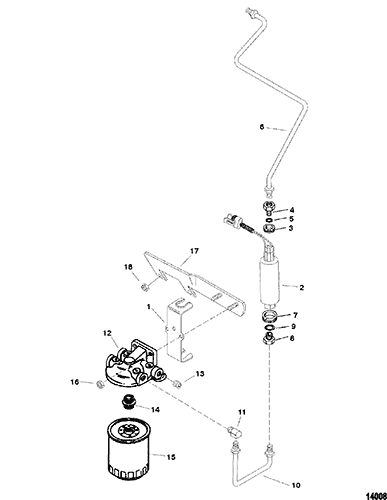

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter (Mando)
- Carburetor (Mercarb)
- Carburetor And Throttle Linkage (Two Barrel)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distibutor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Water Pump And Front Cover
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861319 | BRACKET, Fuel Pump | 1 | ||||||
| 2 | 861155A3 | 676-9-35432 | PUMP ASSEMBLY, Fuel | 1 | |||||
| 3 | 25-817491 | GROMMET, (.56 Inside Diameter) | 1 | ||||||
| 4 | 22-805027A1 | FITTING ASSEMBLY | 1 | (1.00 Inch Overall Length) | |||||
| 4 | 22-861395A1 | FITTING ASSEMBLY | 1 | (1.25 Inch Overall Length) | |||||
| 5 | 25-805063 | O-RING, (.301 x .070) | 1 | ||||||
| 6 | 32-8612471 | LINE, Fuel | 1 | 32-861247 | |||||
| 7 | 25-13467 | GROMMET, (.88 Inside Diameter) | 1 | ||||||
| 8 | 22-805026A1 | FITTING | 1 | ||||||
| 9 | 25-805062 | O-RING, (.530 x .082) | 1 | ||||||
| 10 | 32-861250 | LINE ASSEMBLY, Fuel | 1 | ||||||
| 11 | 22-93385 | FITTING, (90 Degree) | 1 | ||||||
| 12 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | ||||||
| 13 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 3 | ||||||
| 14 | 22-816133 | FITTING | 1 | ||||||
| 15 | 35-802893Q01 | FILTER, Fuel/Water Separating - Quicksilver Brand | 1 | 35-802893Q | |||||
| 16 | 11-29250 | NUT, (.312-24) | 2 | ||||||
| 17 | 807918T | BRACKET, Fuel Filter Base | 1 | ||||||
| 18 | 11-860069 | NUT, (.375-16) | 2 |
