5.7L (2 BBL) GM 350 V-8 1998-2001 - Serial 0L010037 Thru 0M599999 - Sea Water Pump Assembly

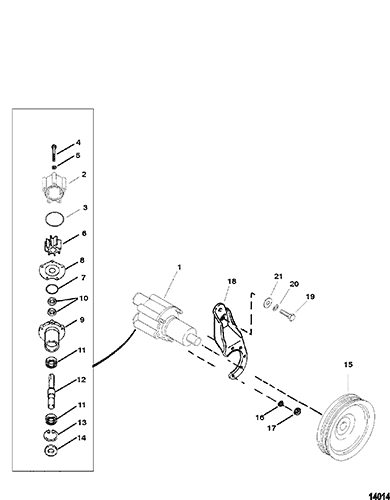

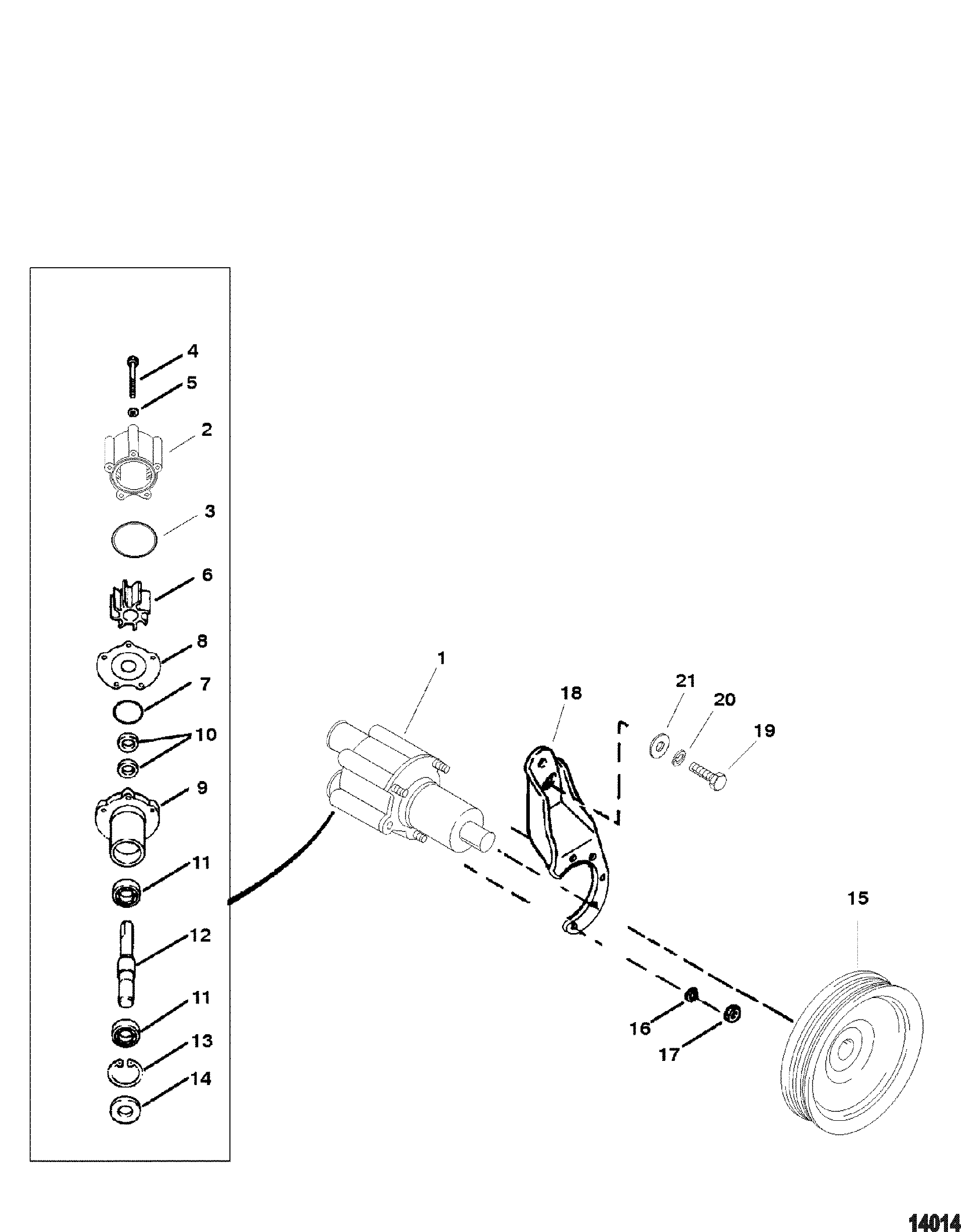

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter (Mando)
- Carburetor (Mercarb)
- Carburetor And Throttle Linkage (Two Barrel)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distibutor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Water Pump And Front Cover
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A9 | 700-12097 | PUMP ASSEMBLY, Sea Water | 1 | |||||
| 2 | 46-807151A14 | 676-9-48350 | BODY/IMPELLER KIT | 1 | |||||
| 3 | 25-33465 | 676-9-76516 | 700-81430 | 525-25-33465 | O-RING | 1 | |||
| 4 | 10-807356 | SCREW, (.312-18 x 2.680) | 2 | ||||||
| 4 | 10-74191 | SCREW, (.312-18 x 3.250) | 3 | ||||||
| 5 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 5 | |||||
| 6 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | |||
| 7 | 25-94288 | QUAD RING | 1 | ||||||
| 8 | 94576 | 700-12501 | WEAR PLATE, Inner | 1 | |||||
| 9 | 46-94913A5 | HOUSING ASSEMBLY, Pump | 1 | ||||||
| 10 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312) | 2 | ||||
| 11 | 30-72961 | 676-9-43220 | BEARING, Ball | 2 | |||||
| 12 | 59501A1 | SHAFT | 1 | ||||||
| 13 | 53-23720 | RING, Retaining | 1 | ||||||
| 14 | 26-72785 | SEAL | 1 | ||||||
| 15 | 861579 | PULLEY | 1 | ||||||
| 16 | 13-400247 | LOCKWASHER, (M8) | 3 | ||||||
| 17 | 11-21908 | NUT, (.312-18) Cad Plated | 3 | ||||||
| 18 | 8077491 | BRACKET | 1 | ||||||
| 19 | 10-34353 | 525-10-34353 | SCREW, (.375-16 x 1.00) | 2 | |||||
| 20 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 21 | WASHER | 1 |
