Bravo Three - Serial 0F730000 Thru 0M100000 - Driveshaft Housing Chart (Gasoline)

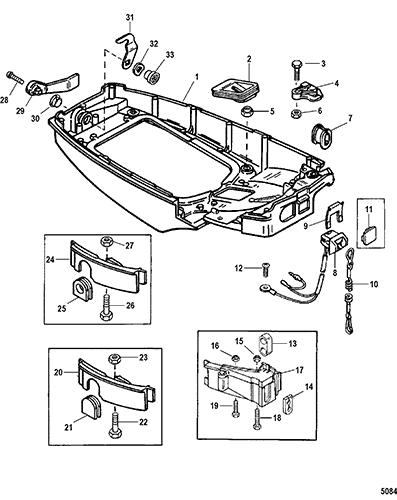

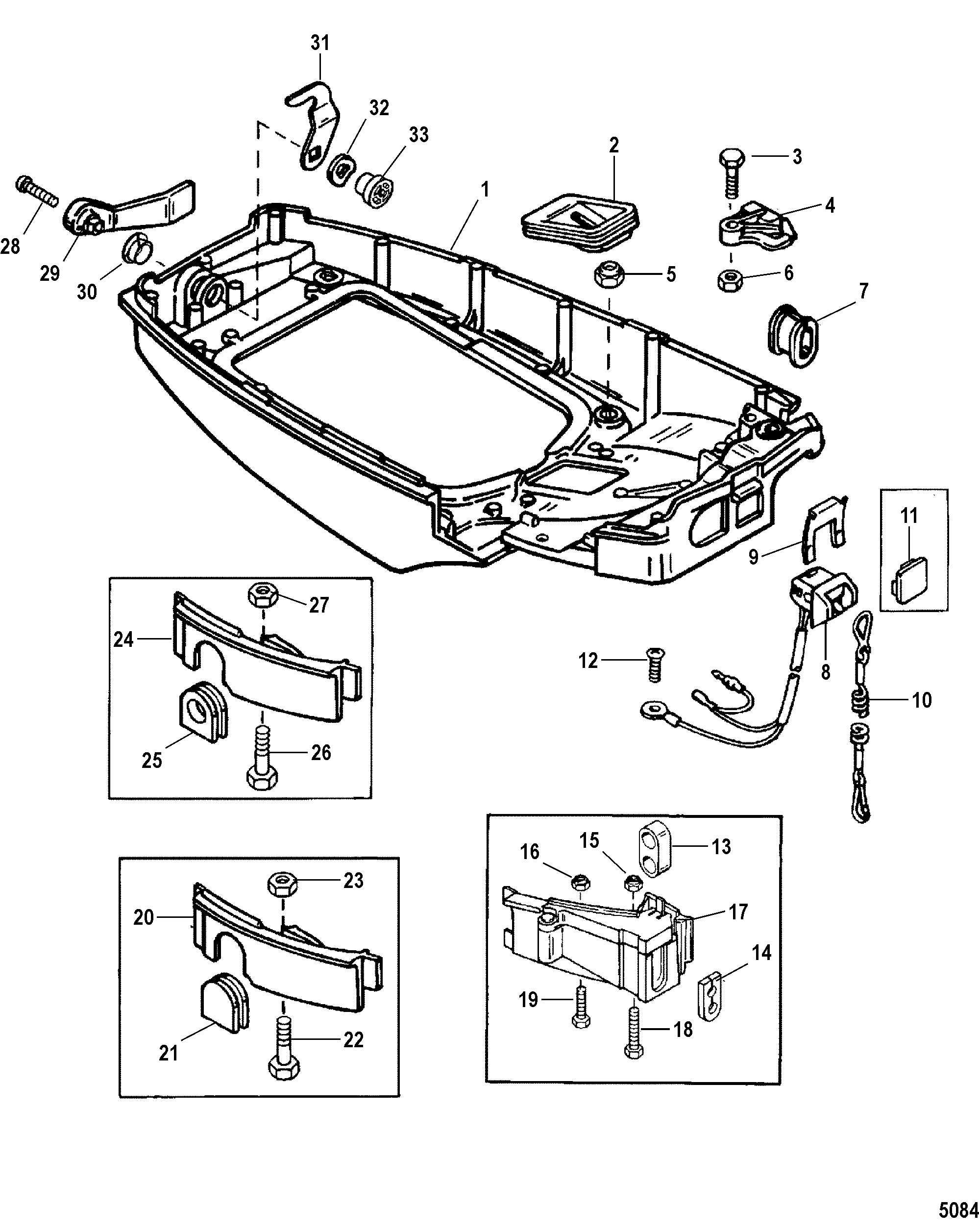

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Note: FOR REPLACEMENT OF DRIVESHAFT HOUSING ASSEMBLY, COMPLETE WHICH INCLUDES GEARS, UNIVERSAL JOINTS, ETC
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1589-863836A50



HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio) 1 1589-8868G23 (BRAVO I)
- 1589-863836A51



HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio) 1 1589-8868G13 (BRAVO I)
- 1589-863836A52



HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio) 1 1589-8868G17 (BRAVO I)
- 1589-863836A50



HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio) 1 1589-8868G23 (BRAVO II)
- 1589-863836A51



HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio) 1 1589-8868G13 (BRAVO II)
- 1589-863836A50



HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio) 1 1589-8868G15 (BRAVO II)
- 1589-863836A51



HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio) 1 1589-8868G13 (BRAVO II)
- 1589-863836A52



HOUSING ASSEMBLY, Driveshaft (2.20:1 Ratio) 1 1589-8868G17 (BRAVO II)
- 1589-863836A50



HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio) 1 1589-8868G23 (BRAVO III)
- 1589-863836A51



HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio) 1 1589-8868G19 (BRAVO III)
- 1589-863836A51



HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio) 1 1589-8868G13 (BRAVO III)
- 1589-863836A50



HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio) 1 1589-8868G15 (BRAVO III)
- 1589-863836A51



HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio) 1 1589-8868G13 (BRAVO III)
- 1589-863836A52



HOUSING ASSEMBLY, Driveshaft (2.20:1 Ratio) 1 1589-8868G17 (BRAVO III)
- 1589-863836A52



HOUSING ASSEMBLY, Driveshaft (2.43:1 Ratio) 1 1589-8868G17 (BRAVO III)
