Bravo Three - Serial 0F730000 Thru 0M100000 - Transom Plate And Shift Cable

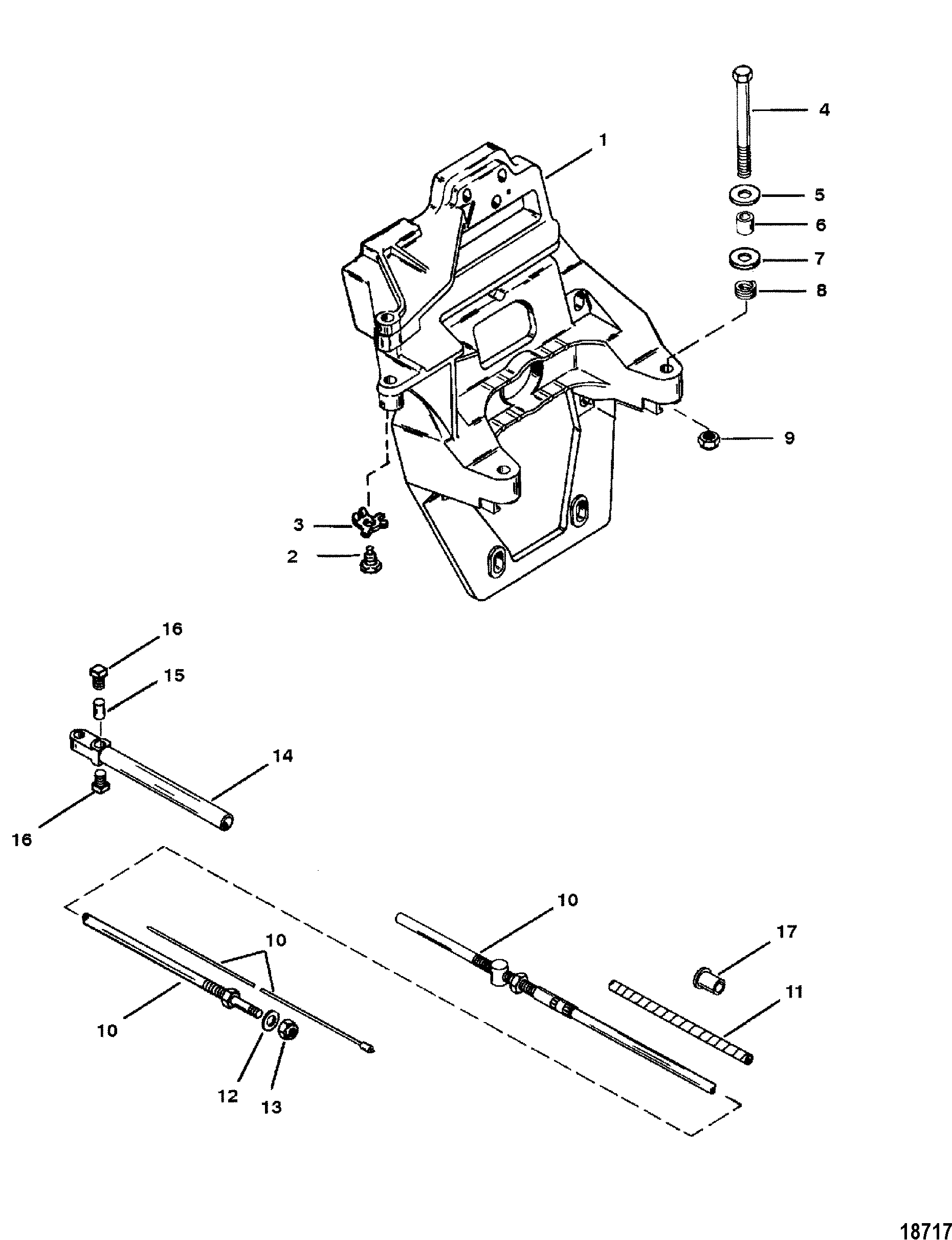

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 44117A8



PLATE ASSEMBLY, Transom 1

2 10-42253



BOLT 2

3 14-42254



WASHER 2

4 10-97934

700-19310
SCREW, (.500-20 x 5.370) Special 2

5 12-35777
  700-19320
WASHER, (.5156 x 1.375 x .125) Aluminium 2

6 23-99299

700-19340
SPACER, (.520 x .870 x .630) 2

7 12-32834

700-30020
WASHER, (.9375 x 1.750 x .172) 2

8 13-33734

700-19330
LOCKWASHER, (.500) 2

9 11-863332

700-19350
NUT, (.500-20) 2 11-99298
10 865437A02
676-9-72156

CABLE ASSEMBLY 1 815471A3
11 90412



WRAPPING, (1.16 Feet Bulk) 1

12 12-815472



WASHER 1

13 11-49910



NUT, (.375-24) 1

- 43433A01



GUIDE KIT 1

14 43433
676-9-72150
 700-21430
GUIDE 1

15 43436

700-21432
ANCHOR 1

16 10-20518
676-9-72164
 700-21433
SET SCREW, (#8-32) 2

17 14705

700-21463
INSERT 1
