Bravo Three - Serial 0F730000 Thru 0M100000 - Mercathode Kit
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components

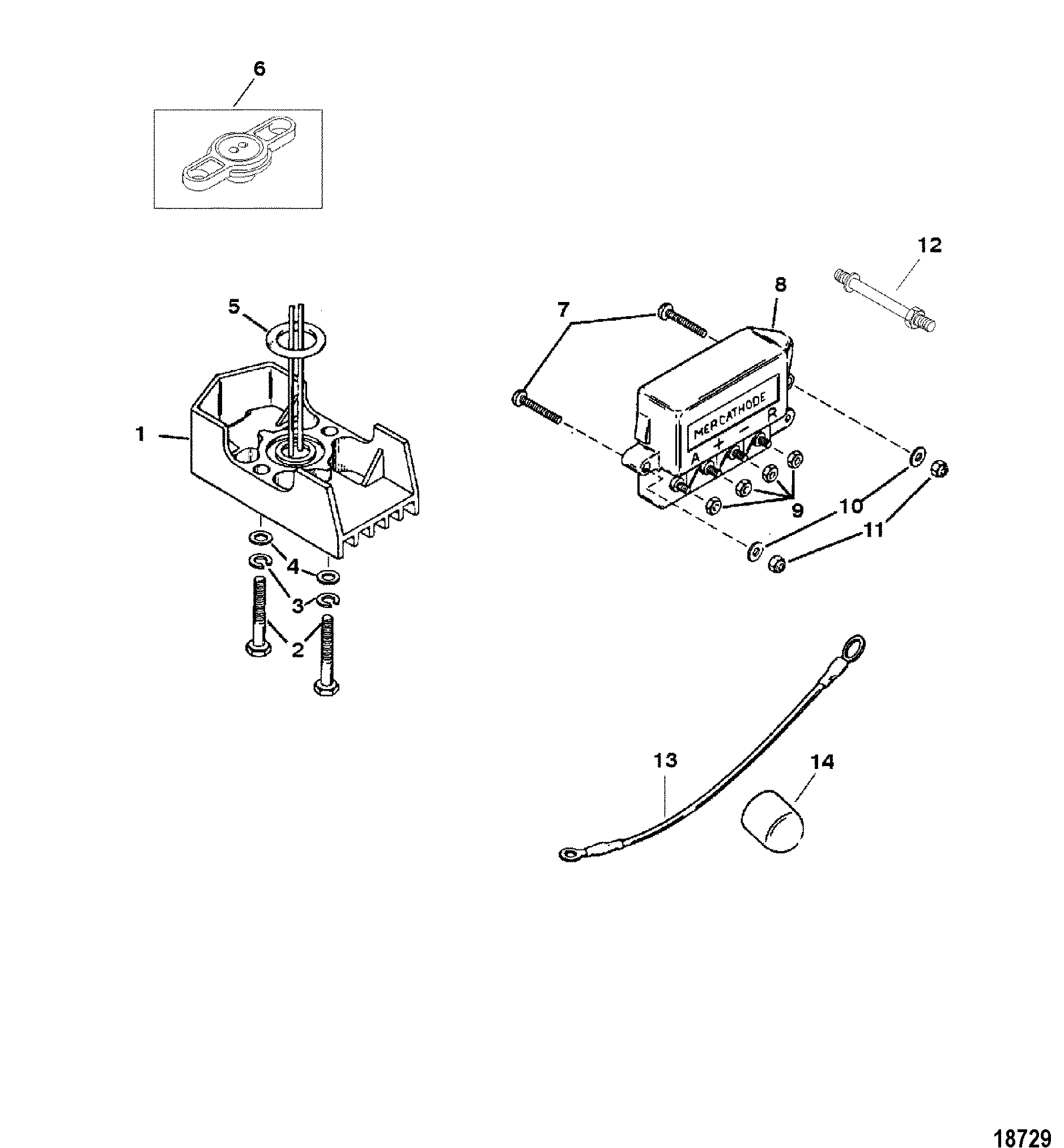

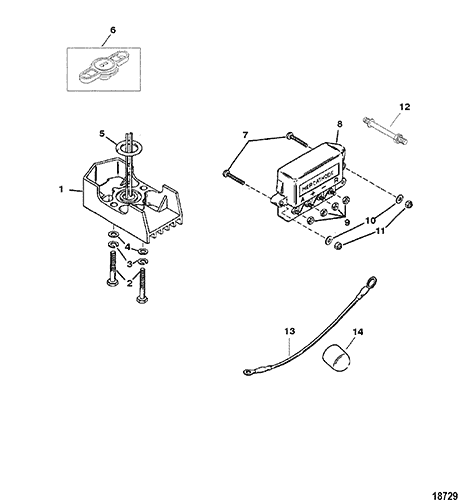

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A11 | |||||
2 | 10-69067 | SCREW, (.250-20 x 1.375) | 2 | ||||||
3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
4 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
5 | 25-88388 | O-RING | 1 | (DESIGN I) | |||||
6 | 25-805294 | GROMMET | 1 | (DESIGN II) | |||||
7 | 10-72202 | 700-22312 | SCREW, (#10-32 x 1.25) | 1 | |||||
7 | 10-45862 | SCREW, (#10-32 x .875) | 1 | ||||||
8 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
9 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
10 | 12-21273 | WASHER | 2 | ||||||
11 | 11-46438 | NUT, (#10-32) | 2 | ||||||
12 | 16-805459 | STUD, Mercathode Mounting | 1 | ||||||
13 | 84-88543A3 | CABLE ASSEMBLY | 1 | ||||||
14 | 44574T | CAP | 2 | 44574 |
