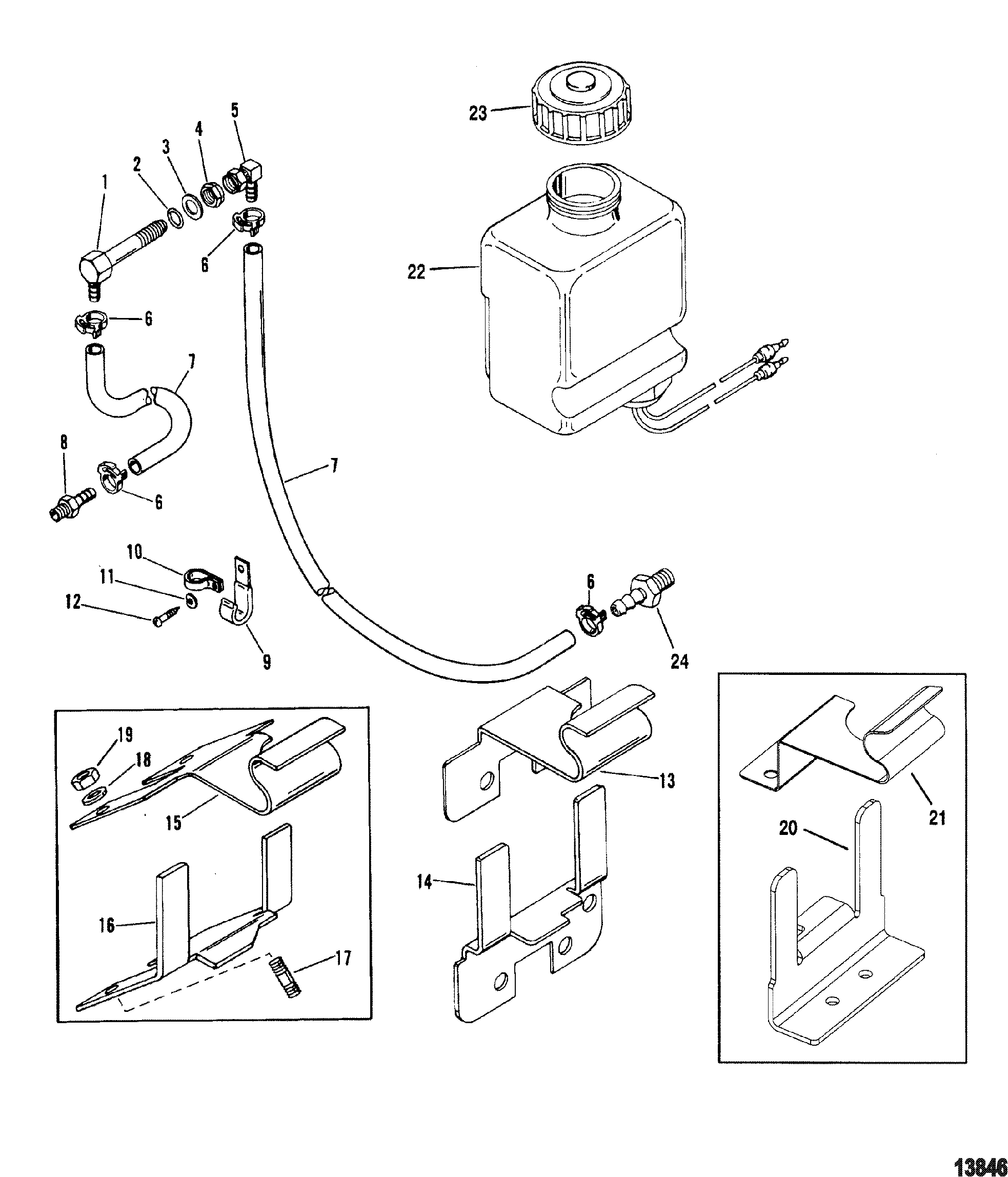

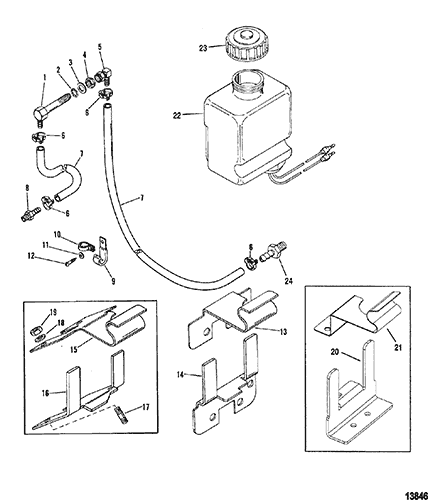

| Note: Square Oil Bottle
|
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
22-18922 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 2 |
25-201951 |
|
|
|
|
O-RING |
1 |
25-20195 |
|
| 3 |
12-861854 |
|
|
|
|
WASHER |
1 |
12-91964 |
|
| 4 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
1 |
|
|
| 5 |
22-18923 |
|
|
|
|
FITTING |
1 |
|
|
| 6 |
54-415825 |
|
|
|
|
CLAMP, Nylon |
4 |
|
|
| 7 |
32-8M0062600 |
|
|
|
|
HOSE, (54.00 Inches Bulk) |
2 |
32-1940971 |
|
| 8 |
22-16739 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 9 |
54-642351 |
|
|
|
|
J CLIP |
1 |
|
|
| 10 |
54-23567 |
|
|
|
|
CLIP |
1 |
|
|
| 11 |
10-60605 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 12 |
69205 |
|
|
|
|
C WASHER |
1 |
|
|
| 13 |
806293T |
|
|
|
|
BRACKET, Clip |
1 |
|
(3.0L/3.0LX) |
| 14 |
860065A1 |
|
|
|
|
BRACKET |
1 |
807024T |
(3.0L/3.0LX) |
| 15 |
806292T1 |
|
|
|
|
BRACKET |
1 |
806292T |
(4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) |
| 16 |
807025T |
|
|
|
|
BRACKET |
1 |
|
(4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) |
| 17 |
16-805357 |
|
|
|
|
STUD, (.375-16 x 2.130) |
2 |
|
(4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) |
| 18 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
2 |
|
(4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) |
| 19 |
11-32219 |
|
|
|
|
NUT, (.375-16) |
2 |
|
(4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) |
| 20 |
806649T |
|
|
|
|
BRACKET |
1 |
|
(262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+)) |
| 21 |
806650T |
|
|
|
|
BRACKET |
1 |
|
This Part is No Longer Available (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+)) |
| 22 |
806193A51 |
|
|
|
|
RESERVOIR ASSEMBLY, Oil |
1 |
806193A3 |
|
| 23 |
36-8067271 |
|
|
|
|
CAP, Drive Lube Monitor, Oil Bottle |
1 |
36-808625 |
|
| 24 |
22-808624 |
|
|
|
|
CONNECTOR |
1 |
|
|
