| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

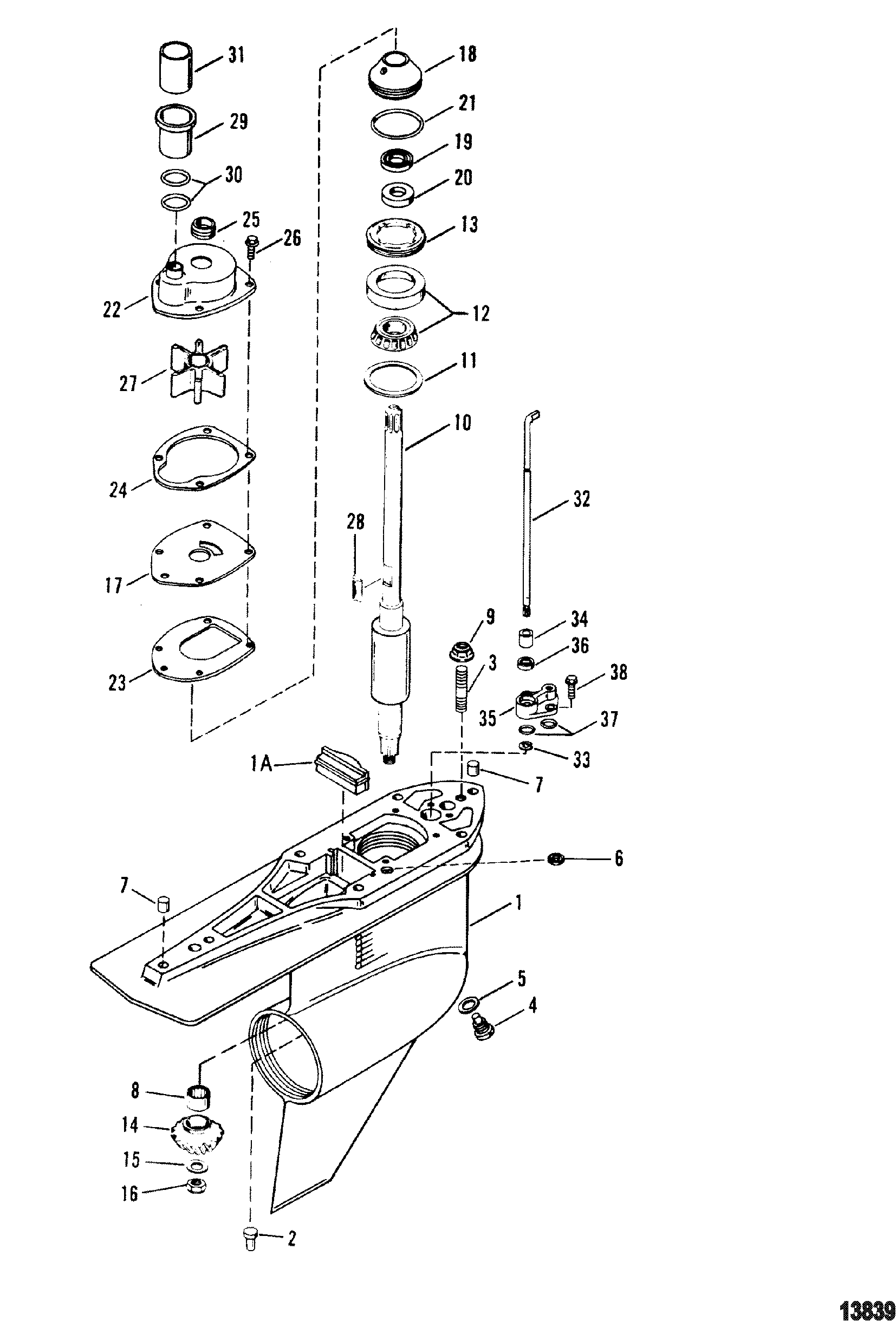

1623-815822A47 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
1623-815822A7 |
|
| 1 |
1623-815822A28 |
|
|
|
|
GEAR HOUSING ASSEMBLY |
1 |
|
|
| 1A |
821526001 |
|
|
|
|
FILLER BLOCK |
1 |
821526 |
|
| 2 |
17-379721 |
|
|
|
|
PIN |
1 |
|
|
| 3 |
16-57984 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.380) |
1 |
|
|
| 4 |
22-8M0058389 |
|
|
700-21731 |
525-22-8M0058389 |
SCREW |
1 |
10-14834A1 |
|
| 5 |
12-191833 |
|
|
|
525-12-191833 |
WASHER, Fiber, Optional |
1 |
12-19183 |
(Fiber) 4,5,6 |
| 5 |
25-805726 |
|
676-9-76578 |
|
|
O-RING, Rubber, Optional |
1 |
|
(Rubber) 4,5,6 |
| 6 |
26-455771 |
|
|
|
525-26-455771 |
SEAL |
1 |
26-45577 |
4,5 |
| 7 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 8 |
31-42647A1 |
|
676-9-75121 |
700-21610 |
|
BEARING ASSEMBLY, Roller |
1 |
|
|
| 9 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
1 |
11-817618 |
|
| 10 |
45-816919 |
|
676-9-78112 |
700-11140 |
|
DRIVESHAFT |
1 |
|
|
| 11 |
15-8M0063267 |
|
|
|
|
SHIM SET |
AR |
15-42637A1 |
3 |
| 12 |
31-36387A1 |
|
676-9-75107 |
700-21580 |
|
BEARING, Roller |
1 |
|
|
| 13 |
8245191 |
|
676-9-78126 |
|
|
RETAINER |
1 |
824519 |
|
| 14 |
43-828071A1 |
|
|
|
|
GEAR SET, Includes Pinion/Forward Gears |
1 |
43-812975A5 |
|
| 15 |
12-92721 |
|
676-9-78108 |
700-32800 |
|
WASHER |
1 |
|
|
| 16 |
11-35921 |
|
676-9-78103 |
700-11190 |
|
NUT, (.625-18) |
1 |
|
|
| 17 |
8172761 |
|
|
|
|
FACEPLATE |
1 |
817276 |
4 |
| 18 |
807929A1 |
|
676-9-72642 |
700-12341 |
|
CARRIER ASSEMBLY |
1 |
821759A2 |
4 |
| 19 |
26-16977 |
|
676-9-76108 |
700-85040 |
|
SEAL, Oil |
1 |
|
4,5 |
| 20 |
26-89238 |
|
676-9-76109 |
700-85070 |
|
SEAL, Oil |
1 |
|
4,5 |
| 21 |
25-896523 |
|
|
700-81395 |
|
O-RING, (2.175 x .175) |
1 |
25-90011 |
4,5 |
| 22 |
817275A1 |
|
676-9-48314 |
700-12415 |
|
PUMP ASSEMBLY, Water |
1 |
|
impeller not included 4 |
| 23 |
27-430331 |
|
|
|
|
GASKET |
1 |
|
4 |
| 24 |
27-8172771 |
|
|
|
|
GASKET |
1 |
27-817277 |
4 |
| 25 |
26-816575A2 |
|
676-9-43628 |
700-85590 |
|
SEAL KIT |
1 |
|
seal tool not included 4,5 |
| 26 |
10-816928 |
|
676-9-78128 |
700-12834 |
|
SCREW, (M6 x 16) |
4 |
|
|
| 27 |
47-43026T2 |
|
676-9-45307 |
700-89630 |
|
IMPELLER |
1 |
47-430262 |
4 |
| 28 |
28-8M0032833 |
|
|
|
|
KEY |
1 |
28-43037 |
7 |
| 29 |
816597A1 |
|
676-9-78110 |
700-12824 |
|
COUPLING ASSEMBLY |
1 |
|
|
| 30 |
25-21836 |
|
676-9-76565 |
|
|
O-RING, (.796 x .139) |
2 |
|
4,5 |
| 31 |
23-816583 |
|
|
700-12825 |
|
SLEEVE |
1 |
|
|
| 32 |
815919A1 |
|
676-9-72477 |
700-21031 |
|
SHIFT SHAFT, Lower |
1 |
|
|
| 33 |
53-29641 |
|
676-9-78109 |
700-21136 |
|
E RING |
1 |
|
|
| 34 |
23-67370 |
|
676-9-78134 |
|
|
SLEEVE |
1 |
|
|
| 35 |
23-815921A21 |
|
|
700-21015 |
|
BUSHING ASSEMBLY |
1 |
23-815921A8 |
|
| 36 |
26-8164641 |
|
|
|
|
SEAL, Oil |
1 |
|
5 |
| 37 |
25-36318 |
|
676-9-76574 |
|
|
O-RING, (.799) |
2 |
|
5 |
| 38 |
10-816928 |
|
676-9-78128 |
700-12834 |
|
SCREW, (M6 x 16) |
2 |
|
|
| - |
817275Q05 |
|
|
|
|
REBUILD KIT, Water Pump |
1 |
817275A4 |
|
| - |
26-816575A3 |
|
676-9-74206 |
700-87511 |
|
SEAL KIT, Gear Housing |
1 |
|
|
