| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

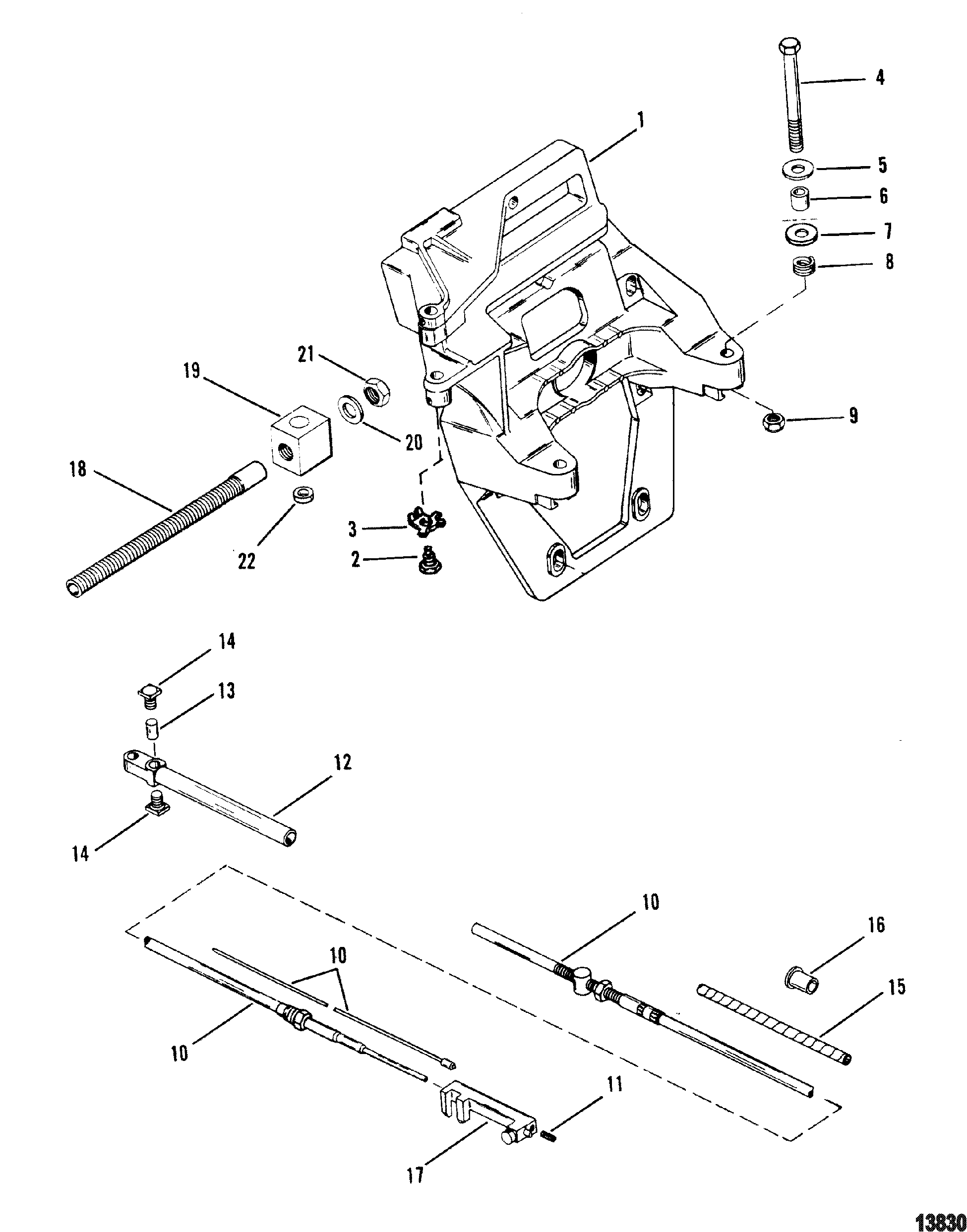

| 1 |
44117A8 |
|
|
|
|
PLATE ASSEMBLY, Transom |
1 |
|
|
| 2 |
10-42253 |
|
|
|
|
BOLT |
2 |
|
|
| 3 |
14-42254 |
|
|
|
|
WASHER |
2 |
|
|
| 4 |
10-97934 |
|
|
700-19310 |
|
SCREW, (.500-20 x 5.370) Special |
2 |
|
|
| 5 |
12-35777 |
|
|
700-19320 |
|
WASHER, (.5156 x 1.375 x .125) Aluminium |
2 |
|
|
| 6 |
23-99299 |
|
|
700-19340 |
|
SPACER, (.520 x .870 x .630) |
2 |
|
|
| 7 |
12-32834 |
|
|
700-30020 |
|
WASHER, (.9375 x 1.750 x .172) |
2 |
|
|
| 8 |
13-33734 |
|
|
700-19330 |
|
LOCKWASHER, (.500) |
2 |
|
|
| 9 |
11-863332 |
|
|
700-19350 |
|
NUT, (.500-20) |
2 |
11-99298 |
|
| 10 |
865436A02 |
|
|
700-21451 |
|
CABLE ASSEMBLY, Shift |
1 |
19543A4 |
|
| 11 |
10-31700 |
|
676-9-72152 |
700-21090 |
|
SCREW, (.250-28 x .750) |
1 |
|
|
| - |
43433A01 |
|
|
|
|
GUIDE KIT |
1 |
|
|
| 12 |
43433 |
|
676-9-72150 |
700-21430 |
|
GUIDE |
1 |
|
|
| 13 |
43436 |
|
|
700-21432 |
|
ANCHOR |
1 |
|
|
| 14 |
10-20518 |
|
676-9-72164 |
700-21433 |
|
SET SCREW, (#8-32) |
2 |
|
|
| 15 |
38473 |
|
|
700-21462 |
|
WRAPPING, Spiral |
1 |
|
|
| 16 |
14705 |
|
|
700-21463 |
|
INSERT |
1 |
|
|
| 17 |
8507522 |
|
|
|
|
SLIDE |
1 |
33981T1 |
|
| 18 |
96400 |
|
|
|
|
TUBE, Steering |
1 |
|
(Non Power Steering) |
| 19 |
95846 |
|
|
|
|
SWIVEL BLOCK |
1 |
|
(Non Power Steering) |
| 20 |
12-37985 |
|
|
|
|
WASHER |
1 |
|
This Part is No Longer Available (Non Power Steering) |
| 21 |
11-37984 |
|
|
|
|
NUT, (.875-14) |
1 |
|
(Non Power Steering) |
| 22 |
23-95803 |
|
|
|
|
BUSHING |
2 |
|
(Non Power Steering) |
