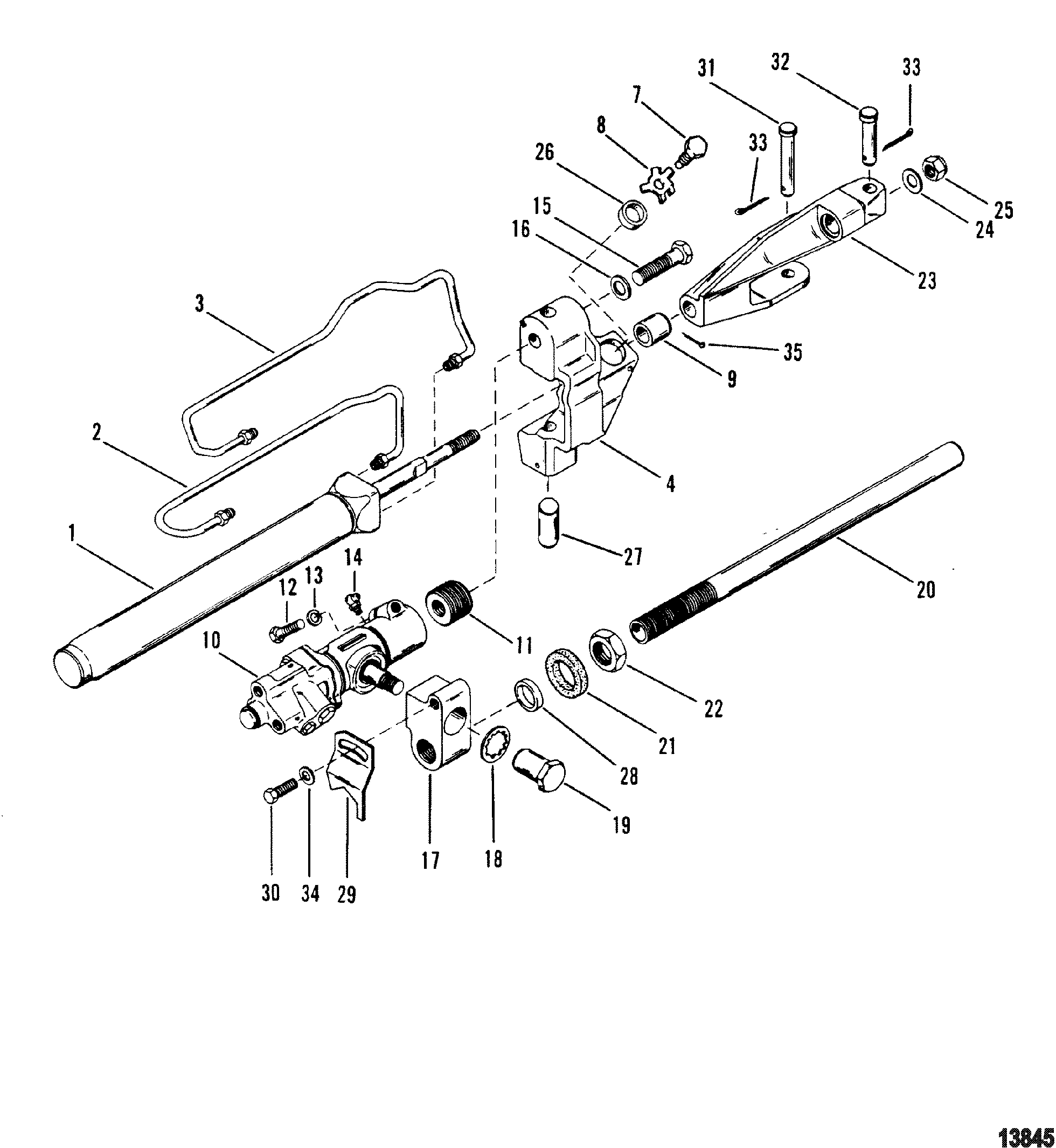

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
57969A12 |
|
|
|
|
CYLINDER ASSEMBLY, Booster (25- 58224A 1 Repair Kit) |
1 |
|
This Part is No Longer Available |
| 2 |
32-92054 |
|
|
|
|
TUBE |
1 |
|
|
| 3 |
32-92055 |
|
|
|
|
TUBE |
1 |
|
|
| 4 |
94953A1 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 7 |
10-42253"p-40464-bolt-pivot-mercruiser-10-42253.aspx">10-42253 |
|
|
|
|
BOLT |
2 |
|
|
| 8 |
14-42254 |
|
|
|
|
WASHER |
2 |
|
|
| 9 |
23-88282 |
|
|
|
|
SLEEVE |
1 |
|
This Part is No Longer Available |
| 10 |
816458A1 |
|
|
|
|
VALVE ASSEMBLY (25- 58226A 1 Seal Repair Kit) |
1 |
|
This Part is No Longer Available |
| 11 |
88280 |
|
|
|
|
ADAPTOR |
1 |
|
This Part is No Longer Available |
| 12 |
10-37612 |
|
|
|
|
SCREW, (.375-16 x 1.250) |
1 |
|
|
| 13 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
1 |
|
|
| 14 |
22-67305 |
|
|
|
|
FITTING, Grease, Old Design |
1 |
|
no longer made, limited availability |
| 15 |
10-88281 |
|
|
|
|
SCREW, (.500-20 x 1.750) |
1 |
|
This Part is No Longer Available |
| 16 |
12-20959 |
|
|
|
|
WASHER |
1 |
|
|
| 17 |
88285 |
|
|
|
|
ADAPTOR |
1 |
|
This Part is No Longer Available |
| 18 |
13-76629 |
|
|
|
|
LOCKWASHER, Internal Tooth (.750) |
1 |
|
|
| 19 |
11-55111 |
|
|
|
|
NUT |
1 |
|
This Part is No Longer Available |
| 20 |
96511 |
|
|
|
|
TUBE ASSEMBLY, Steering |
1 |
96511A1 |
|
| 21 |
88287 |
|
|
|
|
GUIDE |
1 |
|
This Part is No Longer Available |
| 22 |
11-32882 |
|
|
|
|
NUT, (.875-14) |
1 |
|
|
| 23 |
95848A1 |
|
|
|
|
CLEVIS ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 24 |
12-20086 |
|
|
|
|
WASHER, (.390 x .620 x .060) |
1 |
|
|
| 25 |
11-69254 |
|
|
|
|
NUT |
1 |
|
|
| 26 |
23-95803 |
|
|
|
|
BUSHING |
2 |
|
|
| 27 |
17-88283 |
|
|
|
|
PIN, Retaining |
2 |
|
This Part is No Longer Available |
| 28 |
23-88286 |
|
|
|
|
BUSHING |
1 |
|
This Part is No Longer Available |
| 29 |
92766 |
|
|
|
|
LOCK |
1 |
|
This Part is No Longer Available |
| 30 |
10-41209 |
|
|
|
|
SCREW |
1 |
|
This Part is No Longer Available |
| 31 |
17-89229 |
|
|
|
|
PIN, Clevis |
1 |
|
|
| 32 |
17-52798 |
|
|
|
|
PIN, Clevis |
1 |
|
|
| 33 |
18-46950 |
|
|
|
|
COTTER PIN |
2 |
|
|
| 34 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
1 |
|
|
| 35 |
18-34212 |
|
|
|
|
COTTER PIN |
1 |
|
|
| 36 |
806034A2 |
|
|
|
|
ACTUATOR ASSEMBLY, Power Steering, Complete Parts are Not Sold Separate at This Time (New Design) |
1 |
|
|
