| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

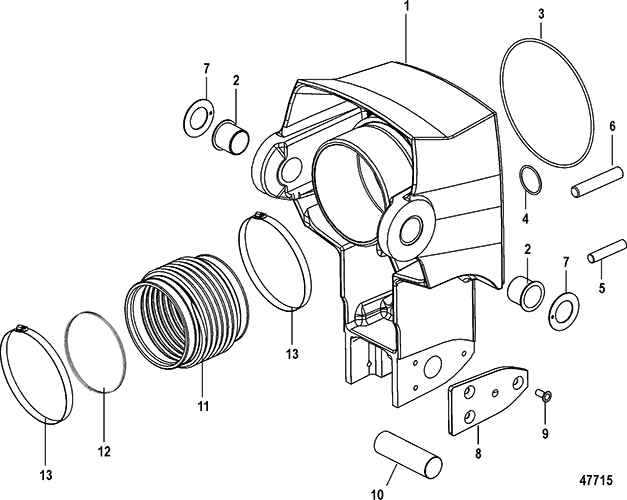

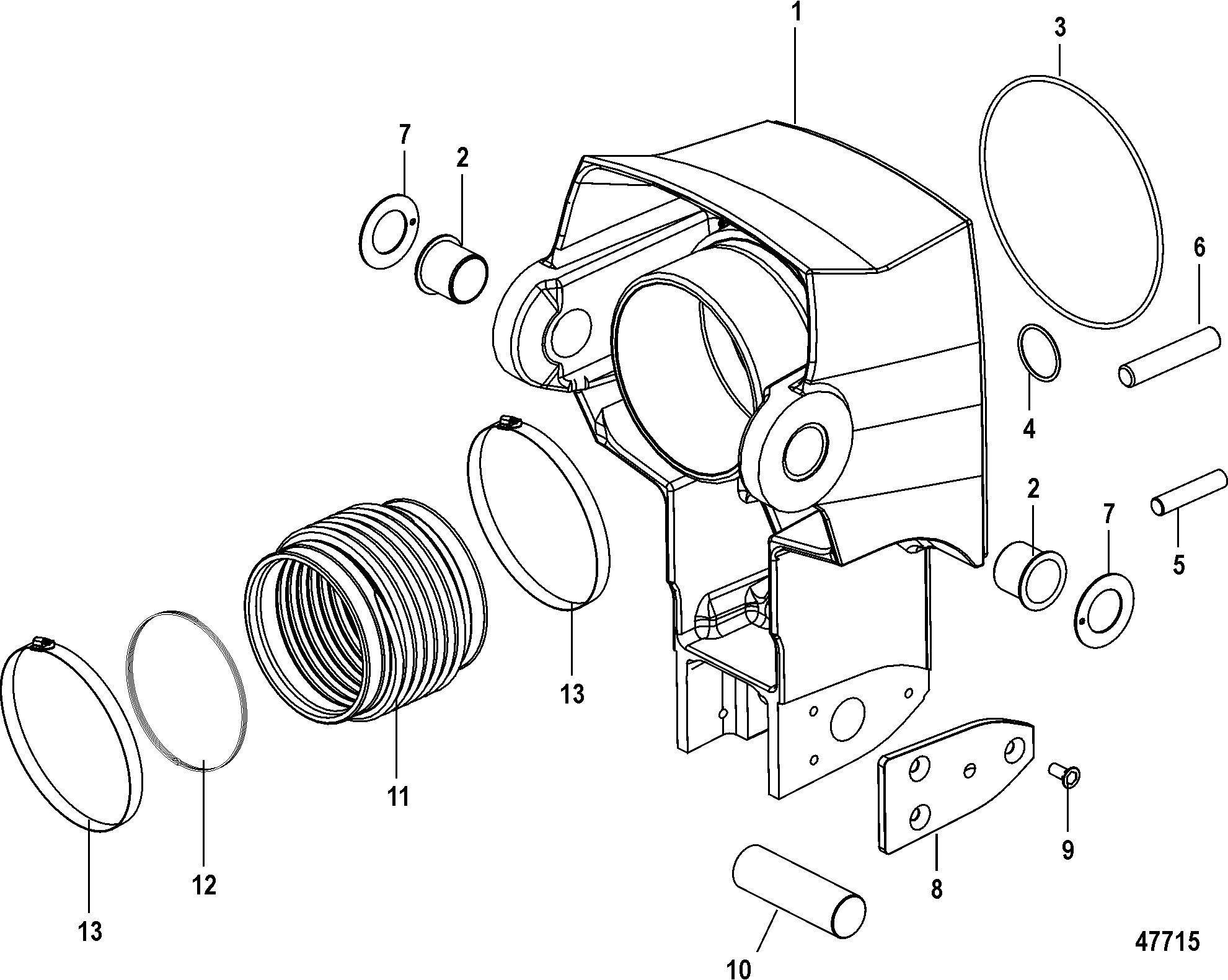

| 1 |
8M0058488 |
|
|
|
|
BELL HOUSING ASSEMBLY |
1 |
|
|
| 2 |
23-846915 |
|
|
|
|
BEARING |
2 |
|
|
| 3 |
25-846363 |
|
|
|
|
O-RING, (7.262 x .120) |
1 |
|
|
| 4 |
25-457101 |
|
|
|
525-25-457101 |
O-RING, (1.424 x .103) |
2 |
|
|
| 5 |
16-8M0007427 |
|
|
|
|
STUD, (.500-13/.500-20 x 2.440) |
2 |
|
|
| 6 |
16-846389 |
|
|
|
|
STUD, (.625-11/.625-18 x 3.310) |
6 |
|
|
| 7 |
12-8M0063236 |
|
|
|
|
THRUST WASHER, (1.25 x 2.125 x .0585) Plastic |
2 |
8M0007180 |
|
| 8 |
8M0039046 |
|
|
|
|
WEAR PAD, Tilt Housing Thrust |
2 |
|
|
| 9 |
10-11601 |
|
|
|
|
SCREW, (.312-18 x .750) Stainless Steel |
6 |
|
|
| 10 |
844324 |
|
|
|
|
PIN, Cylinder Pivot |
1 |
|
|
| 11 |
846302A1 |
|
|
|
|
BELLOWS ASSEMBLY |
1 |
|
|
| 12 |
24-846421 |
|
|
|
|
SPRING |
1 |
|
|
| 13 |
54-846428 |
|
|
|
|
CLAMP, Worm Drive |
2 |
|
|
