| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

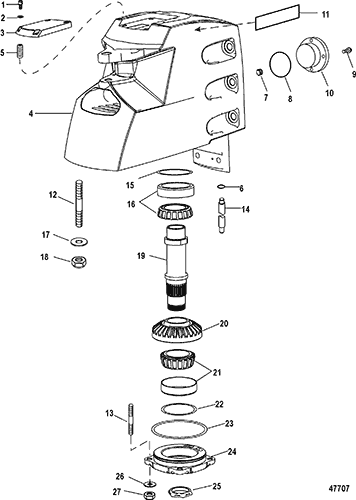

| 1 |
10-F2143 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
4 |
|
|
| 2 |
12-35950 |
|
|
|
|
WASHER, (.273 x .437 x .031) Stainless Steel |
4 |
|
|
| 3 |
8M8023746 |
|
|
|
|
COVER, Upper Housing, Anodized |
1 |
|
|
| 4 |
8M0063650 |
|
|
|
|
UPPER HOUSING ASSEMBLY, Upper |
1 |
8M8025198 |
|
| 5 |
10-8M0007167 |
|
|
|
|
SET SCREW, (.500-13 x 1.00 Tapped .250-20) |
4 |
|
|
| 6 |
25-32509 |
|
|
|
|
O-RING, (.489 x .070) |
1 |
|
|
| 7 |
22-56800 |
|
|
|
|
PLUG, Pipe (.0625-27) |
1 |
|
|
| 8 |
25-457101 |
|
|
|
|
O-RING, (1.424 x .103) |
1 |
|
|
| 9 |
10-846347 |
|
|
|
|
SCREW, (#10-32 x .625) Stainless Steel |
4 |
|
|
| 10 |
8M0010256 |
|
|
|
|
COVER, Seat Valve |
1 |
|
|
| 11 |
37-8M0048296 |
|
|
|
|
DECAL, M8 Drive |
2 |
|
|
| 12 |
16-846385 |
|
|
|
|
STUD, (.562-12/.562-18 x 3.810) |
8 |
|
|
| 13 |
16-8M0041668 |
|
|
|
|
STUD, (.437-14/.437-20 x 1.875) |
4 |
|
|
| 14 |
32-8496781 |
|
|
|
|
TUBE, Oil Transfer (2.13) |
1 |
|
|
| 15 |
15-34822A1 |
|
|
|
|
SHIM SET |
1 |
|
|
| 16 |
31-847375T1 |
|
|
|
|
BEARING SET, Cup And Cone |
1 |
|
|
| 17 |
12-844850 |
|
|
|
|
WASHER, (.660 x 1.310 x .09) Stainless Steel |
8 |
|
|
| 18 |
11-47302 |
|
|
|
|
NUT, (.562-18) Stainless Steel |
8 |
|
|
| 19 |
8M0051212 |
|
|
|
|
SHAFT, Drive |
1 |
45-847512 |
|
| 20 |
8M0051360 |
|
|
|
|
GEAR SET |
AR |
43-841171A01 |
(1.153:1) Includes 21 Tooth Pinion And 23 Tooth Gear |
| 20 |
43-843201A01 |
|
|
|
|
GEAR SET |
AR |
|
(1.24:1) Includes 23 Tooth Pinion And 27 Tooth Gear |
| 20 |
43-849175A1 |
|
|
|
|
GEAR SET |
AR |
|
(1.35:1) Includes 21 Tooth Pinion And 27 Tooth Gear |
| 20 |
43-848787A1 |
|
|
|
|
GEAR SET |
AR |
|
(1.47:1) Includes 19 Tooth Pinion And 27 Tooth Gear |
| 20 |
43-849840A1 |
|
|
|
|
GEAR SET |
AR |
|
(1.62:1) Includes 19 Tooth Pinion And 29 Tooth Gear |
| 21 |
31-847375T1 |
|
|
|
|
BEARING SET, Cup And Cone |
1 |
|
|
| 22 |
15-34822A1 |
|
|
|
|
SHIM SET |
1 |
|
|
| 23 |
25-847376 |
|
|
|
|
O-RING, (5.234 x .120) |
1 |
|
|
| 24 |
8473112 |
|
|
|
|
COVER, Bottom |
1 |
|
|
| 25 |
11-848256 |
|
|
|
|
NUT, (1.875-16) Special |
1 |
|
|
| 26 |
12-842922 |
|
|
|
|
WASHER, (.450 x .750 x .060) Stainless Steel |
4 |
|
|
| 27 |
11-34933 |
|
676-9-72004 |
|
|
NUT, (.437-20) Stainless Steel |
4 |
|
|
