| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

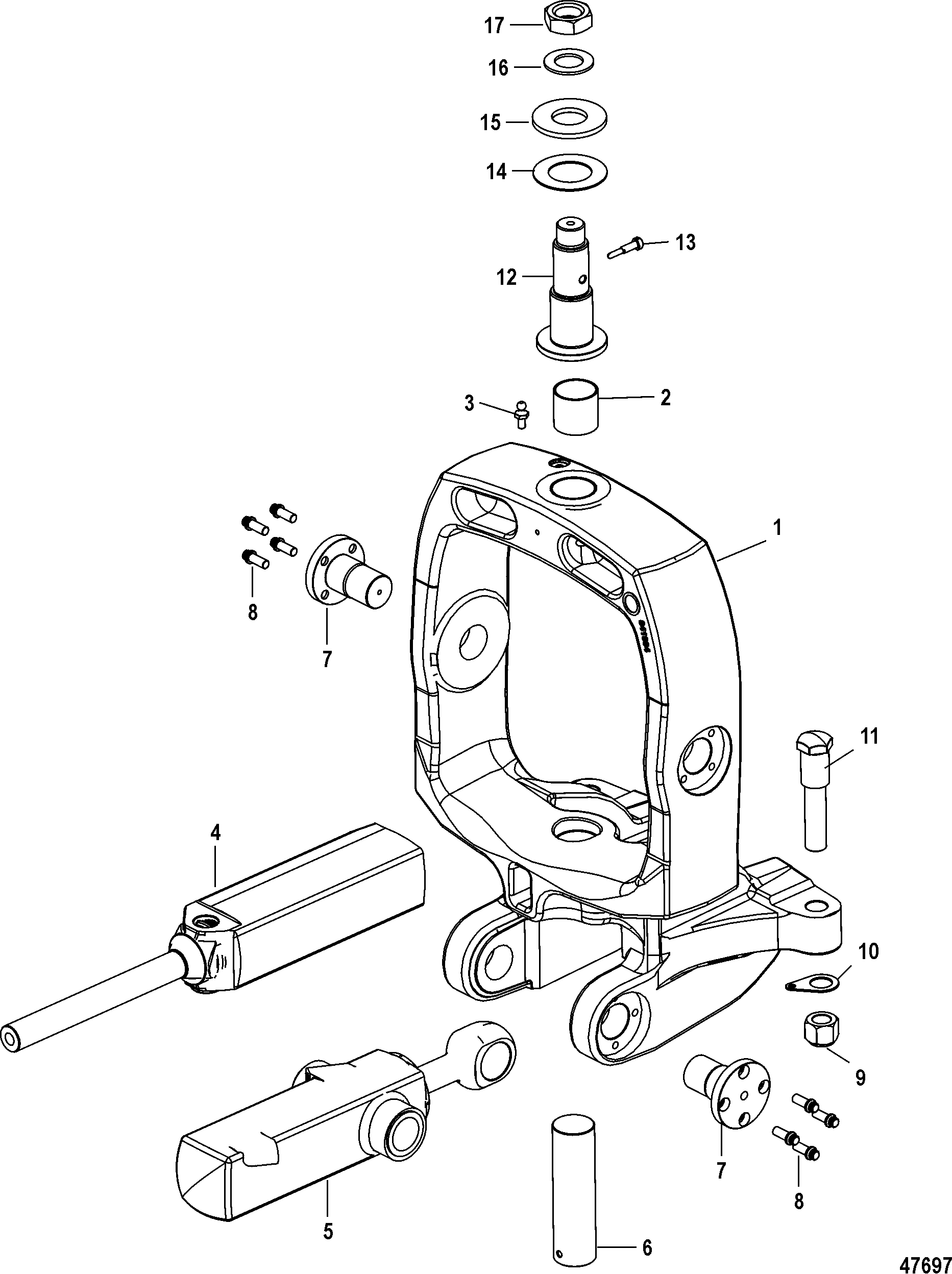

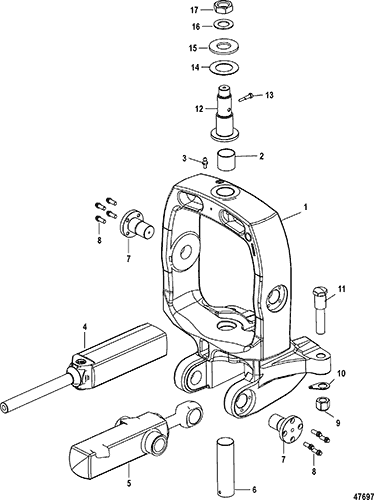

| 1 |
8M8025996 |
|
|
|
|
GIMBAL RING |
1 |
|
|
| 2 |
8M0009026 |
|
|
|
|
BALL, (.250-28 x 1.00) Stainless Steel |
1 |
|
|
| 3 |
23-846916 |
|
|
|
|
BEARING |
3 |
|
|
| 4 |
8M0073272 |
|
|
|
|
CYLINDER ASSEMBLY, Steering - Starboard |
1 |
841983A01 |
|
| 4 |
8M0073354 |
|
|
|
|
CYLINDER ASSEMBLY, Steering - Port |
1 |
841983A02 |
|
| 5 |
841962A01 |
|
|
|
|
CYLINDER ASSEMBLY, Trim |
1 |
|
|
| 6 |
8M8027382 |
|
|
|
|
PIN, Pivot |
1 |
844323T |
|
| 7 |
846433 |
|
|
|
|
PIN, Hinge |
4 |
|
|
| 8 |
10-846498 |
|
|
|
|
SCREW, (.312-18 x .750) Stainless Steel |
16 |
|
|
| 9 |
11-846853 |
|
|
|
|
NUT, (.750-16) Stainless Steel |
2 |
|
|
| 10 |
847048 |
|
|
|
|
PLATE, Ground |
2 |
|
|
| 11 |
10-846854 |
|
|
|
|
SHOULDER SCREW, (.750-16) Stainless Steel |
2 |
|
|
| 12 |
8M0051211 |
|
|
|
|
PIN, Hinge |
1 |
|
|
| 13 |
10-846348 |
|
|
|
|
SCREW, (.250-28 x 1.50) Special - Stainless Steel |
1 |
|
|
| 14 |
12-846375 |
|
|
|
|
THRUST WASHER, (1.53 x 2.62 x .06) |
1 |
|
|
| 15 |
12-846397 |
|
|
|
|
WASHER, (1.250 x 2.620 x .190) Stainless Steel |
1 |
|
|
| 16 |
12-846382 |
|
|
|
|
WASHER, (1.015 x 1.750 x .096) Stainless Steel |
1 |
|
|
| 17 |
11-846391 |
|
|
|
|
NUT, (1.00-16) Stainless Steel |
1 |
|
|
