| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

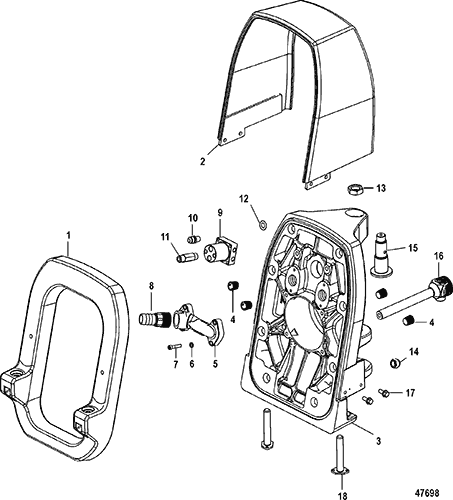

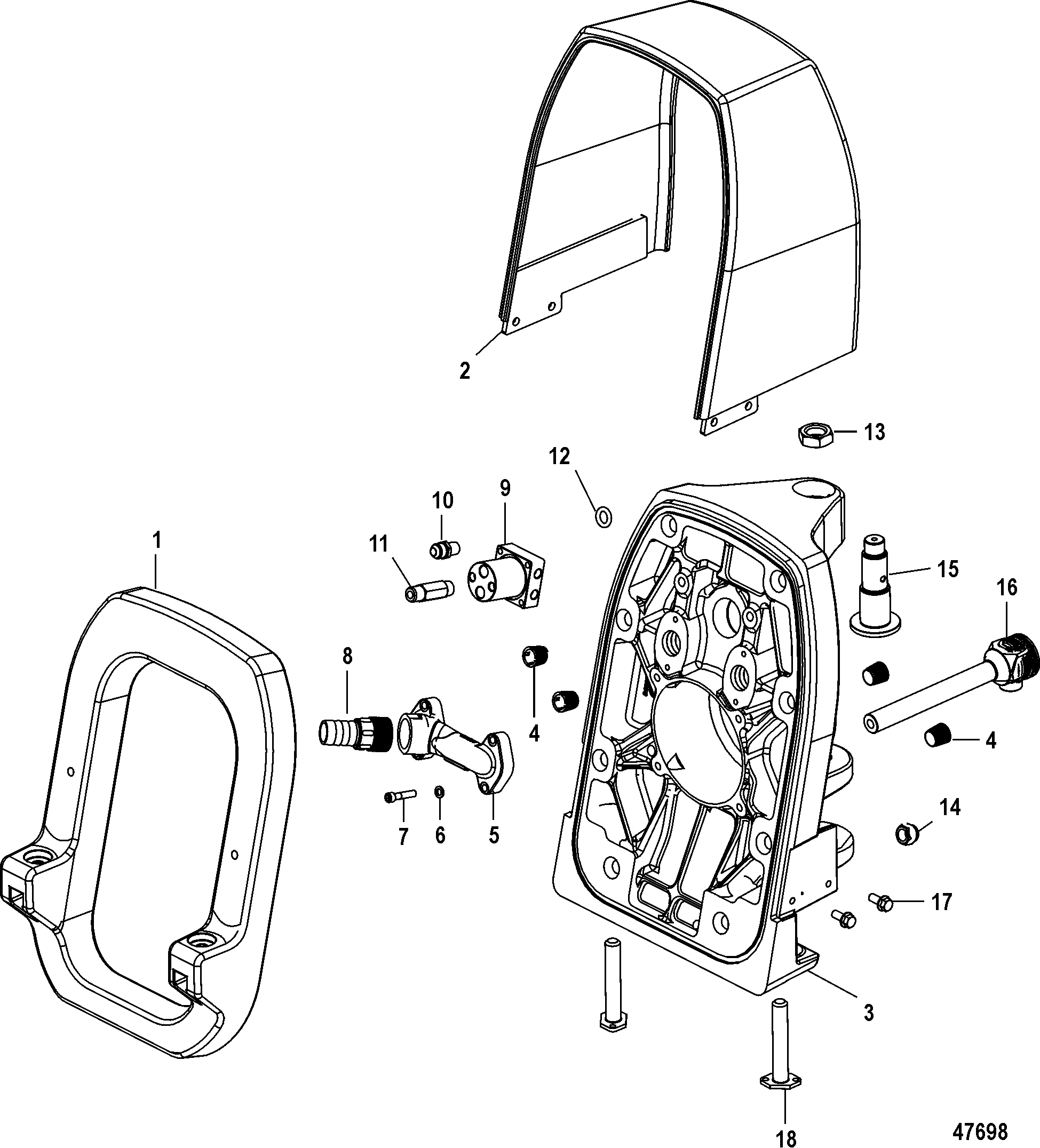

| 1 |
841955001 |
|
|
|
|
TRANSOM PLATE, Inner |
1 |
|
|
| 2 |
8M0050504 |
|
|
|
|
COWL ASSEMBLY, Transom |
1 |
|
|
| 3 |
8M8025995 |
|
|
|
|
TRANSOM ASSEMBLY, Outer |
1 |
|
|
| 4 |
41674T |
|
|
|
|
INSERT |
4 |
|
|
| 5 |
841995001 |
|
|
|
|
MANIFOLD, Water |
1 |
|
|
| 6 |
12-843108 |
|
|
|
|
WASHER, (.330 x .560 x .060) Stainless Steel |
4 |
|
|
| 7 |
10-823029 |
|
|
|
|
SCREW, (.312-18 x 1.500) Stainless Steel |
4 |
|
|
| 8 |
22-8M0051041 |
|
|
|
|
FITTING |
1 |
|
|
| 9 |
8M0053621 |
|
|
|
|
BLOCK, Connector Drive |
1 |
844333 |
|
| 10 |
22-846865 |
|
|
|
|
FITTING, (.375-18/.750-16 x 1.53) |
1 |
|
|
| 11 |
22-8M0053634 |
|
|
|
|
FITTING, (.375-16/.375-18 x 2.750) |
1 |
|
|
| 12 |
25-8M0000668 |
|
|
|
|
O-RING, (.600 x .210) |
6 |
|
|
| 13 |
11-846391 |
|
|
|
|
NUT, (1.00-16) Stainless Steel |
1 |
|
|
| 14 |
11-47379 |
|
|
|
|
NUT, (.625-18) Stainless Steel |
6 |
|
|
| 15 |
8M0051211 |
|
|
|
|
PIN, Hinge |
1 |
|
|
| 16 |
8M0073272 |
|
|
|
|
CYLINDER ASSEMBLY, Steering - Starboard |
1 |
841983A01 |
|
| 16 |
8M0073354 |
|
|
|
|
CYLINDER ASSEMBLY, Steering - Port |
1 |
841983A02 |
|
| 17 |
10-805559 |
|
|
|
|
SCREW, (.375-16 x .875) Stainless Steel |
4 |
|
|
| 18 |
844322 |
|
|
|
|
PIN, Cylinder Pivot |
2 |
|
|
