500 EFI - Serial 0L306500 Thru 0L307027 - Fuel Rails And Injectors

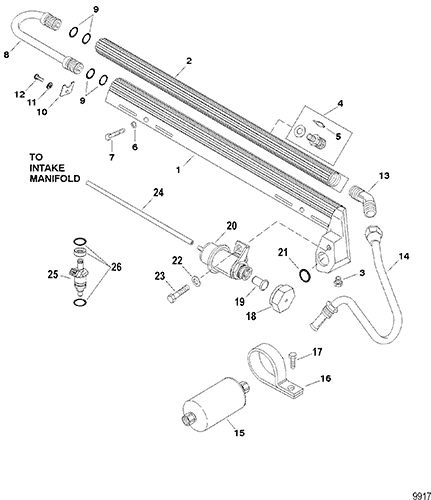

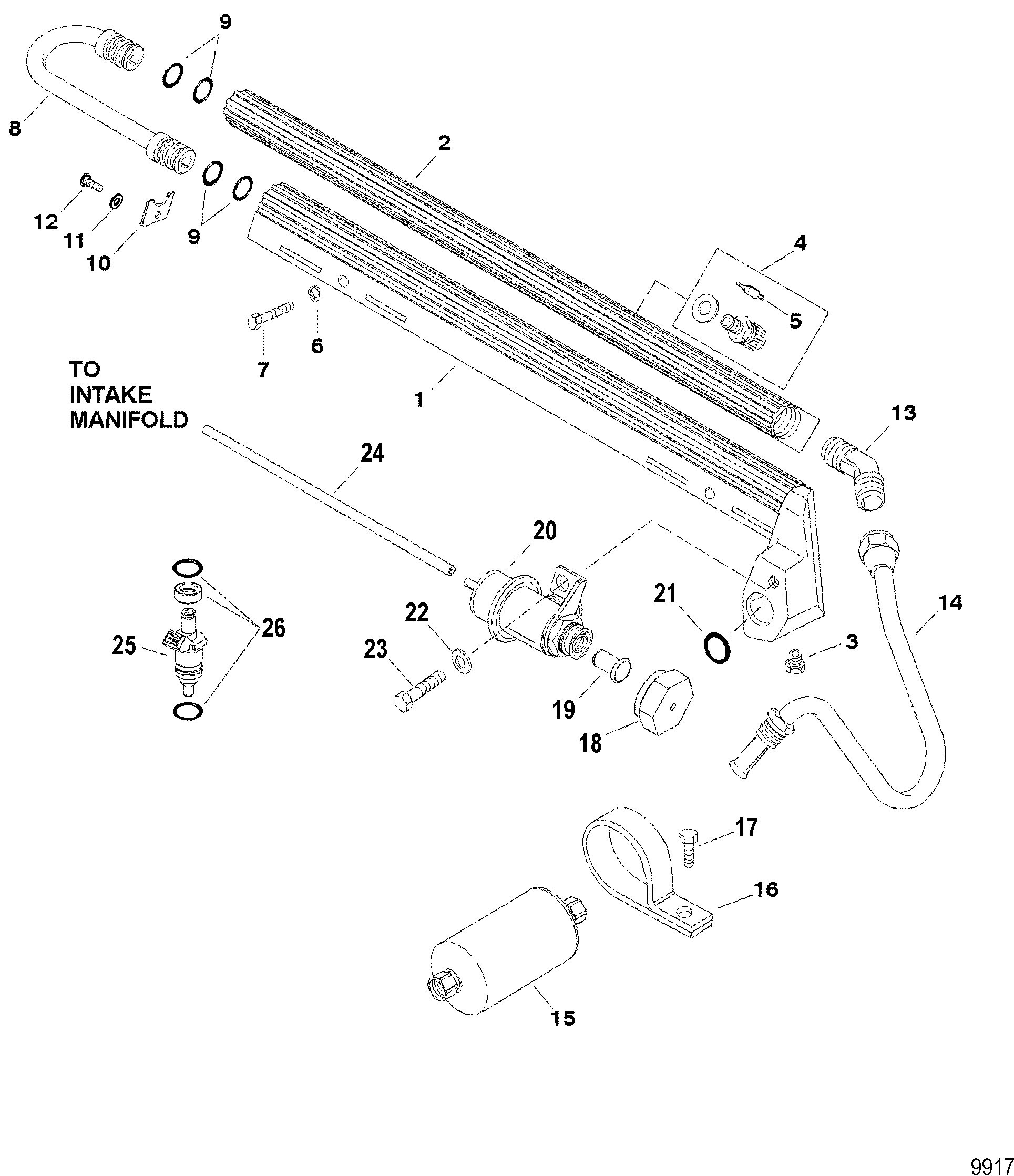

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock(Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight - 1.125 Inch Water Outlet
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul(27-842129A 1)
- Harness Assembly (EFI Wiring)
- Intake Manifold - Plenum And Components
- Monitor Assembly(Drive Lube)
- Mount Plates - Engine
- Oil Cooler And Oil Filter(Engine)
- Oil Cooler(Transmission)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components(Design I And Design II)
- Power-Assisted Steering Components(Design III)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo - Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849897 | FUEL RAIL, Port | 1 | 849897T | |||||
| 2 | 849898T1 | FUEL RAIL ASSEMBLY, Starboard | 1 | ||||||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 1 | |||||
| 4 | 22-845260A1 | VALVE KIT, Schrader | 1 | ||||||
| 5 | 22-802631 | VALVE AND CAP KIT | 1 | ||||||
| 6 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | ||||||
| 7 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel | 4 | ||||||
| 8 | 32-849971A02 | LINE KIT, Fuel, Rail To Rail | 1 | 32-849971A1 | |||||
| 9 | 25-849922 | O-RING, Special | 4 | 2 | |||||
| 10 | 849923 | RETAINER, Fuel Line | 2 | ||||||
| 11 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 12 | 10-847401 | SCREW, (#10-24 x .380) | 2 | ||||||
| 13 | 22-843297 | FITTING, (45 Degree) | 1 | ||||||
| 14 | 32-849931T | LINE, Fuel, Fitler To Rail | 1 | ||||||
| 15 | 35-807174T | FILTER, Fuel | 1 | ||||||
| 16 | 54-18904 | CLIP, Fuel Filter | 1 | ||||||
| 17 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 18 | 849926 | CAP | 1 | This Part is No Longer Available | |||||
| 19 | 19-849925 | PLUG | 1 | ||||||
| 20 | 849899 | 676-9-33202 | REGULATOR ASSEMBLY | 1 | |||||
| 21 | 25-841445 | O-RING | 1 | This Part is No Longer Available | |||||
| 22 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 1 | ||||||
| 23 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 1 | ||||||
| 24 | 32-8M0063567 | HOSE, (52.00 Inches Bulk), Cut 11.00 Inches | 1 | 32-80617379 | |||||
| 25 | 8M0051200 | INJECTOR ASSEMBLY, Fuel | 8 | 849896 | |||||
| 26 | 25-8M0070081 | O-RING KIT, Fuel Injector | AR | 25-842130A1 | 2 | ||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set Parts Section For Complete Parts Listing |
