500 EFI - Serial 0L306500 Thru 0L307027 - Senders And Sensors

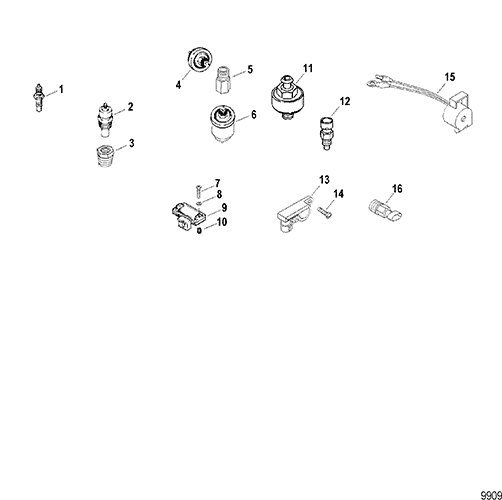

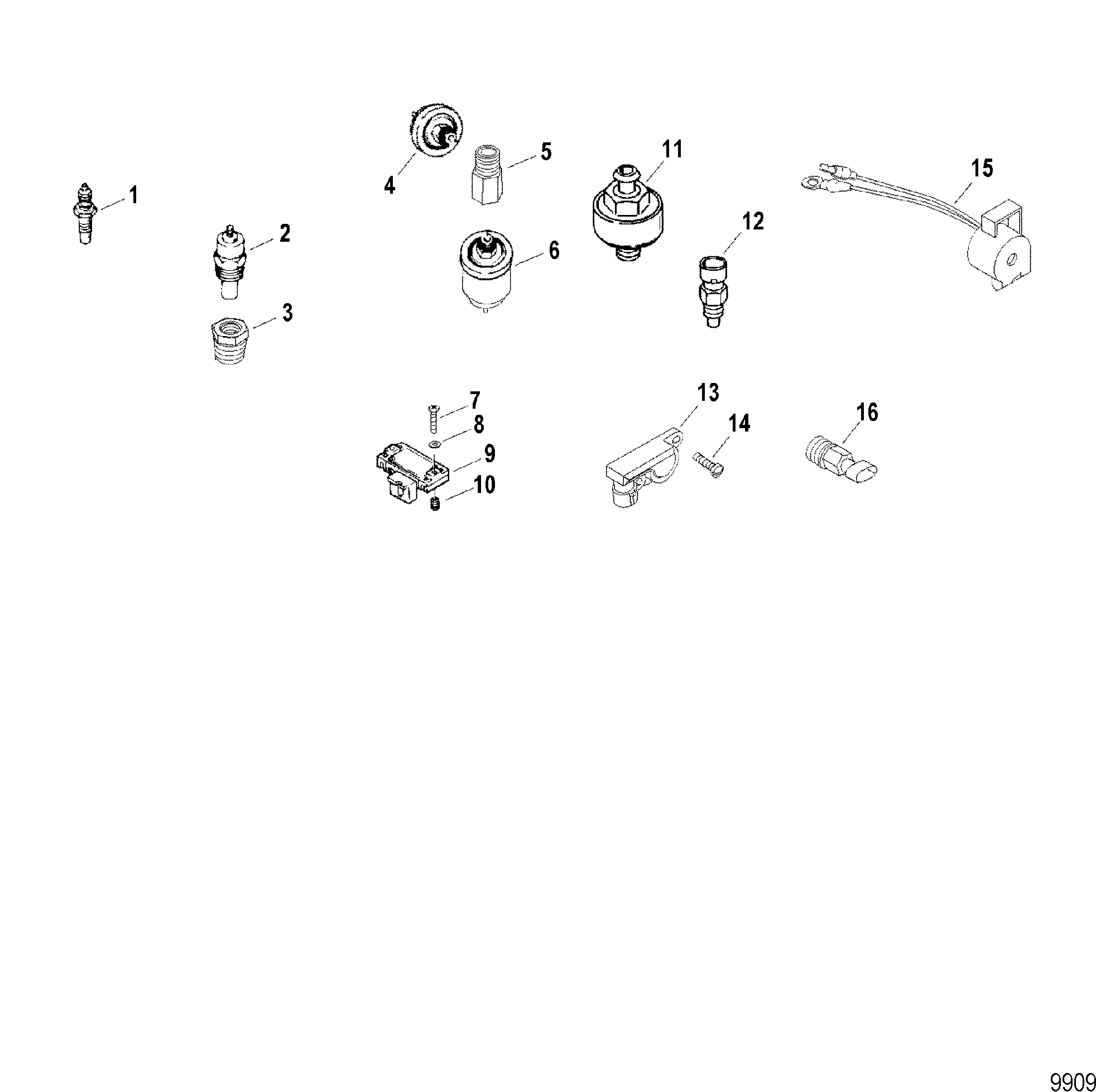

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8493631



SENDER ASSEMBLY, Oil Temperature 1

2 806490T
676-9-42400

SENDER ASSEMBLY, Water Temperature 1 97257A1
3 23-848552



BUSHING, Coolant Sensor To Plenum 1

4 87-805605A1



SWITCH ASSEMBLY, Engine Block Pressure 1

5 22-843300



FITTING, Street Tee 1

6 8M0068784



SENDER ASSEMBLY, Oil Pressure 1 87-815425T
7 10-66686

700-22311
SCREW, (#10-32 x 1.00) 2

8 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2

9 864856A1
676-9-33601

SENSOR ASSEMBLY, Manifold Absolute Pressure 1 805217A1
10 805544T
676-9-33500

SENSOR ASSEMBLY, Knock 1

11 26-805412



SEAL 1
12 805218T
676-9-42402

SENSOR, Coolant 1
13 849903



SENSOR, Throttle Position 1
14 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2
15 816492A6



ALARM KIT, Audio Warning - Remote Mounted 1
16 805223T



SENSOR, Intake Air Pressure 1
