500 EFI - Serial 0L306500 Thru 0L307027 - Starter And Alternator Mounting

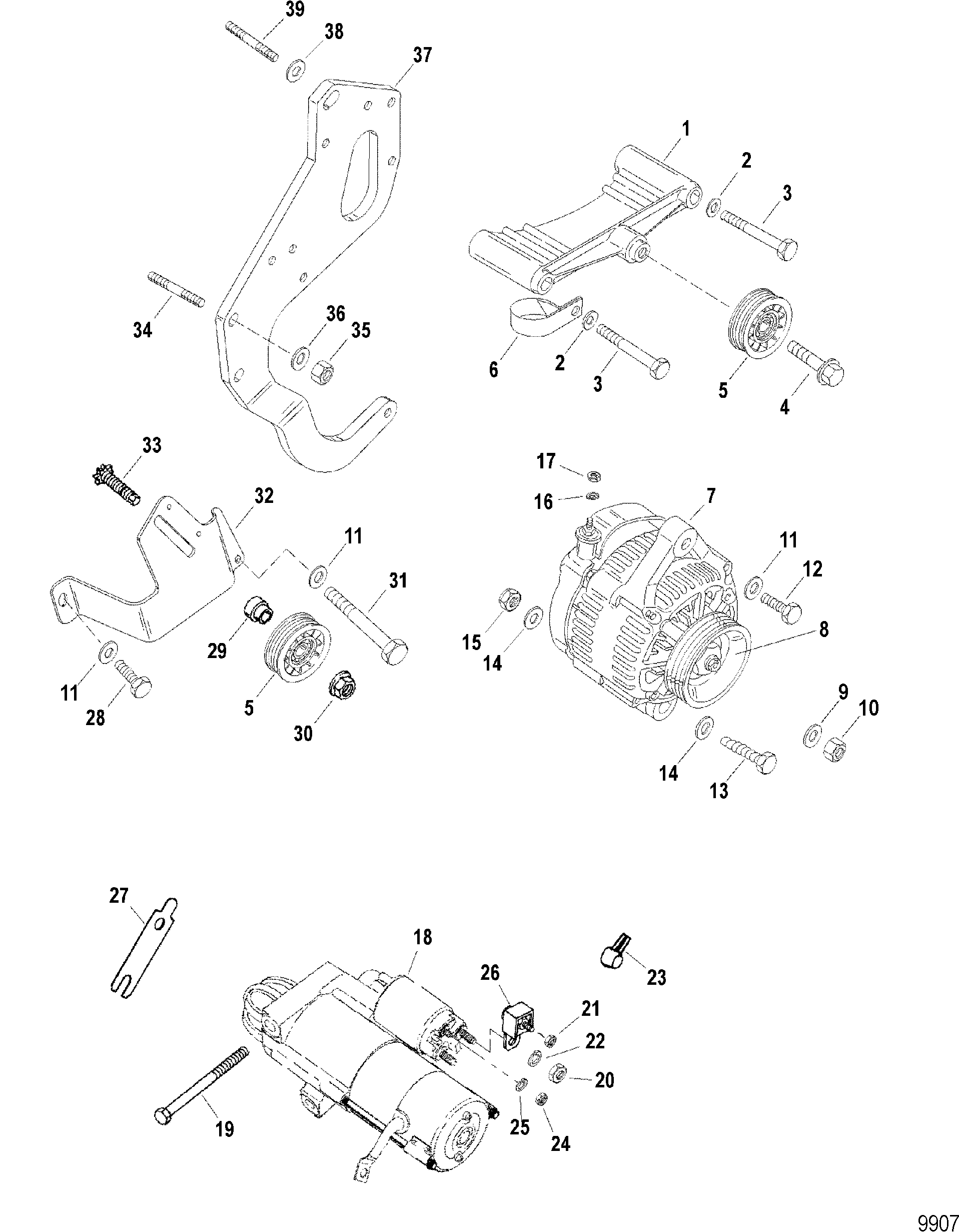

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849297T1



BRACKET, Idler Pulley, Idler Pulley 1
Non Power Steering Models
2 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 2
Non Power Steering Models
3 10-840244



SCREW, (.375-16 x 3.375) Stainless Steel 2
Non Power Steering Models
4 10-82130130



SCREW, (M10 x 30) 1
Non Power Steering Models
5 864625T



PULLEY ASSEMBLY, Idler - Black 1 849296T Power Steering Models
5 864625T



PULLEY ASSEMBLY, Idler - Black 2 849296T Non Power Steering Models
6 54-62494



CLIP, Cooler Hose To Circulating Pump 1
Non Power Steering Models
7 8M8023423



ALTERNATOR ASSEMBLY, Blue, Version I - Service Complete 1 875285T2
7 8M8023423



ALTERNATOR ASSEMBLY, Blue, Version II - Service Complete 1 875285T4
7 8M8023423


602-20116 ALTERNATOR ASSEMBLY, Blue, Version III - Service Complete 1 881248T02
7 8M8023423
676-9-19112
602-20116 ALTERNATOR ASSEMBLY, Blue, Version IV - Service Complete 1 889955T01
8 842421T



PULLEY, Blue, Alternator 1

9 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel, Thrust - For Pulley 1

10 11-401386



NUT, (M6), For Pulley 1 11-8268336
11 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 3

12 10-849397



SCREW, (.375-16 x 3.250) Stainless Steel 1

13 10-69267



SCREW, (.312-18 x 1.750) 1

14 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 2

15 11-82670910



NUT, (.312-18) Stainless Steel 1

16 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 1

17 11-401386



NUT, (M6) Stainless Steel 1

18 50-8M8021116


602-10105 STARTER MOTOR ASSEMBLY 1
NOTE: See Starter Assembly Section For Parts Breakdown
19 10-8053432



SCREW, (.375-16 x 4.33) 2

20 11-401388



NUT, (M8) Stainless Steel 1

21 11-826709109


525-11-826709109 NUT, (.250-28) Stainless Steel 1

22 13-39107

700-21496
LOCKWASHER, (.312-24) 1

23 85-79695T



BOOT, Insulator - Black 1 85-79695
24 11-400211



NUT, (M5) Stainless Steel 1

25 13-26996



LOCKWASHER, (#10) Stainless Steel 1

26 88-79023A91
676-9-15510

FUSE ASSEMBLY, 90 Ampere 1

27 15-8172721



SHIM, Special 1

28 10-94247


525-10-94247 SCREW, (.375-16 x .750) Stainless Steel 1

29 845117



BUSHING 1

30 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 1

31 10-843575



SCREW, (.375-16 x 4.00) Stainless Steel 1

32 845124T1



BRACKET, Tensioner 1

33 43-8183812



PINION STUD, (.437-20) Stainless Steel 1

34 16-579203


525-16-579203 STUD, (.437-14/.437-20 x 2.060) 2

35 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 4

36 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 4

37 849905T



BRACKET, Alternator/Power Steering Mount 1

38 12-861854


525-12-861854 WASHER, (.453 x .750 x .032) Stainless Steel, Used As Shim 1

39 16-842441



STUD, (.437-14/.437-20 x 2.250) 1
Power Steering Models
39 16-579203


525-16-579203 STUD, (.437-14/.437-20 x 2.060) 1
Non Power Steering Models
