500 EFI - Serial 0L306500 Thru 0L307027 - Intake Manifold - Plenum And Components

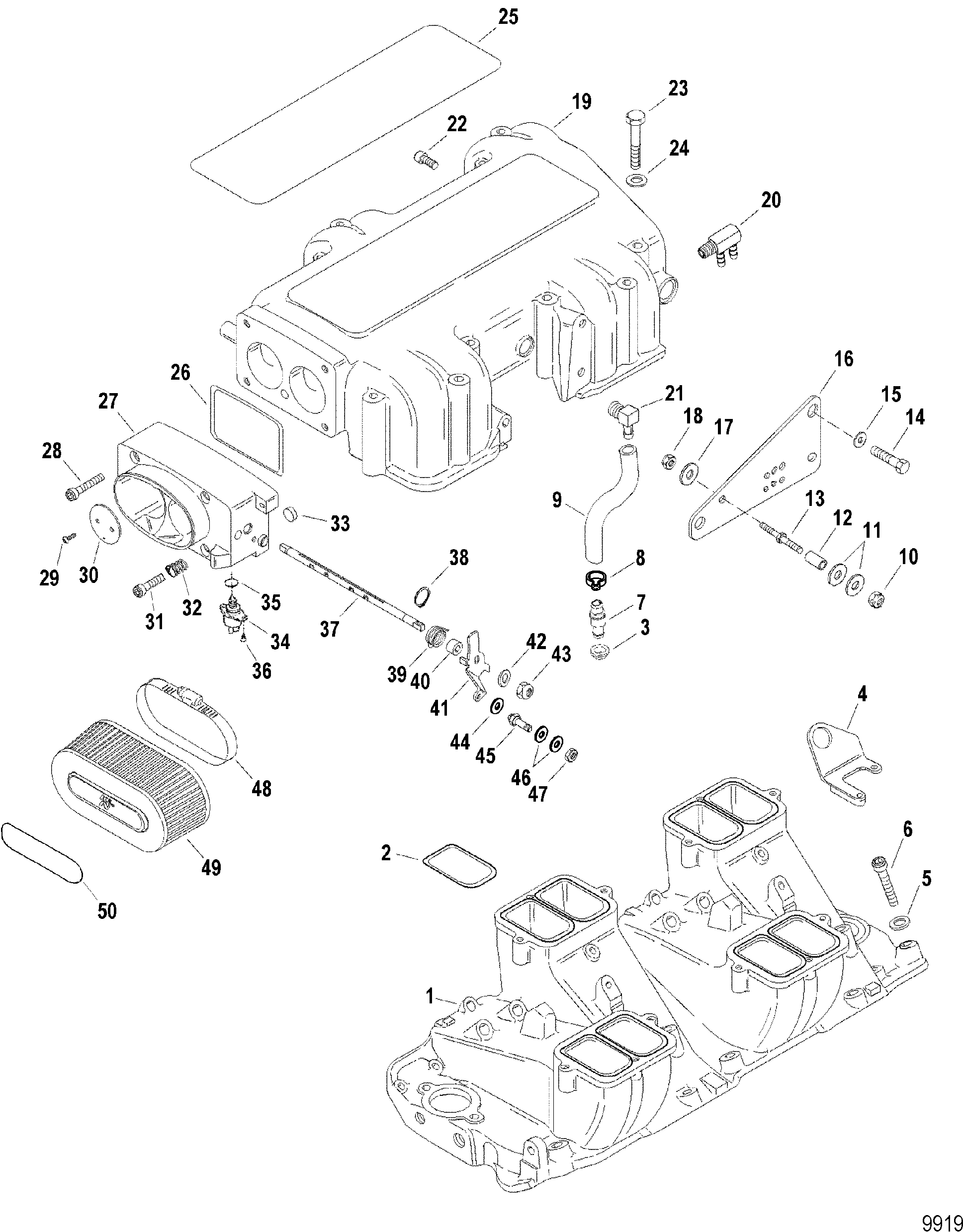

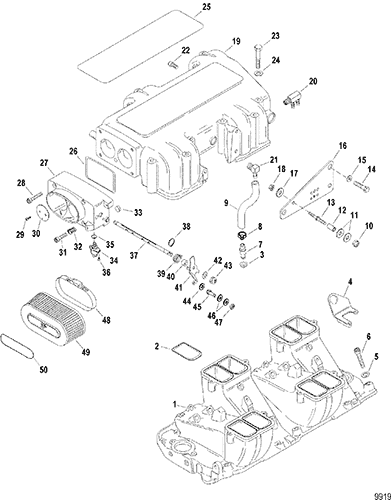

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849900T3



MANIFOLD ASSEMBLY, Intake - Blue 1

2 25-805732



O-RING, (2.612 x .103) 8
2
3 25-811553



GROMMET, Intake Manifold 1
2
4 54-8499981



LIFTING EYE, Black 2

5 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 16
5
6 10-822168



SCREW, (.375-16 x 1.750) Stainless Steel 8
5
6 10-842787



SCREW, (.375-16 x 2.00) 2 10-47432 5
6 10-847919



SCREW, (.375-16 x 2.250) 2
5
6 10-849994



SCREW, (.375-16 x 5.250) 4
5
7 848578



VALVE ASSEMBLY, Crankcase Vent 1

8 54-848764



CLAMP, (21 mm) 1

9 32-844172019



HOSE, (7.00 Inches) 1

10 11-826709109


525-11-826709109 NUT, (.250-28) Stainless Steel 1

11 12-69056



WASHER, (.255 x .625 x .0312) 2 12-21631
12 23-31866



SPACER, (.256 x .313 x .625) 1

13 16-96112



STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

14 10-90285



SCREW, (.312-18 x .625) 3

15 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 3

16 849888T



BRACKET, Throttle Anchor 1

17 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 1

18 11-35888
676-9-72001 700-21180
NUT, (.250-28) Stainless Steel 1

19 849902A6



PLENUM ASSEMBLY, Blue 1 849902T5
20 22-841435



FITTING, 90 Degree - Double 1

21 22-687271
676-9-38024

FITTING, (.250-18) 90 Degree - Brass, To PVC Valve 1

22 10-F1077



SCREW, (#10-24 x .250) 1
This Part is No Longer Available
23 10-71319



SCREW, (.250-20 x 3.750) 12

24 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 12

25 849948T



NAMEPLATE, Plenum 1 38-843342T This Part is No Longer Available
26 25-57413



O-RING, (3.987 x .103) 1
2
27 841251T3



THROTTLE BODY ASSEMBLY, Blue 1

28 10-844997



SCREW, (M8 x 60) 4

29 10-840118



SCREW, (#8-32 x .380), Throttle Plate 4

30 849887



PLATE, Throttle 2

31 10-842127



SCREW, (#10-32 x .750) Stainless Steel 1

32 24-27160



SPRING 1

33 19-840184



EXPANSION PLUG 3
This Part is No Longer Available
34 805224A1
676-9-33401

MOTOR ASSEMBLY, IAC 1

35 25-808547



O-RING 1
2
36 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2

37 849889



SHAFT, Throttle 1

38 53-92170



RING, Snap 2

39 24-844226



SPRING, Throttle Return 1

40 23-849992



SPACER, Throttle Body 1

41 845577



ARM, Throttle 1

42 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 1

43 11-826709113



NUT, (.375-24) Stainless Steel 1

44 12-35950



WASHER, (.273 x .437 x .031) Stainless Steel 1

45 16-805526



STUD, (.250-28 x 1.540) 1

46 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 2

47 11-826709109


525-11-826709109 NUT, (.250-28) Stainless Steel 1

48 54-1807613



CLAMP, Worm Gear 1

49 840210T1



ARRESTOR, Flame 1 840210T
50 37-843484



DECAL, Mercury Racing 1

- 27-842129A1



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set Parts Section For Complete Parts Listing
