1025 SCi - Serial 0M962886 and Up - Electrical Components (Ignition Coils)

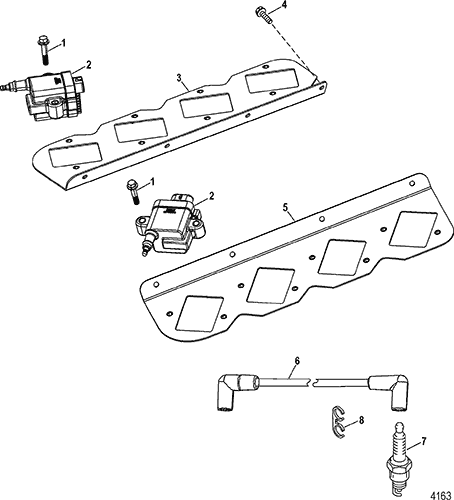

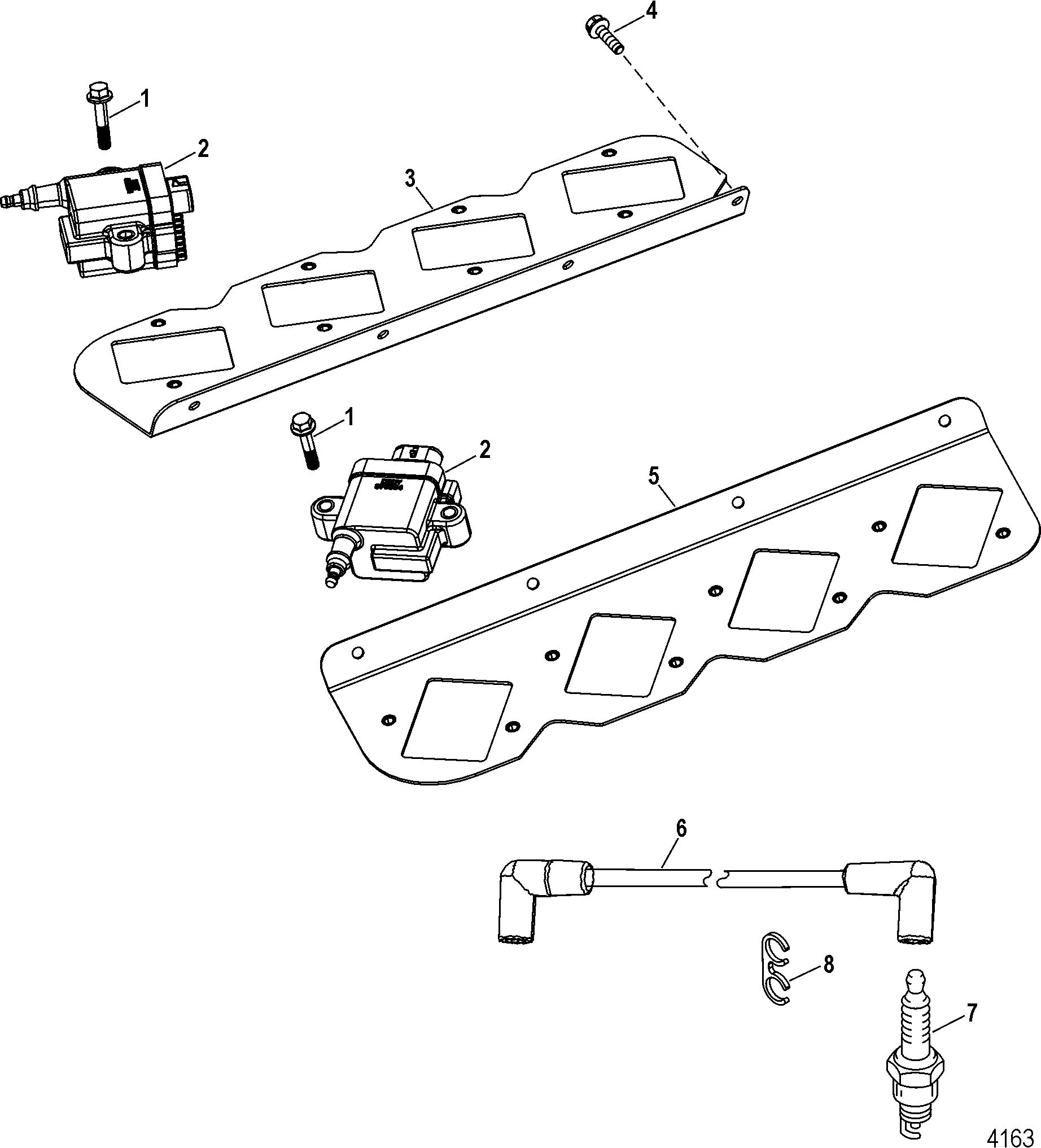

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850 -1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 16 | ||||||
| 2 | 300-8M0077471 | COIL, Ignition | 8 | 339-879984T00 | |||||
| 3 | 842891 | BRACKET, Coil Mount, Port | 1 | ||||||
| 4 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 8 | ||||||
| 5 | 842892 | BRACKET, Coil Mount, Starboard | 1 | ||||||
| 6 | 84-842393A03 | CABLE ASSEMBLY, Ignition (26.00 Inches) | 4 | ||||||
| 6 | 84-842393A04 | CABLE ASSEMBLY, Ignition (35.00 Inches) | 4 | ||||||
| 7 | 33-843825 | SPARK PLUG, NGK #BR9ECS | 8 | 850/1025/1075 5 | |||||
| 7 | 33-840697 | SPARK PLUG, (CHAMPION # C53CX) | 8 | 1200 5 | |||||
| 8 | 54676 | RETAINER, Two Wire | 16 | ||||||
| - | 841350A07 | PARTIAL ENGINE ASSEMBLY | 1 | 850 | |||||
| - | 841000A17 | PARTIAL ENGINE ASSEMBLY | 1 | 1025/1075 | |||||
| - | 841950A07 | PARTIAL ENGINE ASSEMBLY | 1 | 1200 |
