1025 SCi - Serial 0M962886 and Up - Electrical Components (Starter Motor)

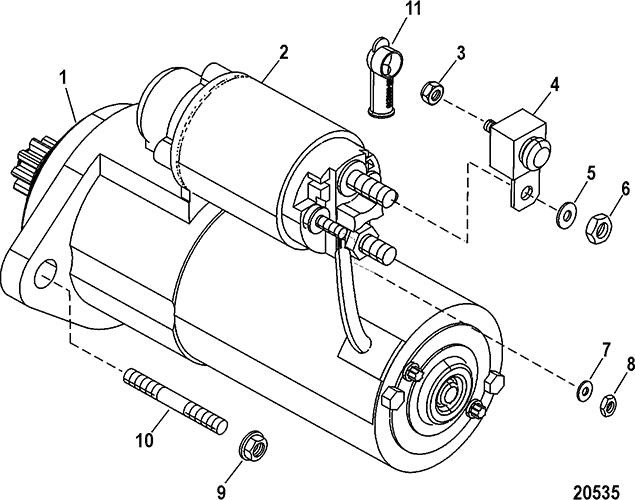

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850 -1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 50-808011A05 | STARTER MOTOR ASSEMBLY | 1 | ||||||
| 2 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT | 1 | ||||
| 3 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 4 | 832969T01 | FUSE ASSEMBLY, 110 Ampere | 1 | ||||||
| 5 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 1 | ||||||
| 6 | 11-401388 | NUT, (M8) Stainless Steel | 1 | ||||||
| 7 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 1 | ||||||
| 8 | 11-401365 | NUT, (M5) Stainless Steel | 1 | ||||||
| 9 | 11-859135 | NUT, (.437-20) Brass/Nickel Plated | 2 | ||||||
| 10 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 2 | ||||||
| 11 | 85-830233 | BOOT, Insulator - Red | 1 |
