1025 SCi - Serial 0M962886 and Up - Oil Filter Adaptor And Components

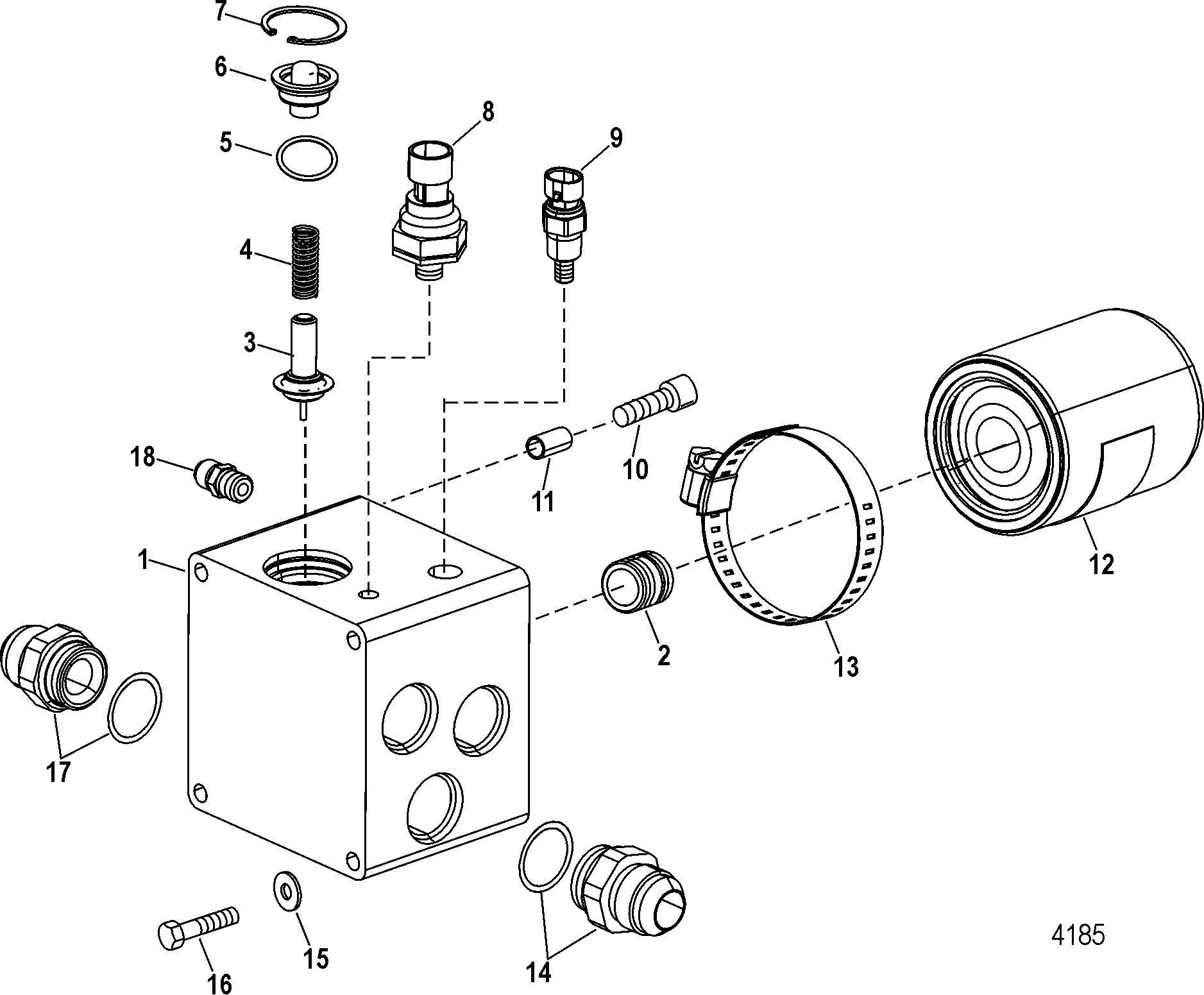

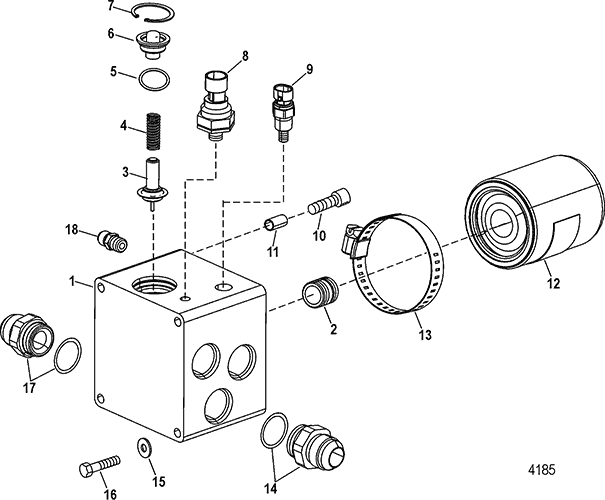

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850 -1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840662 | ADAPTOR, Oil Filter | 1 | ||||||
| 2 | 8M0050915 | COUPLER, Oil Filter Base | 1 | 849745 | |||||
| 3 | 816163 | THERMOSTAT | 1 | ||||||
| 4 | 24-816162 | SPRING | 1 | ||||||
| 5 | 25-864701 | O-RING, (1.112 x .103) | 1 | ||||||
| 6 | 8161651 | COVER, Oil Thermostat | 1 | ||||||
| 7 | 53-848571 | RING, Retaining | 1 | ||||||
| 8 | 881879T11 | SENSOR, Pressure (0 - 100 PSI) | 1 | 881879011 | |||||
| 9 | 805218T | 676-9-42402 | SENSOR, Temperature | 1 | |||||
| 10 | 10-92702 | SCREW, (.250-28 x .875) | 1 | ||||||
| 11 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | ||||||
| 12 | 35-840634K01 | FILTER, Oil | 1 | ||||||
| 13 | 54-18076017 | CLAMP, Worm Gear | 1 | ||||||
| 14 | 22-8M0010560 | FITTING ASSEMBLY, Stainless Steel - With O-Ring | 3 | ||||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | ||||||
| 16 | 10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 3 | ||||||
| 17 | 22-8M0010560 | FITTING ASSEMBLY, Stainless Steel - With O-Ring | 2 | ||||||
| 18 | 22-840009 | CONNECTOR | 1 |
