1025 SCi - Serial 0M962886 and Up - Power-Assisted Steering Components

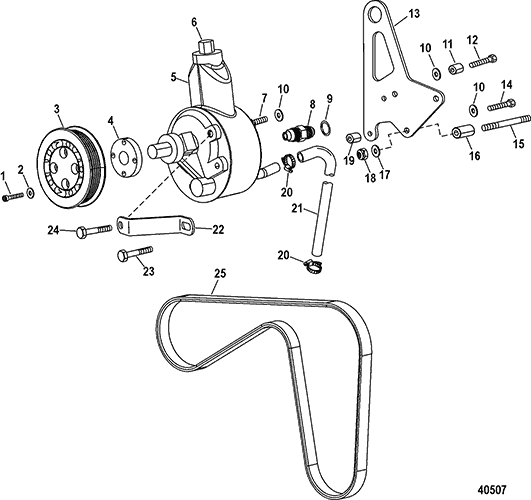

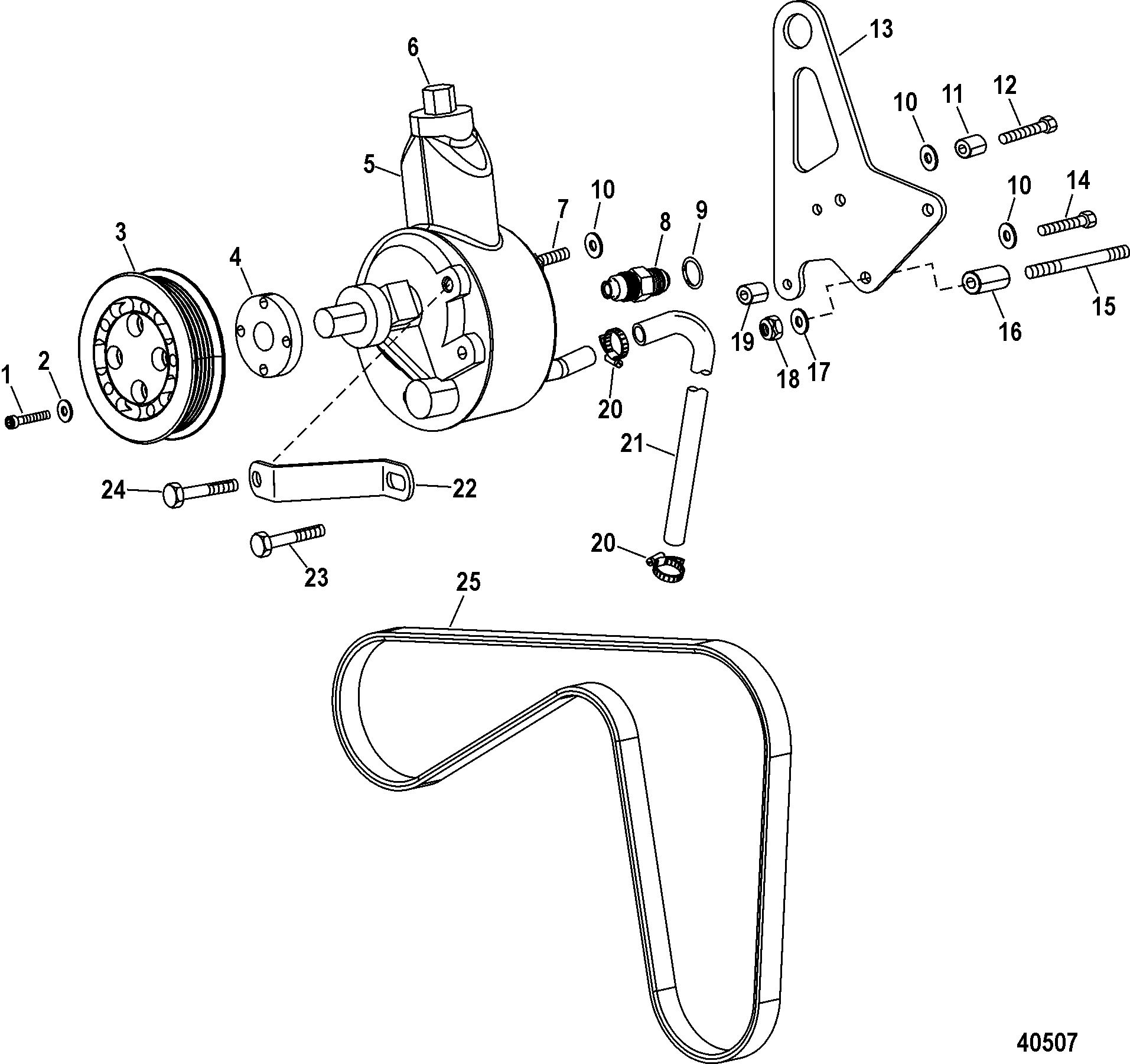

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket -Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850 -1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 2 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 3 | 842622001 | PULLEY, Power-Assisted Steering - Blue | 1 | ||||||
| 4 | 47530 | HUB | 1 | ||||||
| 5 | 90507T19 | PUMP ASSEMBLY, Power Steering | 1 | ||||||
| 6 | 22-32803 | PLUG, Pipe (.375-18) Brass | 1 | ||||||
| 7 | 16-41877 | STUD, (M10) | 1 | ||||||
| 8 | 22-844351 | ADAPTER, Stainless Steel | 1 | ||||||
| 9 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | ||||||
| 11 | 23-8M0030225 | SPACER, (.406 x .920 x .325) | 1 | ||||||
| 12 | 10-40001200 | SCREW, (M10 x 40) | 1 | ||||||
| 13 | 8M8021181 | LIFTING EYE, Polished | 1 | ||||||
| 14 | 10-40001197 | SCREW, (M10 x 35) | 1 | ||||||
| 15 | 16-8M0010481 | STUD, (.375-16/.375-24 x 3.13) Stainless Steel | 2 | ||||||
| 16 | 23-841459 | SPACER, (.400 x .750 x 1.338) Aluminum - Black | 2 | ||||||
| 17 | 12-74759 | WASHER, (.391 x .880 x .125) Stainless Steel | 2 | ||||||
| 18 | 11-82671013 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 19 | 23-8M0030226 | SPACER, (.406 x .920 x .560) | 1 | ||||||
| 20 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 2 | ||||||
| 21 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut As Required | 1 | 32-5251914 | |||||
| 22 | 8M0031613 | BRACE, Pump Mounting | 1 | ||||||
| 23 | 10-846294 | SCREW, (.375-16 x 1.500) Stainless Steel | 1 | ||||||
| 24 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 25 | 57-842647Q | BELT | 1 |
