500 Bulldog - Serial 0K000248 Thru 0L001607 - Exhaust Manifold And Elbow

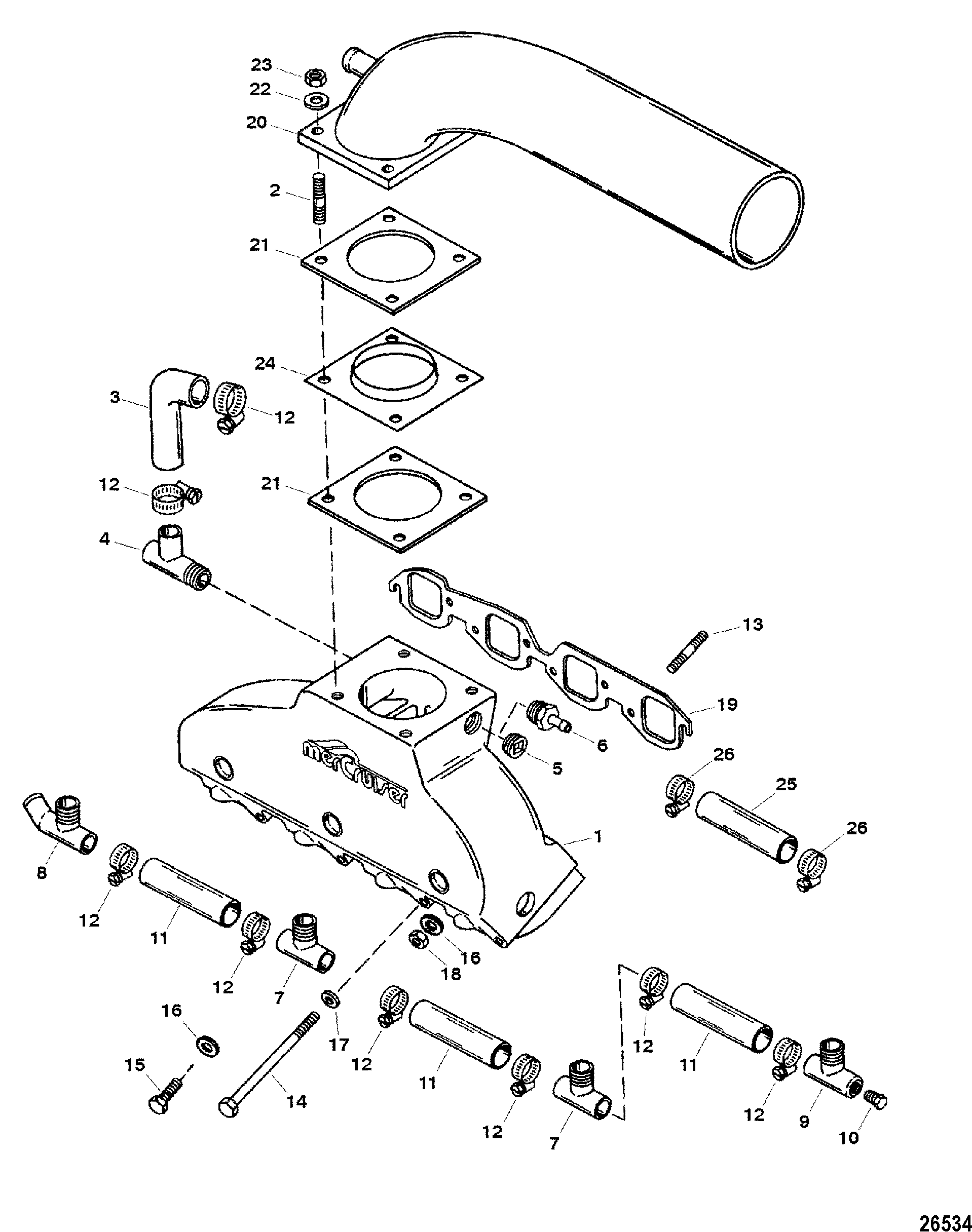

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0084206         MANIFOLD ASSEMBLY, Exhaust - Port 1 814901A5
1 814901T6         MANIFOLD ASSEMBLY, Exhaust - Starboard 1 814901A6
2 16-815214         STUD 8

3 32-8152121         HOSE, Molded - Manifold To Exhaust Pipe 2

4 22-816035         FITTING 2

5 19-815203         PLUG, Pipe 2

6 22-818768         FITTING, Straight 2

7 22-815208         FITTING, Tee 4   This Part is No Longer Available
8 22-815210         FITTING, Tee 2   This Part is No Longer Available
9 22-815209         FITTING, Tee 2   This Part is No Longer Available
10 19-815211         PLUG, Pipe - Drain 2   This Part is No Longer Available
11 32-815215         HOSE (3.50 Inches) 6

12 54-815207         CLAMP 16

13 16-821279         STUD (.375-16 x 2.187) 4
5
14 10-821107         SCREW, (.375-16 x 3.00) 8

15 10-812567         SCREW, (.375-16 x 1.625) 4

16 12-20572         WASHER, (.390 x .750 x .093) 8

17 12-37828         WASHER, (.390 x .625 x .062) 8

18 11-25269         NUT, (.375-24) 4

19 27-46820         GASKET, Exhaust Manifold To Head 2
2
20 818498A1         TAILPIPE ASSEMBLY, Exhaust 2   This Part is No Longer Available - Standard - Bravo Models
20 818499A1         TAILPIPE ASSEMBLY, Exhaust OPT   This Part is No Longer Available - 3.00 Inch - Bravo Models
20 818500A1         TAILPIPE ASSEMBLY, Exhaust OPT
6.00 Inch - Bravo Models
20 818497A1         TAILPIPE ASSEMBLY, Exhaust 2   This Part is No Longer Available - 6.00 Inch - Driveline Models
20 818495A1         TAILPIPE ASSEMBLY, Exhaust OPT   This Part is No Longer Available - Standard - Driveline Models
20 818496A1         TAILPIPE ASSEMBLY, Exhaust OPT   This Part is No Longer Available - 3.00 Inch - Driveline Models
21 27-848147         GASKET, Exhaust Elbow 2
2
22 12-49112         WASHER 8   This Part is No Longer Available
23 11-68411         NUT, (.375-16) 8
No longer made, limited availability
24 816037         PLATE, Diffuser 2

25 32-688941         HOSE, (48.00 Inches Bulk), Cut 13.00 Inches 1

26 54-815504105         CLAMP, Worm Gear 2

- 27-99386A96         GASKET SET, Engine Overhaul 1
