| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

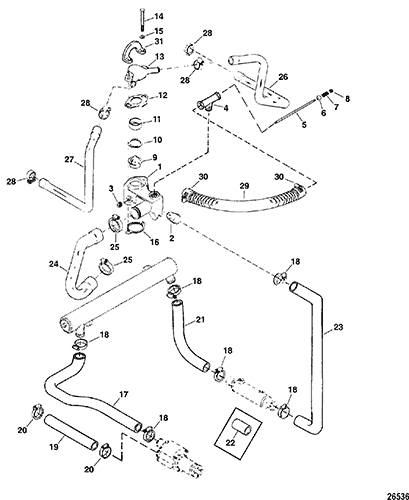

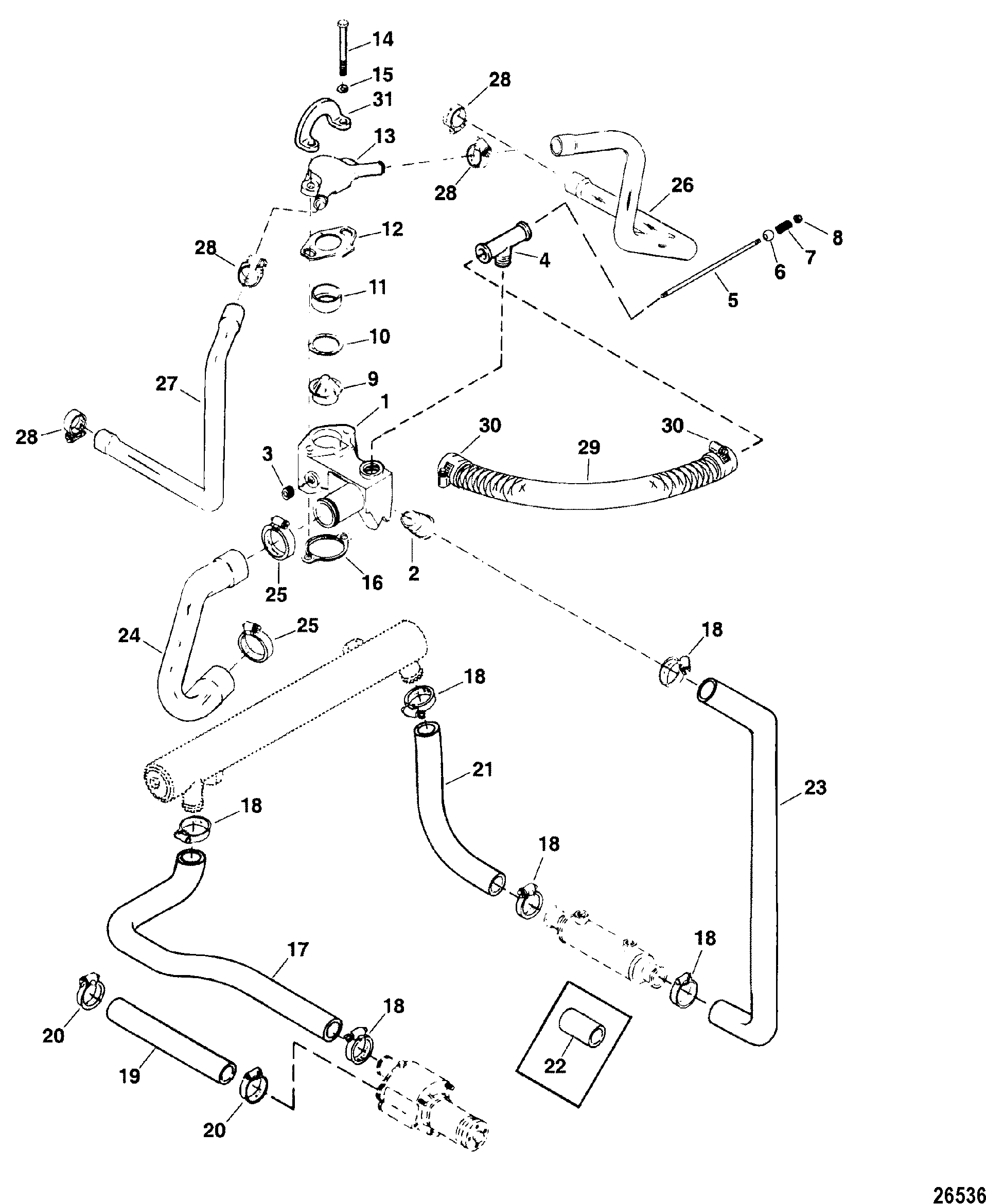

| 1 |
87290A4 |
|
|
|
|
HOUSING ASSEMBLY, Thermostat |
1 |
|
|
| 2 |
23-47511 |
|
|
|
|
SLEEVE |
1 |
|
|
| 3 |
22-32803 |
|
|
|
|
PLUG, Pipe (.375-18) Brass |
2 |
|
|
| 4 |
22-98477A2 |
|
|
|
|
VALVE ASSEMBLY |
1 |
|
|
| 5 |
10-98476 |
|
|
|
|
SCREW, (#10-32 x 6.00) |
1 |
|
|
| 6 |
30-98475 |
|
|
|
|
BALL, Nylon |
2 |
|
|
| 7 |
24-75533 |
|
|
|
|
SPRING |
2 |
|
|
| 8 |
11-826709106 |
|
|
|
|
NUT, (#10-32) |
1 |
11-29488 |
|
| 9 |
807252T1 |
|
|
|
|
THERMOSTAT, 140 Degrees |
1 |
8072521 |
|
| 10 |
27-47510 |
|
|
|
|
GASKET, Thermostat |
1 |
|
2 |
| 11 |
23-47508T |
|
|
|
|
SLEEVE, Thermostat |
1 |
23-47508 |
|
| 12 |
27-418122 |
|
|
|
|
GASKET, Thermostat Cover |
1 |
|
2 |
| 13 |
47441A1 |
|
|
|
|
COVER, Thermostat |
1 |
|
|
| 14 |
10-14164 |
|
|
|
|
SCREW, (.375-16 x 4.37) |
2 |
|
|
| 15 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
2 |
|
|
| 16 |
27-530451 |
|
|
|
|
GASKET, Thermostat Housing |
1 |
|
2 |
| 17 |
32-816197 |
|
|
|
|
HOSE, Molded - Sea Pump To Oil Cooler |
1 |
|
|
| 18 |
54-180766 |
|
|
|
|
CLAMP, Worm Gear |
8 |
|
|
| 19 |
32-1743565 |
|
|
|
|
HOSE, (38.00 Inches Bulk), Cut As Required - Sea Pump To Drive Unit |
1 |
|
Bravo Models |
| 19 |
32-13556A1 |
|
|
|
|
HOSE KIT, (10.00 Feet), Cut As Required - Sea Pump To Drive Unit |
1 |
|
Driveline Models |
| 20 |
54-180766 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
Driveline Models |
| 21 |
32-848956 |
|
|
|
|
HOSE, Molded, Oil Cooler To Oil Cooler |
1 |
|
|
| 22 |
22-13177 |
|
|
|
|
TUBE, Water Hose |
1 |
|
Non Power Steering Models |
| 23 |
32-896998 |
|
|
|
|
HOSE, Molded, Oil Cooler To Thermostat Housing |
1 |
32-64346 |
|
| 24 |
847677A01 |
|
|
|
|
HOSE, Molded - Thermostat Housing To Water Pump |
1 |
32-847677 |
|
| 25 |
54-180768 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 26 |
32-848955 |
|
|
|
|
HOSE, Molded - Port - Thermostat Cover |
1 |
|
|
| 27 |
32-848954 |
|
|
|
|
HOSE, Molded - Starboard - Thermostat Cover |
1 |
|
|
| 28 |
54-180764 |
|
|
|
|
CLAMP, Worm Gear |
4 |
|
|
| 29 |
32-847764A1 |
|
|
|
|
HOSE ASSEMBLY, (22.00 Inches) Stainless Steel Braided |
1 |
|
|
| 29 |
32-847764A2 |
|
|
|
|
HOSE ASSEMBLY, (17.00 Inches) Stainless Steel Braided |
1 |
|
This Part is No Longer Available |
| 30 |
54-84775218 |
|
|
|
|
CLAMP/HOSE COVER, Red |
4 |
|
|
| 31 |
12552 |
|
|
|
|
LIFTING EYE |
1 |
|
|
| - |
27-99386A96 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
