| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

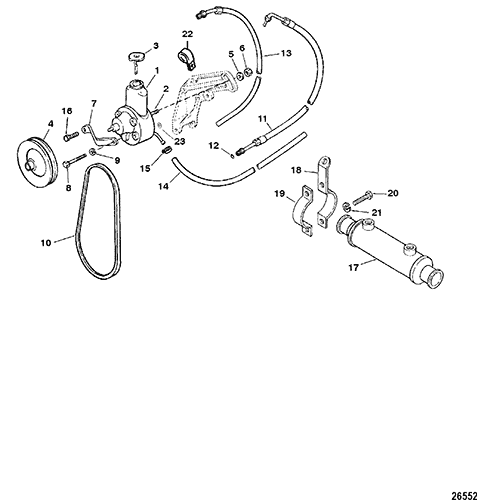

| 1 |
16792A25 |
|
|
|
|
PUMP ASSEMBLY, Blue - Power Steering |
1 |
|
|
| 2 |
16-41877 |
|
|
|
|
STUD, (M10) |
1 |
|
|
| 3 |
36-95805 |
|
|
|
|
CAP |
1 |
|
|
| 4 |
738733 |
|
|
|
|
PULLEY, Blue |
1 |
|
This Part is No Longer Available |
| 5 |
12-34567 |
|
|
|
|
WASHER, For Brace Slot |
3 |
|
|
| 6 |
11-90517 |
|
|
|
|
NUT, (M10) |
2 |
|
|
| 7 |
98813F1 |
|
|
|
|
BRACE |
1 |
98813A1 |
|
| 8 |
10-40001188 |
|
|
|
|
SCREW, (M10 x 20) |
1 |
|
|
| 9 |
13-400248 |
|
|
|
|
LOCKWASHER, (M10) |
1 |
|
|
| 10 |
57-821023Q |
|
|
|
|
V BELT |
1 |
57-821023 |
|
| 11 |
32-98494 |
|
|
|
|
HOSE ASSEMBLY, Fittings On Both Ends |
1 |
|
|
| 12 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
1 |
|
|
| 13 |
32-9884339 |
|
|
|
|
HOSE ASSEMBLY, (72.00 Inches Bulk), Cut 48.00 Inches |
1 |
|
|
| 14 |
32-8M0062341 |
|
|
|
|
HOSE, (53.00 Inches Bulk), Cut 19.50 Inches - Pump To Oil Cooler |
1 |
32-5251914 |
|
| 15 |
54-180761 |
|
|
|
|
CLAMP, Worm Gear |
3 |
|
|
| 16 |
10-35047 |
|
|
|
|
SCREW, (.375-16 x 1.250) Stainless Steel |
1 |
|
|
| 16 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
1 |
|
|
| 17 |
99356A2 |
|
|
|
|
COOLER, Oil |
1 |
|
|
| 18 |
63820F3 |
|
|
|
|
BRACKET, Long |
1 |
638203 |
|
| 19 |
563281 |
|
|
|
|
BRACKET, Short |
1 |
|
|
| 20 |
10-49668 |
|
|
|
|
SCREW, (.250-20 x .750) |
2 |
|
|
| 21 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
2 |
|
|
| 22 |
54-848183 |
|
|
|
|
J CLIP, Power Steering Hose |
1 |
|
|
| 22 |
54-42553 |
|
|
|
|
J CLIP, Power Steering Hose To Valve Cover |
2 |
|
|
| 23 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063), Lower Pivot Stud - Pump To Bracket |
1 |
|
|
