| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

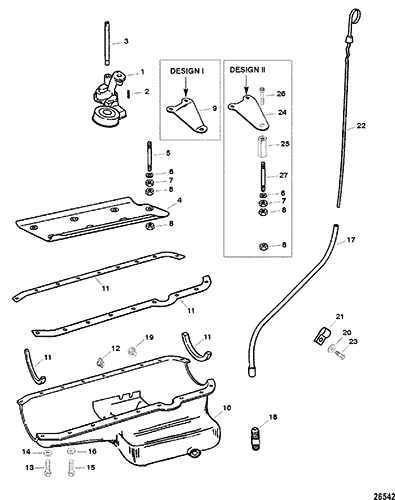

| 1 |
98337T6 |
|
|
|
|
PUMP ASSEMBLY, Oil |
1 |
98337A6 |
5 |
| 2 |
16-845599 |
|
|
|
|
STUD |
1 |
16-49108 |
5 |
| 3 |
848511 |
|
|
|
|
SHAFT |
1 |
|
5 |
| 4 |
8485431 |
|
|
|
|
WINDAGE TRAY |
1 |
|
5 |
| 5 |
16-816254 |
|
|
|
|
STUD, Special |
6/7 |
|
NOTE: Reference Design I or Design II 5 |
| 6 |
12-816258 |
|
|
|
|
WASHER, (.500 x .875 x .120) |
7 |
|
5 |
| 7 |
11-816255 |
|
|
|
|
NUT, (.500-20) |
7 |
|
5 |
| 8 |
11-816257 |
|
|
|
|
NUT, Special |
14 |
|
5 |
| 9 |
849529A1 |
|
|
|
|
SUPPORT, Oil Pump |
1 |
8143941 |
Design I 5 |
| 10 |
817025T1 |
|
|
|
|
PAN, Oil |
1 |
8170251 |
5 |
| 11 |
27-848305 |
|
|
|
|
GASKET SET, Oil Pan |
1 |
|
2,5 |
| 12 |
22-36373 |
|
|
|
|
PLUG, Hex Steel (.375-18) |
2 |
|
5 |
| 13 |
10-55714 |
|
|
|
|
SCREW (.312-18 x .875) |
12 |
|
5 |
| 13 |
10-54523 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
2 |
|
5 |
| 14 |
12-20546 |
|
|
|
|
WASHER, (.330 x .500 x .060) |
14 |
|
5 |
| 15 |
10-55715 |
|
|
|
|
SCREW, (.250-20 x .880) |
2 |
|
5 |
| 16 |
12-20028 |
|
|
|
|
WASHER, (.265 x .437 x .060) |
2 |
|
5 |
| 17 |
847599 |
|
|
|
|
TUBE, Oil Dipstick |
1 |
|
5 |
| 18 |
22-42277 |
|
|
|
|
FITTING |
1 |
|
This Part is No Longer Available 5 |
| 19 |
19-8154731 |
|
|
|
|
PLUG, Drain (.875-14) |
1 |
|
5 |
| 20 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
1 |
|
5 |
| 21 |
54-822279 |
|
|
|
|
CLIP, Oil Tube Support |
1 |
|
5 |
| 22 |
94010 |
|
|
|
|
DIPSTICK |
1 |
|
This Part is No Longer Available 5 |
| 23 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) |
1 |
|
5 |
| 24 |
849529A1 |
|
|
|
|
BRACE KIT, Oil Pump |
1 |
|
Design II 5 |
| 25 |
11-849530 |
|
|
|
|
NUT, Special |
1 |
|
|
| 26 |
10-849660 |
|
|
|
|
SCREW, (.375-24 x 1.00) |
1 |
|
|
| 27 |
16-816254 |
|
|
|
|
STUD, Special |
1 |
|
|
| - |
27-99386A96 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
