6.2L MPI MIE EC - Serial 1A092169 and Up - Closed Cooling System, Heat Exchanger

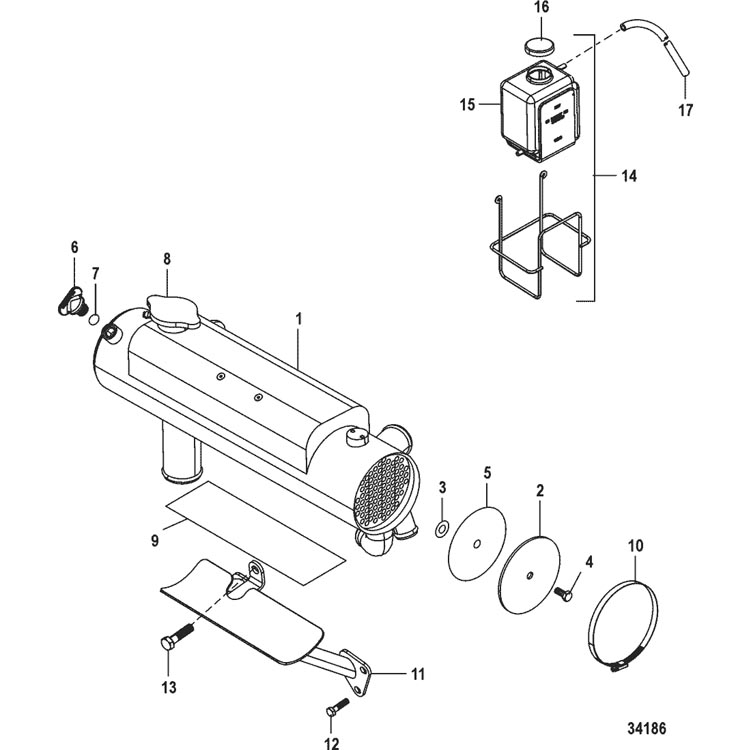

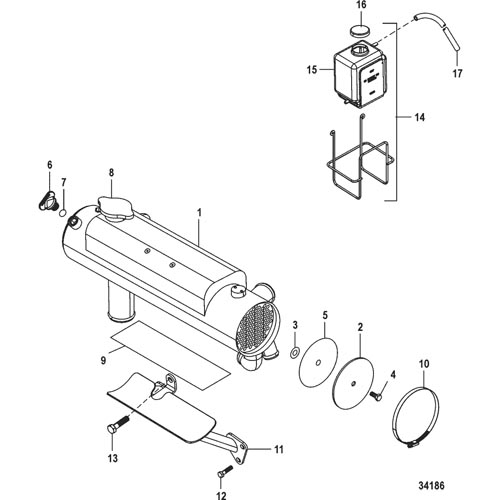

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Closed Cooling System, Sea Water Pump Hoses
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-8M0054058 | HEAT EXCHANGER Closed Cooling | 1 | ||
| 2 | 0000 | OEM: 525-864708 | COVER End, Heat Exchanger | 2 | ||
| 3 | 0025 | OEM: 525-25-818679 | O-RING | 4 | ||
| 4 | 0010 | OEM: 525-10-94247 | SCREW (.375-16 x .750) Stainless Steel | 2 | ||
| 5 | 0027 | OEM: 525-27-866152 | SEAL | 1 | ||
| 6 | 0022 | OEM: 525-22-806608A02, Sierra: 676-18-4226 | PLUG ASSEMBLY (.500-13) Blue | 1 | [1] | |
| 7 | 0025 | OEM: 525-25-26802, Sierra: 676-18-7180, GLM: 700-81110 | O-RING (.424 x .103) | 1 | ||
| 8 | 0036 | OEM: 525-36-8148791 | CAP Pressure | 1 | ||
| 9 | 0000 | OEM: 525-18431 | PAD Heat Exchanger | 1 | ||
| 10 | 0054 | OEM: 525-54-815504396 | CLAMP Worm Gear Heat Exchanger | 1 | ||
| 11 | 0000 | OEM: 525-864494T | BRACKET Cooler | 1 | ||
| 12 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 3 | ||
| 13 | 0010 | OEM: 525-10-805559 | SCREW (.375-16 x .875) Stainless Steel | 1 | ||
| 14 | 0000 | OEM: 525-71587A10 | RECOVERY KIT Coolant | 1 | ||
| 15 | 0000 | OEM: 525-71587A11 | BOTTLE Plastic Coolant Recovery Kit | 1 | ||
| 16 | 0000 | OEM: 525-72058 | CAP Coolant Recovery Bottle | 1 | ||
| 17 | 0032 | OEM: 525-32-1983389 | HOSE (Included with Coolant Recovery Kit) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A02Service Part
806608Q01QS
