6.2L MPI MIE EC - Serial 1A092169 and Up - Closed Cooling System, Poppet Valve

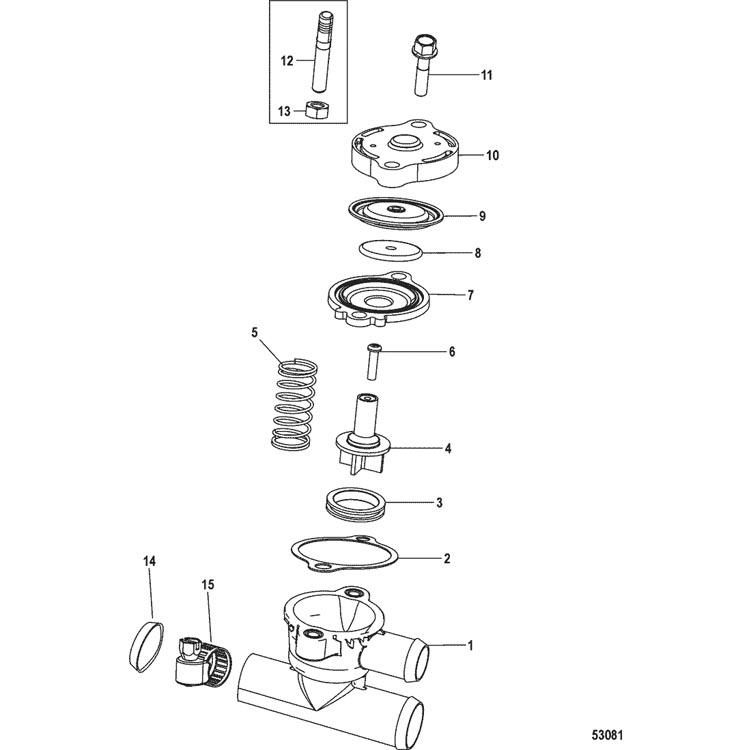

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Closed Cooling System, Sea Water Pump Hoses
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879194T67 | VALVE ASSEMBLY, Poppet | 1 | ||||||
| 2 | 27-88907003 | GASKET | 1 | ||||||
| 3 | 25-814191 | GROMMET | 1 | ||||||
| 4 | 814189 | POPPET | 1 | ||||||
| 5 | 24-42996 | SPRING, (Stainless Steel) | 1 | ||||||
| 6 | 10-69570 | SCREW, (#10-16 x .750) | 1 | ||||||
| 7 | 65664A1 | PLATE ASSEMBLY | 1 | ||||||
| 8 | 12-76451 | WASHER | 1 | ||||||
| 9 | 648771 | DIAPHRAGM | 1 | ||||||
| 10 | 65663A2 | COVER ASSEMBLY | 1 | ||||||
| 11 | 10-81893435 | SCREW, (M8 x 35) | 2 | ||||||
| 12 | 16-866609 | STUD, (M8 x 48 mm) | 2 | ||||||
| 13 | 11-400213 | NUT, (M8) Stainless Steel | 2 | ||||||
| 14 | 8M2012187 | CAP, Poppet | 1 | ||||||
| 15 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 1 |
