6.2L MPI MIE EC - Serial 1A092169 and Up - Exhaust Manifold and Elbow

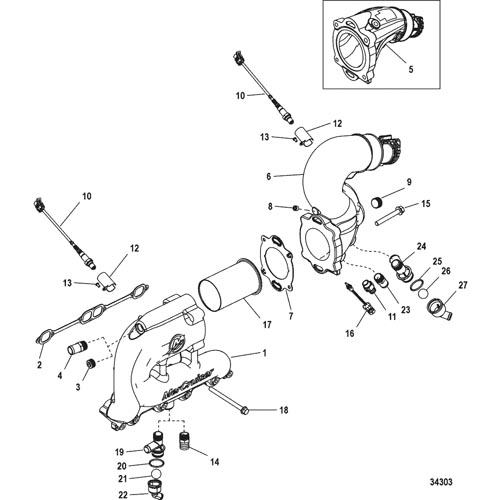

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 879288A01         MANIFOLD ASSEMBLY, Exhaust, Starboard 1
1 8M0103774         MANIFOLD ASSEMBLY, Exhaust, Port 1 879288A04
2 27-8M2000819         GASKET, Head to Manifold 1
3 22-428611         FITTING, Pipe - Brass (.750-14) 1
4 22-866725         FITTING, Straight (.750-14) 2
5 8M0095694         ELBOW ASSEMBLY 1 879288A19
5 8M0095693         ELBOW ASSEMBLY 1 879288A21
6 8M0094680         ELBOW ASSEMBLY, 2 Inch Riser 1 879288A25
6 879288A28         ELBOW ASSEMBLY, 4 Inch Riser 1
6 8M0094682         ELBOW ASSEMBLY, 6 Inch Riser 1 879288A30
6 879288A32         ELBOW ASSEMBLY, 8 Inch Riser 1
7 27-8M2004606         GASKET, Elbow to Manifold 2
7 27-8M2004414         GASKET, Elbow to Manifold 2
8 22-73379         PLUG, (.250-18) 2
9 22-428611         FITTING, Pipe - Brass (.750-14) 2
10 8M2003959         SENSOR, Oxygen 4
11 22-864623A1         FITTING ASSEMBLY, Standard Cooling, Port Elbow 1
12 8M2004597         BRACKET, Cover 4
13 10-8M2007128         SCREW, (1/4-20) Hex Flange 4
14 22-866725         FITTING, Straight (.750-14) 2
15 10-668631         SCREW, (.375-16 x 2.500) 8
16 885342002         SENSOR ASSEMBLY 2
17 879288T25         CATALYST 2
18 8M2000229         SCREW, (.375-16 x 4.75) 12
19 22-863786A1         FITTING ASSEMBLY 2
20 25-864701         O-RING, (1.112 x .103) 1
21 30-863129         BALL, Check 1
22 862994T         FITTING 1
23 22-866725         FITTING, Straight (.750-14), Standard Cooling, Starboard Elbow 1
23 22-866725         FITTING, Straight (.750-14), Closed Cooling Elbows 2
24 22-863786A1         FITTING ASSEMBLY, 0,2,4 Inch Risers 1
24 22-8M2012292         FITTING ASSEMBLY, 6,8 Inch Risers 1
25 25-864701         O-RING, (1.112 x .103) 1
26 30-863129         BALL, Check 1
27 862994T         FITTING 1
