6.2L MPI MIE EC - Serial 1A092169 and Up - Standard Cooling System, V-DRIVE

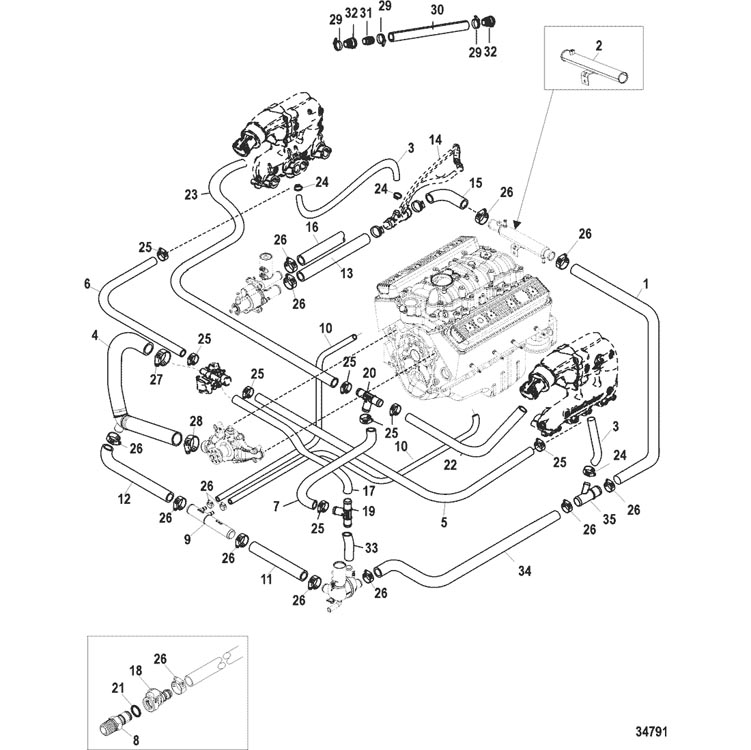

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Closed Cooling System, Sea Water Pump Hoses
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865255 | HOSE, Cooler to Drain Fitting | 1 | ||||||
| 2 | 863841T | TUBE, Water | 1 | ||||||
| 3 | 32-8M0062634 | HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting | 1 | 4285069 | |||||
| 4 | 32-863456A1 | HOSE ASSEMBLY, Thermostat Housing to Circulating Pump | 1 | ||||||
| 5 | 32-864393 | HOSE, Thermostat Housing to Port Manifold | 1 | ||||||
| 6 | 32-863459 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 7 | 32-8M2013567 | HOSE, Fitting to Fitting | 1 | ||||||
| 8 | 22-862603 | FITTING, Male Quick Connector, Threaded - Engine Block | 2 | ||||||
| 9 | 22-864989A01 | FITTING ASSEMBLY, Lower Distribution | 1 | ||||||
| 10 | 32-8M0062590 | HOSE, Cylinder Block Drain to Distribution Fitting | 2 | 8623175 | |||||
| 11 | 32-863490 | HOSE, Water Drain Accumulator to Distribution Fitting | 1 | ||||||
| 12 | 32-865394 | HOSE | 1 | ||||||
| 13 | 32-8M2021656 | HOSE, Sea Pump to Water Orifice | 1 | 865337 | |||||
| 13 | 32-865234 | HOSE, Sea Pump to Water Orifice | 1 | ||||||
| 15 | 32-8M2021655 | HOSE, Water Orifice to Power Steering Cooler | 1 | 865235 | |||||
| 16 | 32-8M0062666 | HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump | 1 | 865672079 | |||||
| 17 | 32-8M2013565 | HOSE, Tee Fitting to Thermostat Housing | 1 | ||||||
| 18 | 22-862225 | FITTING, Pushlock - Block Drian Hose | 4 | ||||||
| 19 | 22-863478 | FITTING, Tee | 1 | ||||||
| 20 | 22-8M2014000 | FITTING, Tee, Blue | 1 | ||||||
| 21 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 22 | 32-8M2007295 | HOSE, Fitting to Starboard Elbow | 1 | ||||||
| 23 | 32-8M2007296 | HOSE, Fitting to Port Elbow | 1 | ||||||
| 24 | 54-815504212 | CLAMP, Worm Gear | 2 | ||||||
| 25 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | AR | ||||||
| 26 | 54-815504228 | CLAMP, Worm Gear | AR | 54-32781 54-853232 54-853432 |
|||||
| 27 | 54-815504232 | CLAMP, Worm Gear | 1 | 8M2001490 | |||||
| 28 | 54-815504232 | CLAMP, Worm Gear | AR | 8M2001490 | |||||
| 29 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 3 | ||||||
| 30 | 32-865672013 | HOSE, (4.00 Inches) | 1 | ||||||
| 31 | 22-865362 | QUICK CONNECT, Transom Hose | 1 | ||||||
| 32 | 22-865324 | QUICK CONNECT, Transom Hose | 2 | ||||||
| 33 | 32-8M0062614 | HOSE, (48.00 Inches Bulk), Distribution Housing to Fitting | 1 | 3322070 | |||||
| 34 | 32-866331 | HOSE, Distribution Housing to Drain Fitting | 1 | ||||||
| 35 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 |
