7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Audio Warning System

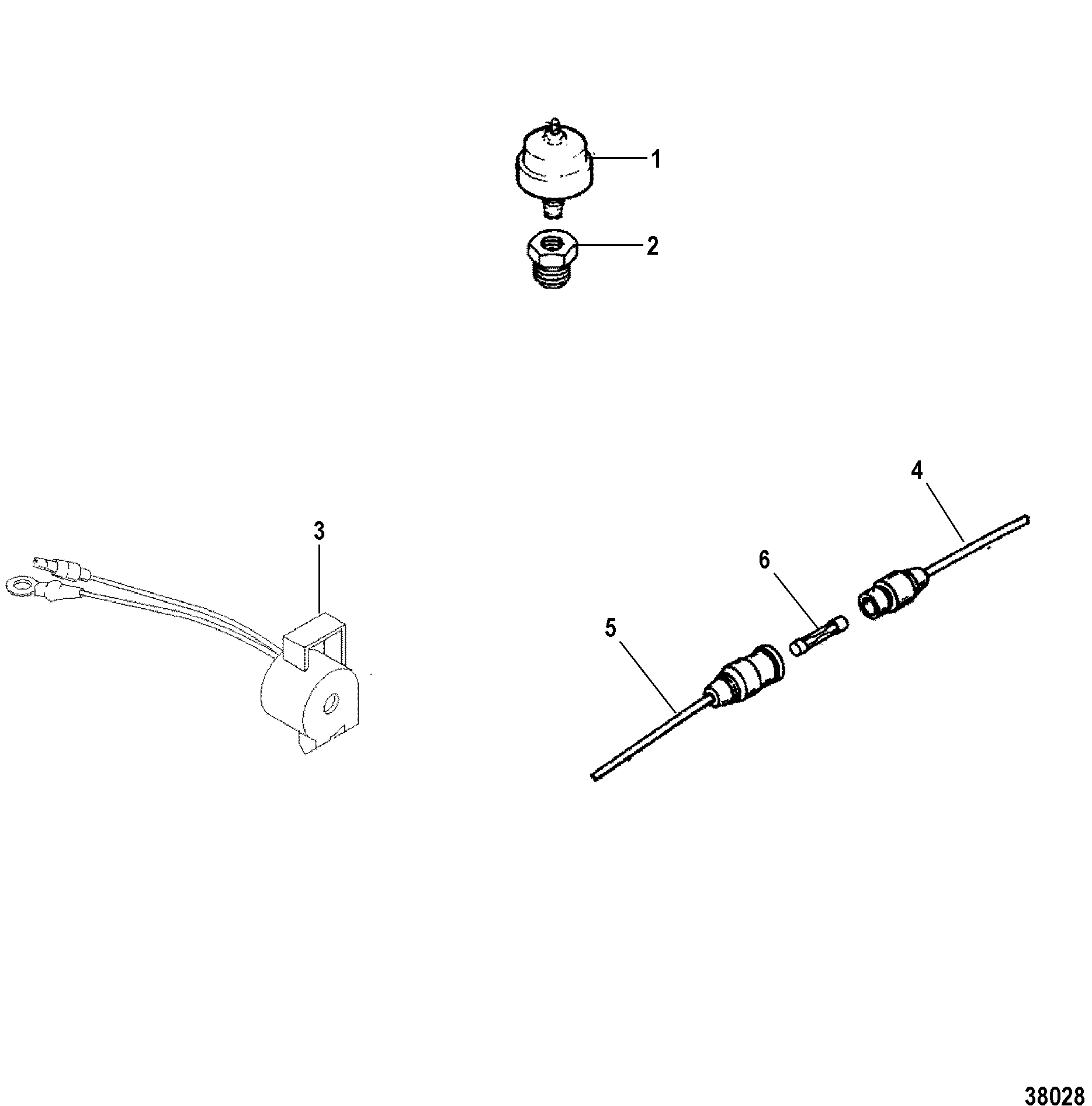

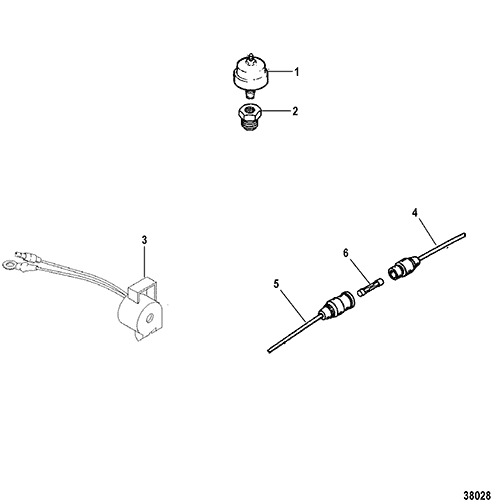

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 87-805605A1 | SWITCH ASSEMBLY | 1 | ||||||
| 2 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | ||||||
| 3 | 816492A6 | ALARM KIT | 1 | ||||||
| 4 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (MALE) | 1 | ||||||
| 5 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red (FEMALE) | 1 | ||||||
| 6 | 88-79091 | FUSE, 20 Ampere | 1 |
