7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Intake Manifold And Front Cover

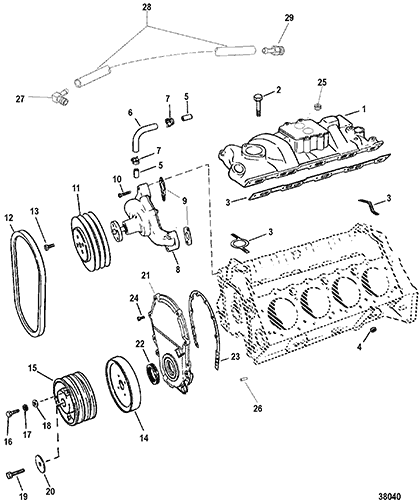

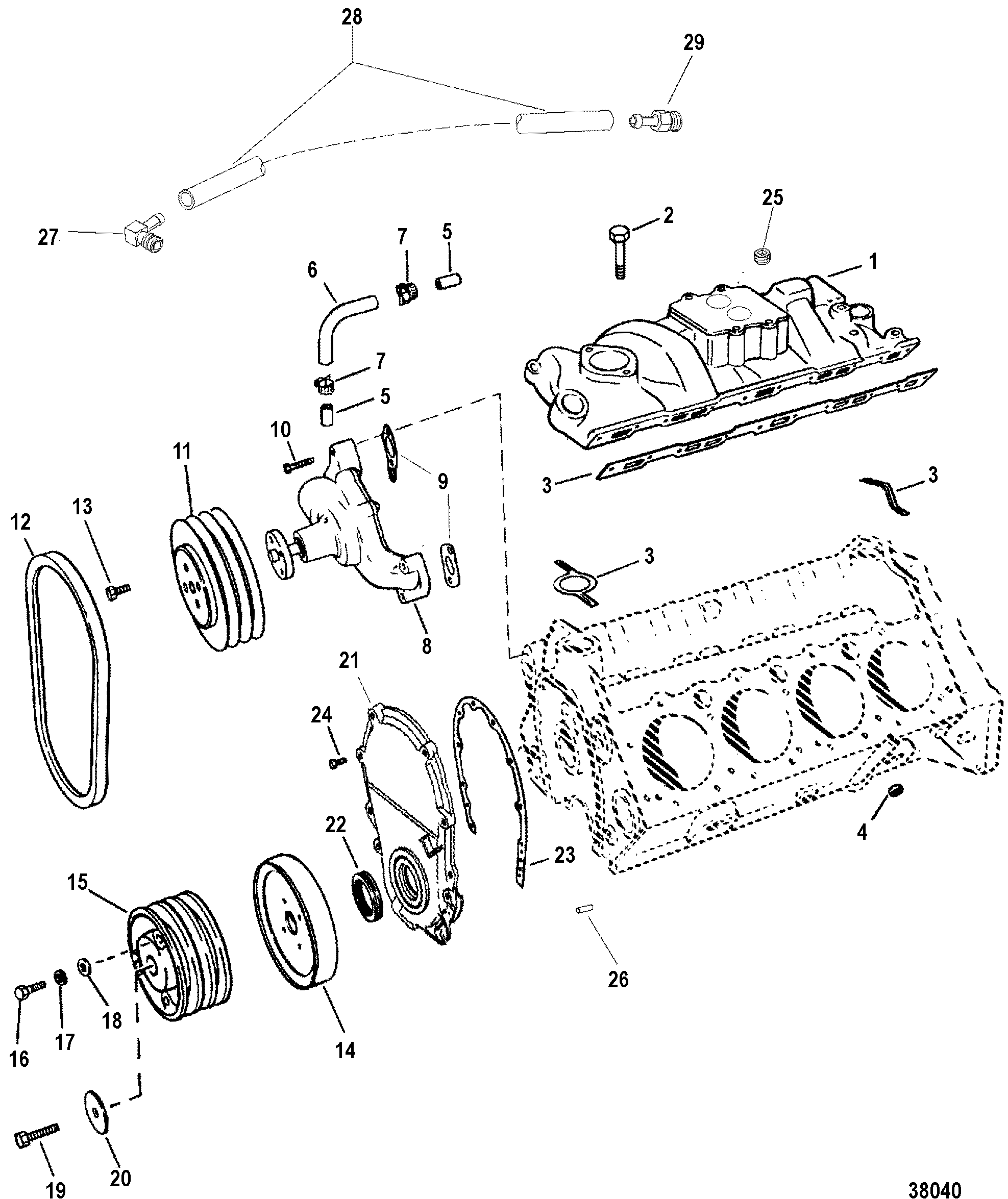

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850473T



MANIFOLD, Intake 1 850473 This Part is No Longer Available
2 10-802655



BOLT, (3/8-16 x 1.25) (3/8-16 X 1-1/4 IN.) 14 10-11975
2 10-811577



BOLT (3/8-16 X 1-3/8 IN.) 2

3 27-850475



GASKET SET 1
3
4



VALVE, Relief 1
(30 PSI)
5 22-806242



CONNECTOR 2

6 32-805987



HOSE 1

7 54-815504412



CLAMP, Worm Gear 2

8 8504541



PUMP ASSEMBLY, Water 1 850454
9 27-49110



GASKET, Circulating Water Pump Mount 2
3
10 10-805611



SCREW, (.375-16 x 1.750) 4 10-811574
11 19692T01



PULLEY, (7 In. Diameter) 1 19692T
12 57-48122Q



BELT, (48 Inches) 1 57-48122
13 10-47277



SCREW, (.312-24 x .750) 4

14 850461001



BALANCER 1 850461
15 90081T



PULLEY 1

16 10-75334



SCREW, (.375-24 x 3.00) 3
This Part is No Longer Available
17 13-35048



LOCKWASHER, (.375) 3

18



WASHER 3

19



SCREW, (.500-20 x 2.500) 1 10-811559
20 12-49103



WASHER 1

21 845610T



COVER ASSEMBLY 1 850459
22 26-8219471



SEAL 1
3
23 27-850456



GASKET, Front Cover Mount 1
3
24 10-850455



SCREW, (1/4-20 x 0.5) (1/4-20 X 1/2 IN.) 6

25 22-48358T



PLUG, (.375) 2 22-48358
26 17-843378



PIN, Dowel (1/4 In. Diameter) 1 17-35312
27 22-808042



FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars) 1

28 32-807897



HOSE 1
This Part is No Longer Available
29 22-806242



CONNECTOR 1

- 27-806640A96



GASKET SET 1
This Part is No Longer Available
