7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Exhaust Manifold And Exhaust Elbow

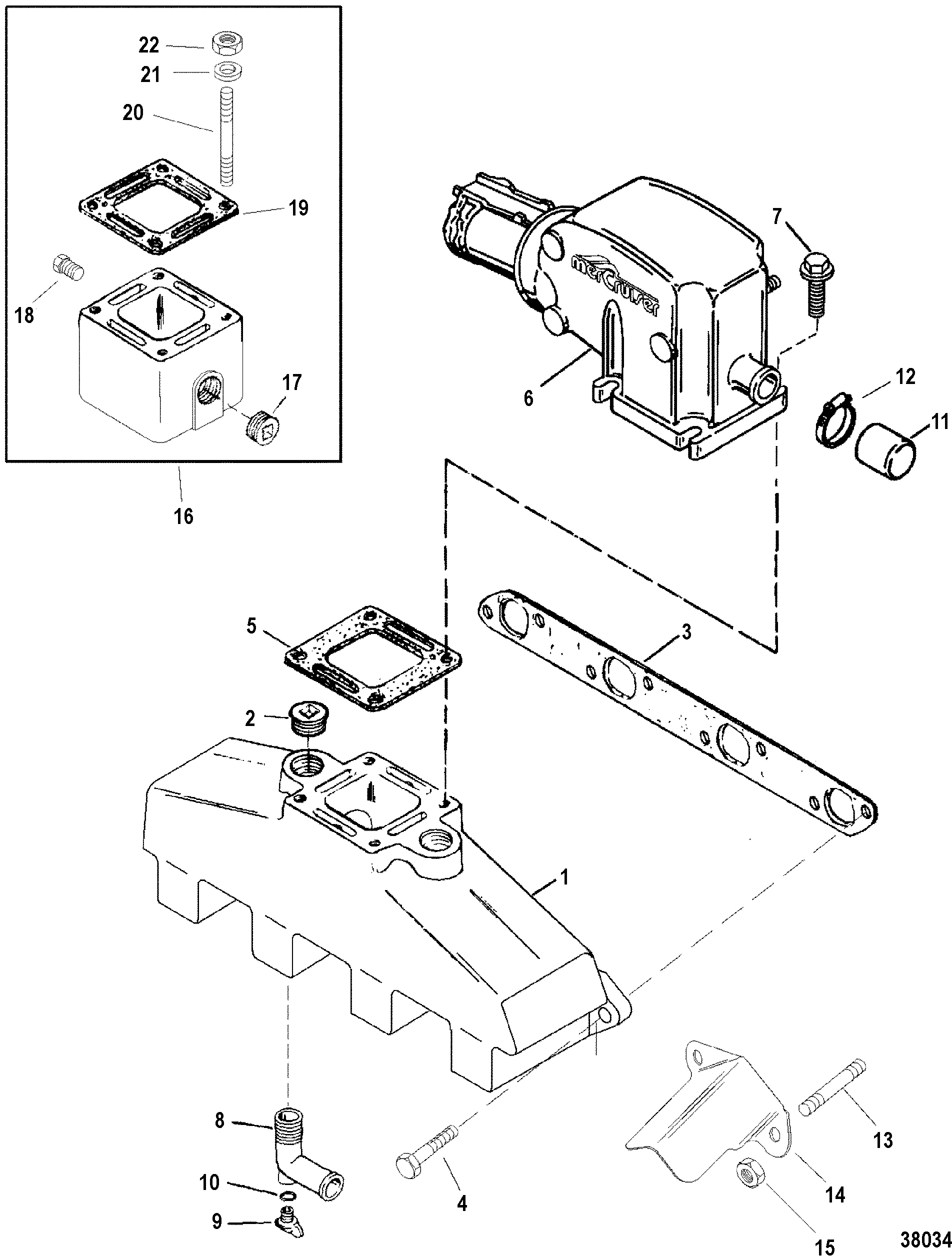

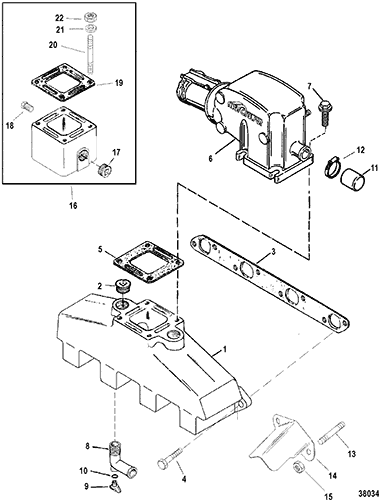

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807078T10


654-9011A MANIFOLD ASSEMBLY 2 89011A8
2 22-41622
676-9-41205 700-21892
PLUG, (3/4-14) AR 22-33198A1 2
3 27-46820
676-9-61400 700-33760
GASKET 2
3
4 10-37612



SCREW, (.375-16 x 1.250) 14

5 27-863724
676-9-61413

GASKET 2 27-860233 3
6 816900A5



ELBOW ASSEMBLY, Exhaust 1
This Part is No Longer Available
6 816900A9



ELBOW ASSEMBLY 1
This Part is No Longer Available
7 10-865982005



SCREW, (.375-16 x 1.00) 6 10-12244
7 10-98534



SCREW, (.375-16 x 2.30) 2

8 22-862210A01
676-9-41206 700-13991
ELBOW KIT, Drain 2 22-806926A1
9 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
10 25-32509



QUAD RING 2 25-806609 3
11 19-805727001



CAP, Rubber 2 19-805727
12 54-815504220



CLAMP, Worm Gear 2

13 16-860165



STUD 2

14 860203T



SHIELD, Heat 1

15 11-28770



NUT, (.312-24) Stainless Steel 2

16 807476A7



RISER KIT, Exhaust (3.00 Inch) 1 93320A7
16 807477A5

700-50600
RISER KIT, Exhaust (6.00 Inch) 1 93322A5
17 22-41622
676-9-41205 700-21892
PLUG, (3/4-14) 2/4 22-33198A1
18 22-328022



PLUG, Pipe (.125-27) 2/4 22-328021
19 27-863726
676-9-61414

GASKET 2 27-818832
20 16-97520

700-22481
STUD, (.375 x 5.0) 6
USE WITH 3 IN. RISER
20 16-34713



STUD, (.375 x 6.5) 2
USE WITH 3 IN. RISER
20 16-821738



STUD, (3/8 x 8 In.) (3/8 X 8 IN.) 6
This Part is No Longer Available USE WITH 6 IN. RISER
20 8M0022137

700-22474
STUD, (.375 x 9.56) 2 16-11375 USE WITH 6 IN. RISER
21 12-46132



WASHER 10

22 11-46335



NUT, (.375-24) 8

- 27-806640A96



GASKET SET 1
This Part is No Longer Available
