7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Starter And Alternator

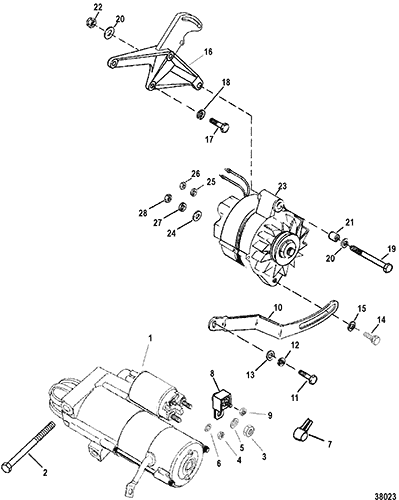

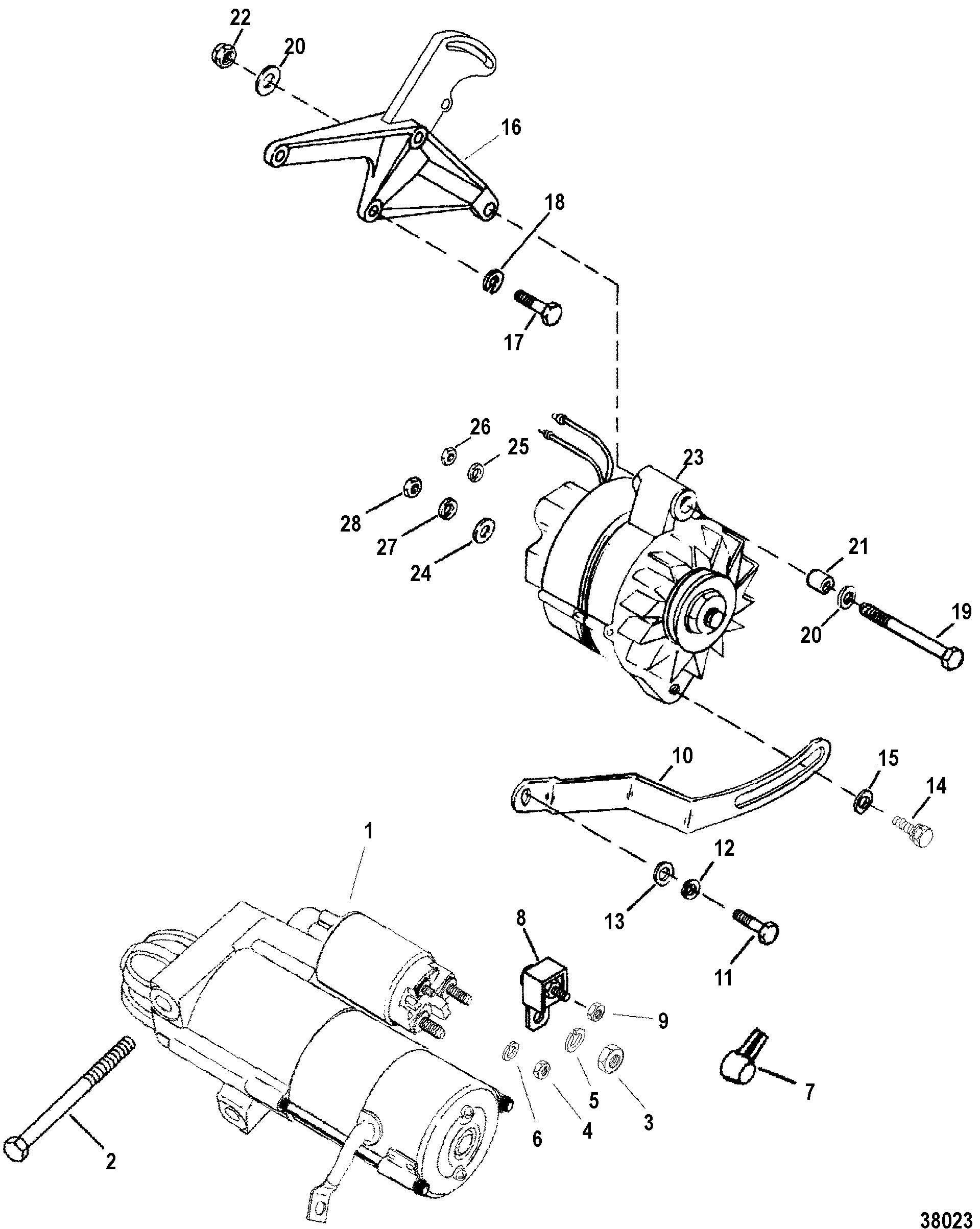

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1



STARTER MOTOR ASSEMBLY 1 50-806964A3 (SEE "STARTER MOTOR" FOR BREAKDOWN)
2 10-8053432



SCREW, (.375-16 x 4.33) 2

3 11-806949



NUT, (M8-1.5) 1

4 v



NUT, (M5) Stainless Steel 1

5 13-39107

700-21496
LOCKWASHER, (.312-24) 1

6 13-26996



LOCKWASHER, (#10) Stainless Steel 1

7 85-79695T



BOOT, Insulator - Black 1 85-79695
8 88-79023A91



FUSE ASSEMBLY, 90 Ampere 1

9 11-21825



NUT, (.250-28) 1

10 85013T



BRACE 1

11 10-47462



SCREW, (.437-14 x 1.250) 1

12 13-32993



LOCKWASHER, (.437) 1

13 12-31263



WASHER 1

14 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 1

15 12-26168



WASHER 1

16 806394A1



BRACKET 1   This Part is No Longer Available
17 10-47462



SCREW, (.437-14 x 1.250) 1
17 10-91903



SCREW, (.437-14 x 1.750) 2
18 12-22248



WASHER, (.453 x .875 x .060) 3
19 10-48308



SCREW, (.375-24 x 3.750) 1
20 12-20553



WASHER, (.406 x .734 x .063) 2
21 23-33186



BUSHING 1
22 11-23161



NUT, (.375-24) 1
23 805884T



ALTERNATOR 1   (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
24 12-96457



WASHER, Phenolic (.27 x .81 x .062) 1
25 13-26996



LOCKWASHER, (#10) Stainless Steel 1
26 11-79989



NUT, (#10-24) Stainless Steel 1
27 13-26992



LOCKWASHER, (.250) Stainless Steel 1
28 11-94330



NUT, (.250-20) Brass 1
