200XS DFI 2.5L ROS - Serial 1E050852 and Up - Driveshaft Housing

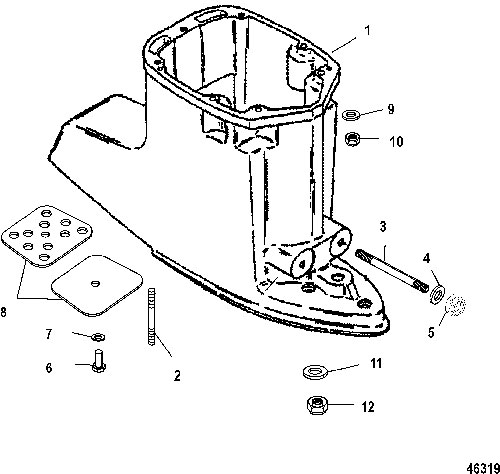

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1581-818900T24 | HOUSING, Driveshaft (Short) | 1 | ||||||
| 2 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) (Short) | 2 | ||||||
| 3 | 16-818908 | STUD, (.500-13/.500-20 x 4.120) (Short) | 2 | ||||||
| 4 | 12-816056 | WASHER (Short) | 2 | ||||||
| 5 | 11-898832 | NUT, (.500-20) (Short) | 2 | ||||||
| 6 | 10-39349 | SCREW, (.312-18 x .750) Stainless Steel (Short) | 1 | ||||||
| 7 | 12-847539 | WASHER (Short) | 1 | ||||||
| 8 | 818909 | PLATE, Exhaust Blockoff | 1 | ||||||
| 9 | 12-822838 | WASHER, (.401 x .745 x .097) (Short) | 10 | ||||||
| 10 | 11-826709113 | NUT, (.375-24) Stainless Steel (Short) | 2 | ||||||
| 10 | 11-82671013 | NUT, (.375-24) Stainless Steel (Short) | 8 | ||||||
| 11 | 12-822836 | WASHER, (.445 x .805 x .108) | 3 | ||||||
| 12 | 11-859116 | NUT, (.437-20) | 3 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 |
