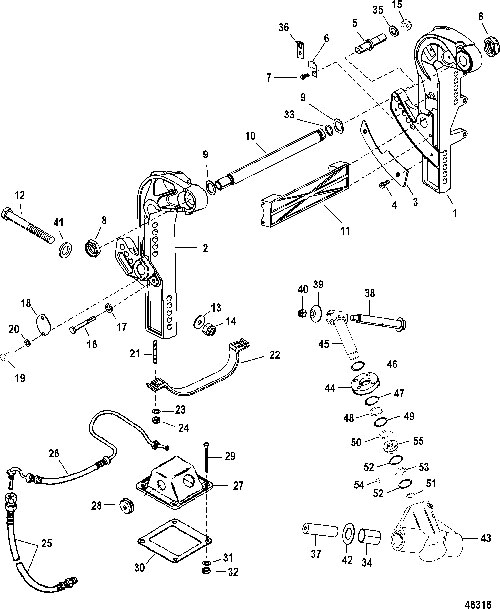

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
1494-847800A03 |
|
|
|
|
BRACKET ASSEMBLY, Transom - Port |
1 |
|
|
| 2 |
1495-847801A03 |
|
|
|
|
BRACKET ASSEMBLY, Transom - Starboard |
1 |
|
|
| 3 |
847798A02 |
|
|
|
|
WEAR PAD KIT |
1 |
|
|
| 4 |
10-86843 |
|
|
|
|
SCREW, (#10-24 x .500) |
4 |
|
|
| 5 |
16-8M0034469 |
|
|
|
|
STUD |
2 |
|
|
| 6 |
54-88512 |
|
|
|
|
CLAMP |
4 |
|
|
| 7 |
10-88829 |
|
|
|
|
SCREW, (#10-24 x .500) |
6 |
|
|
| 8 |
11-858869 |
|
|
|
|
NUT, (.875-14) |
1 |
|
|
| 9 |
13-88750 |
|
|
|
|
WASHER |
2 |
|
|
| 10 |
826125A1 |
|
|
|
|
TILT TUBE |
1 |
|
|
| 11 |
85035T |
|
|
|
|
SPACER |
1 |
|
|
| 12 |
10-677551 |
|
|
|
|
SCREW, (.500-20 x 4.500) |
2/4 |
|
|
| 12 |
10-677552 |
|
|
|
|
SCREW, (.500-20 x 6.500) |
2 |
|
|
| 13 |
12-28421 |
|
|
|
|
WASHER, (1.5 x 3.05 x 0.13) Stainless Steel |
4 |
|
|
| 14 |
11-82671117 |
|
|
|
|
NUT, (.500-20) |
4 |
|
|
| 15 |
11-826709117 |
|
|
|
|
NUT, (.500-20) Stainless Steel |
2 |
|
|
| 16 |
10-70732 |
|
|
|
|
SCREW, (.250-20 x 2.00) |
4 |
|
|
| 17 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
4 |
|
|
| 18 |
85026T |
|
|
|
|
PLATE |
2 |
|
|
| 19 |
10-28636 |
|
|
|
|
SCREW, (.250-20 x .750) |
4 |
|
|
| 20 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
4 |
|
|
| 21 |
16-8M0034451 |
|
|
|
|
STUD, (.312-24 x 1.380) |
4 |
54343 |
|
| 22 |
89949A1 |
|
|
|
|
PLATE ASSEMBLY |
1 |
|
|
| 23 |
12-843108 |
|
|
|
|
WASHER, (.330 x .560 x .060) Stainless Steel |
4 |
|
|
| 24 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
4 |
|
|
| 25 |
32-89024 |
|
|
|
|
HOSE, Hydraulic, 6 Feet-Pump-Up/Port at Transom |
1 |
|
|
| 25 |
32-89023 |
|
|
|
|
HOSE, Hydaulic, 6 Feet-Pump-Down/Starboard at Transom |
1 |
|
|
| 26 |
32-96993 |
|
|
|
|
HOSE, Hydraulic, Cylinder-Up/Port at Transom |
1 |
|
|
| 26 |
32-96994 |
|
|
|
|
HOSE, Hydraulic, Cylinder-Down/Starboard at Transom |
1 |
|
|
| 27 |
87871T |
|
|
|
|
COVER |
1 |
|
|
| 28 |
25-45507 |
|
|
|
|
GROMMET |
1 |
|
|
| 29 |
10-32866 |
|
|
|
|
SCREW, (#10-32 x 2.00) Stainless Steel |
4 |
|
|
| 30 |
27-87775 |
|
|
|
|
GASKET |
1 |
|
|
| 31 |
12-20878 |
|
|
|
|
WASHER |
4 |
|
|
| 32 |
11-826709106 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
4 |
|
|
| 33 |
25-45711 |
|
|
|
|
O-RING, (.612 x .103) |
1 |
|
|
| 34 |
23-847724 |
|
|
|
|
BUSHING |
2 |
|
|
| 35 |
12-54012 |
|
|
|
|
WASHER, (.530 x .870 x .105) Stainless Steel |
2 |
|
|
| 36 |
54-75275 |
|
|
|
|
CLAMP |
2 |
|
|
| 37 |
17-85020T |
|
|
|
|
PIN, Pivot |
2 |
|
|
| 38 |
847796 |
|
|
|
|
PIN, Trim |
1 |
|
|
| 39 |
847797 |
|
|
|
|
RETAINER |
1 |
|
|
| 40 |
11-82671317 |
|
|
|
|
NUT, (.500-20) |
1 |
|
|
| 41 |
12-54012 |
|
|
|
|
WASHER, (.530 x .870 x .105) Stainless Steel |
4 |
|
|
| 42 |
12-85022 |
|
|
|
|
WASHER |
2 |
|
|
| 43 |
8M0050911 |
|
|
|
|
TRIM CYLINDER ASSEMBLY |
1 |
|
|
| 44 |
44123 |
|
|
|
|
RETAINER |
1 |
|
|
| 45 |
8185163 |
|
|
|
|
TRIM ROD |
1 |
|
|
| - |
25-11163A1 |
|
|
|
|
REPAIR KIT, Trim Cylinder |
1 |
|
|
| 46 |
NSS |
|
|
|
|
WIPER |
1 |
|
Not Sold Separate |
| 47 |
NSS |
|
|
|
|
BACKUP RING |
1 |
|
Not Sold Separate |
| 48 |
NSS |
|
|
|
|
O-RING |
1 |
|
Not Sold Separate |
| 49 |
NSS |
|
|
|
|
BACKUP RING |
1 |
|
Not Sold Separate |
| 50 |
NSS |
|
|
|
|
O-RING |
1 |
|
Not Sold Separate |
| 51 |
NSS |
|
|
|
|
O-RING |
1 |
|
Not Sold Separate |
| 52 |
NSS |
|
|
|
|
BACKUP RING |
2 |
|
Not Sold Separate |
| 53 |
NSS |
|
|
|
|
O-RING |
1 |
|
Not Sold Separate |
| 54 |
NSS |
|
|
|
|
GREASE HOLE COVER |
1 |
|
Not Sold Separate |
| 55 |
44125 |
|
|
|
|
PISTON, Power Trim |
1 |
|
|
