| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

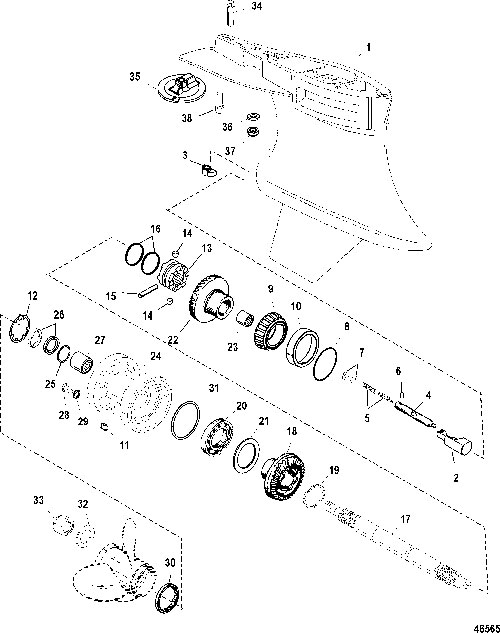

1687-840560A09 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete (1.75) |
1 |
|
|
| 1 |
1687-8M0083306 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic (Does Not Include Studs. Order the Stud 16-59579 listed below) |
1 |
849780A2 |
|
| 2 |
89594A1 |
|
|
|
|
FOLLOWER ASSEMBLY |
1 |
|
|
| 3 |
789562 |
|
|
|
|
SHIFT CAM |
1 |
|
|
| 4 |
79911A1 |
|
|
|
|
ROD |
1 |
|
|
| 5 |
24-79910 |
|
|
|
|
SPRING |
2 |
|
|
| 6 |
17-8M0084245 |
|
|
|
|
PIN |
1 |
78906 |
|
| 7 |
12-78910 |
|
|
|
|
WASHER |
2 |
|
|
| 8 |
15-47397A1 |
|
|
|
|
SHIM SET |
AR |
|
|
| 9 |
31-78172A1 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
|
|
| 10 |
NSS |
|
|
|
|
Cup |
1 |
|
Not Sold Separate |
| 11 |
28-30281 |
|
|
|
|
KEY |
1 |
|
|
| 12 |
14-79447 |
|
|
|
|
TAB WASHER |
1 |
|
|
| 13 |
52-8M0052635 |
|
|
|
|
RATCHET |
1 |
|
|
| 14 |
17-78909 |
|
|
|
|
PIN, Detent |
2 |
|
|
| 15 |
17-42671 |
|
|
|
|
PIN, Cross |
1 |
|
|
| 16 |
24-78962 |
|
|
|
|
SPRING |
2 |
|
|
| 17 |
44-840451A03 |
|
|
|
|
PROPELLER SHAFT |
1 |
|
|
| - |
840389K06 |
|
|
|
|
PROP HUB KIT |
1 |
|
|
| - |
840382A02 |
|
|
|
|
SNUBBER STRIP KIT |
1 |
|
|
| 18 |
43-849189T2 |
|
|
|
|
GEAR CONVERSION KIT |
1 |
|
|
| 19 |
23-822823 |
|
|
|
|
THRUST RING |
1 |
|
|
| 20 |
30-88957T |
|
|
|
|
BEARING, Ball |
1 |
|
|
| 21 |
681001 |
|
|
|
|
RING, Thrust |
1 |
|
|
| 22 |
NSS |
|
|
|
|
REVERSE GEAR, 1.75 |
1 |
|
Not Sold Separate |
| 23 |
31-549281 |
|
|
|
|
BEARING, Roller |
1 |
|
|
| 24 |
848840A1 |
|
|
|
|
CARRIER ASSEMBLY, Bearing |
1 |
|
|
| 25 |
53-817071 |
|
|
|
|
RING, Snap |
2 |
|
|
| 26 |
26-815565 |
|
|
|
|
SEAL, Oil |
2 |
|
|
| 27 |
31-817072 |
|
|
|
|
BEARING, Roller |
1 |
|
|
| 28 |
22-8M0058389 |
|
|
|
|
PLUG KIT, Drain - Magnetic |
1 |
67892A06 |
|
| 29 |
12-191833 |
|
|
|
|
SEAL |
1 |
|
|
| 30 |
8M2011027 |
|
|
|
|
RETAINER, Bearing Carrier |
1 |
|
|
| 31 |
25-31534 |
|
|
|
|
O-RING |
1 |
|
|
| 32 |
12-85344 |
|
|
|
|
WASHER, (.750 Inside Diameter) |
1 |
|
|
| 33 |
11-52707Q1 |
|
|
|
|
PROP NUT KIT, (.750-16) |
1 |
|
|
| 34 |
10-41350 |
|
|
|
|
SCREW, (.437-14 x 2.50) Stainless Steel |
1 |
|
|
| 35 |
76214T3 |
|
|
|
|
ANODE |
1 |
|
|
| 36 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
3 |
|
|
| 37 |
11-859116 |
|
|
|
|
NUT, (.437-20) |
3 |
|
|
| 38 |
10-30206 |
|
|
|
|
SCREW, (.375-16 x 1.00) Stainless Steel |
1 |
|
|
| - |
26-89238A3 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
| - |
16-59579 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.812) |
3 |
|
|
